Relay Protection Tester
>
Three 3 Phase Relay Protection Calibrator Secondary Current Injection Test Set Perfect

Three 3 Phase Relay Protection Calibrator Secondary Current Injection Test Set Perfect

Product Details:
Place of Origin: Xi'an, Shaanxi, China
Brand Name: XZH TEST
Certification: ISO,CE
Model Number: XHJB634
Detail Information
Place of Origin:
Xi'an, Shaanxi, China
Brand Name:
XZH TEST
Certification:
ISO,CE
Model Number:
XHJB634
Model NO.:
XHJB634
Current Output:
Single Phase 3*40A, Three Phase 120A
Customized:
Customized
Transport Package:
Exported Wooden Case
Trademark:
XZH TEST
Origin:
China
HS Code:
9030899090
Supply Ability:
2000PCS/Year
Customization:
Available
After-sales Service:
Warranty Certificate
Warranty:
12 Months
Trading Information
Minimum Order Quantity:
1 unit
Packaging Details:
wooden case
Delivery Time:
5-8 days
Payment Terms:
T/T
Supply Ability:
2000 PCS/Year
Product Description


Xzh Three 3 Phase Relay Protection Calibrator Secondary Current Injection Test Set Perfect

Three 3 Phase Relay Protection Calibrator Secondary Current Injection Test Set Perfect 0

Product features

1.High performance Industrial control computer is adopted as the controlling computer, through which you can run the windows operating system directly.
2.8.4"LCD display, tracking ball and optimized keyboard are allocated on the faceplate of this tester, which can be used without the external mouse and keyboard.
3.USB interface, 10-100M net mouth and serial communication interface are located on the back plate of this tester, through which you can access data, communicate data and upgrade software conveniently.

4.The whole process and the result of the test will all be showed on the LCD.
5.The English operational interface of the complete set is very friendly and convenient.
6.The tracking ball and keyboard on the faceplate will implement the operation. The operation is simple and convenient, and is easy to be
mastered. Operator only needs a little knowledge of computer.
7.Keyboard and mouse interface are also allocated on the faceplate. If you would like to use the external mouse and keyboard, through pluging them
with corresponding interfaces, you can operate this tester just like operate a desk-top computer.

Technical parameters


AC current output

Output accuracy
0.2 level
Phase current output (effective value) 0~40A
Triple current output (effective value)
0~120A
Long-term allowable working value of phase current (effective value)
10A
Maximum output power of phase current
420VA
Maximum output power at the maximum output of triple parallel current
900VA
Allowable working time at maximum output of triple parallel current:
10s
Frequency range (fundamental wave)
20~1000Hz
Harmonic frequency
1~20 times
DC current output
Output accuracy
0.2 level
Current output
0~±10A / each phase, 0~±30A / triple parallel
Maximum output load voltage
20V
AC voltage output
Output accuracy
0.2 level
Phase voltage output (effective value)
0~120V
Line voltage output (effective value)
0~240V
Phase voltage/line voltage output power
80VA / 100VA
Frequency range (fundamental wave)
20~1000Hz
Harmonic frequency
1~20 times
DC voltage output
Output accuracy
0.2 level
Phase voltage output amplitude
0~±160V
Line voltage output amplitude
0~±320V
Phase voltage/line voltage output power
70VA / 140VA
Switch quantity and time measurement
Industrial Control Type Remarks

Switch input 8 channels Empty contact:
1~20mA, 24V
Potential contact access:
"0": 0~ +6V; "1": +11 V~ +250V
Switch output 4 pairs DC:
220V/0.2A; AC: 220V/0.5A
Time measurement Measuring range
0.1ms ~ 9999s Measuring accuracy 0.1mS
volume and weight
Dimensions
410×360×200mm³
Single machine weight
20kg
Power supply
AC 220V±10%, 50/60Hz
Ambient temperature
-10ºC ~ +50ºC


Three 3 Phase Relay Protection Calibrator Secondary Current Injection Test Set Perfect 1
Three 3 Phase Relay Protection Calibrator Secondary Current Injection Test Set Perfect 2

Accessories
With USB data cable, it can be directly connected to the computer and the data can be analyzed on the computer.


Three 3 Phase Relay Protection Calibrator Secondary Current Injection Test Set Perfect 3

Package: Standard wooden case filled with foam

Three 3 Phase Relay Protection Calibrator Secondary Current Injection Test Set Perfect 4
Three 3 Phase Relay Protection Calibrator Secondary Current Injection Test Set Perfect 5

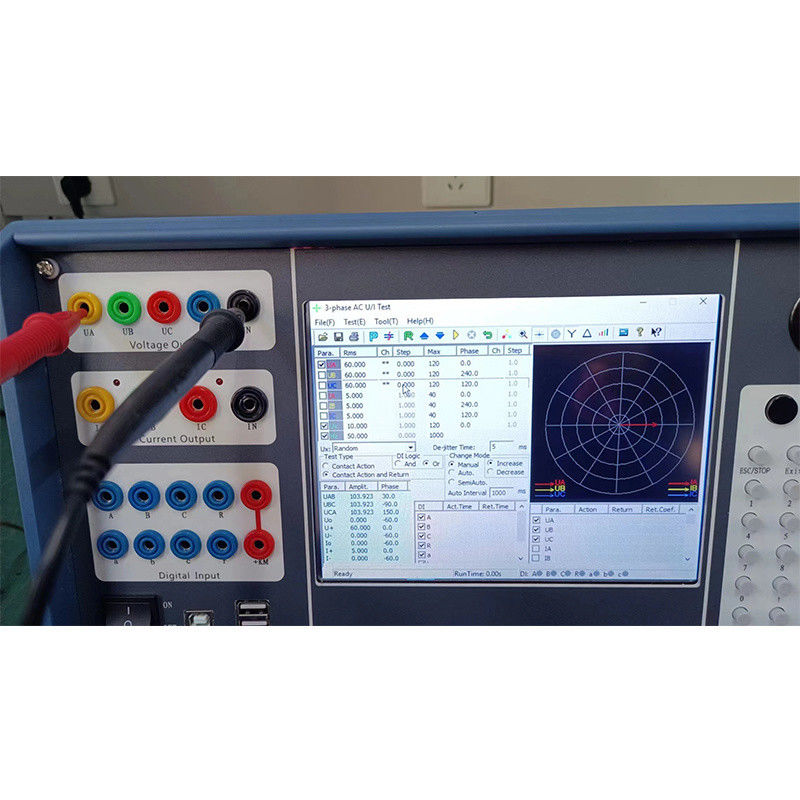

Customer test
