XHDJ706 Digital Earth Resistance Soil Resistivity Tester
XHDJ706 Digital Earth Resistance Soil Resistivity Tester
  • XHDJ706 Digital Earth Resistance Soil Resistivity Tester
  • XHDJ706 Digital Earth Resistance Soil Resistivity Tester
  • XHDJ706 Digital Earth Resistance Soil Resistivity Tester
  • XHDJ706 Digital Earth Resistance Soil Resistivity Tester
  • XHDJ706 Digital Earth Resistance Soil Resistivity Tester
  • XHDJ706 Digital Earth Resistance Soil Resistivity Tester

XHDJ706 Digital Earth Resistance Soil Resistivity Tester

Product Details:
Certification: ISO
Detail Information
Certification:
ISO
Model NO.:
XHDJ706
Transport Package:
Carton Box Or Wooden Case
Trademark:
XZH TEST
Origin:
China
Supply Ability:
2000PCS/Year
Customization:
Available
After-sales Service:
Warranty Certificate
Warranty:
12 Months
Highlight:

High Light

Highlight:

digital earth resistance tester

,

soil resistivity tester with warranty

,

ground tester for soil measurement

Product Description
XHDJ706 Digital Earth Resistance Soil Resistivity Tester
Product Specifications
Attribute Value
Model NO. XHDJ706
Transport Package Carton Box or Wooden Case
Trademark XZH TEST
Origin China
Supply Ability 2000PCS/Year
Customization Available
After-sales Service Warranty Certificate
Warranty 12 Months
Product Overview

The XHDJ706 Digital Earth Resistance Soil Resistivity Tester is specially designed for measuring earth resistance, soil resistivity, earth voltage, and AC voltage. Utilizing advanced digital and micro-processing technology, it ensures high precision and reliability for prolonged measurements.

XHDJ706 Digital Earth Resistance Soil Resistivity Tester 0 XHDJ706 Digital Earth Resistance Soil Resistivity Tester 1 XHDJ706 Digital Earth Resistance Soil Resistivity Tester 2 XHDJ706 Digital Earth Resistance Soil Resistivity Tester 3
Key Features
  • Measures 2/3/4-pole earth resistance, soil resistivity, earth voltage, and AC voltage
  • Advanced FFT and AFC technology for anti-interference capability
  • Large LCD display with blue backlight and bar graph indication
  • Stores up to 300 sets of data with historical inquiry capability
  • Real-time monitoring through monitoring software
  • Wide application in power, telecommunications, meteorology, oil fields, and more
Technical Specifications
Power Supply: DC 9V (6 x 1.5V R14S batteries, 300 hours standby)
Measurement Range: Earth Resistance: 0.00Ω-30.00kΩ | Soil Resistivity: 0.00Ωm-9000kΩm
Measuring Modes: Precise 4-pole, 3-pole, and simple 2-pole measurement
Weight: Tester: 1443g (with battery) | Complete set: 4.5kg
Operating Conditions: -10ºC to 40ºC, below 80% humidity
Safety Standards: IEC61010-1, IEC61557-1, IEC61557-5, JJG 366-2004 compliant

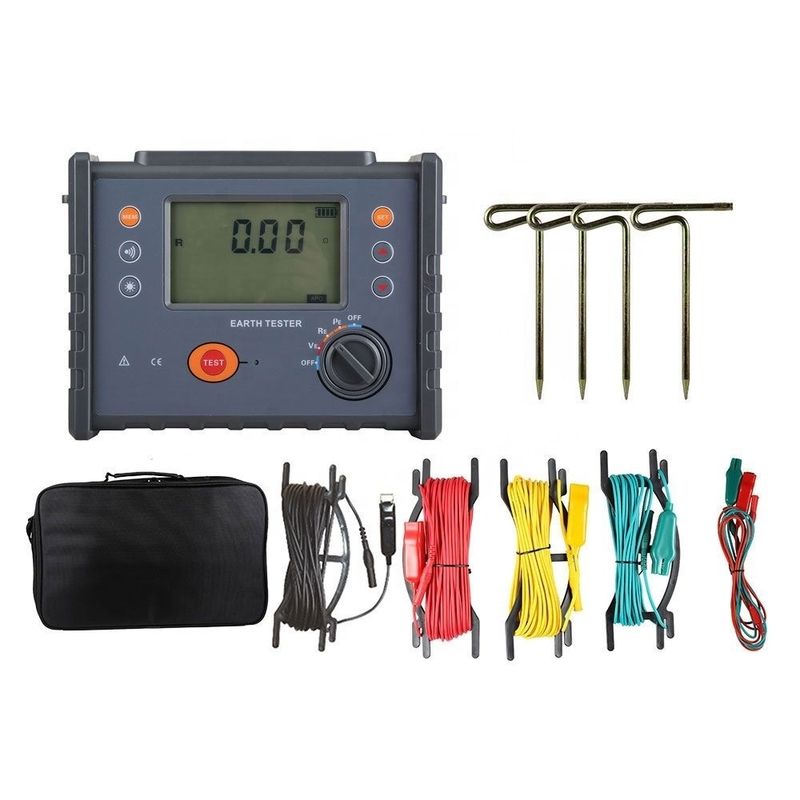

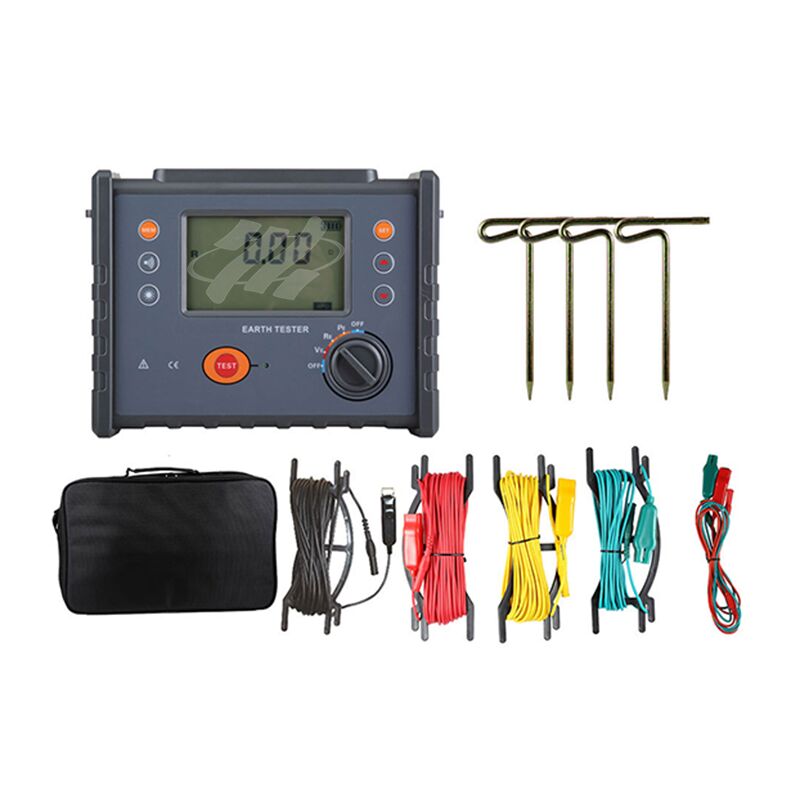

Package Contents
  • Host machine
  • Monitoring software
  • Testing wires
  • Auxiliary ground pillars (4 pieces)
  • Communication wires
