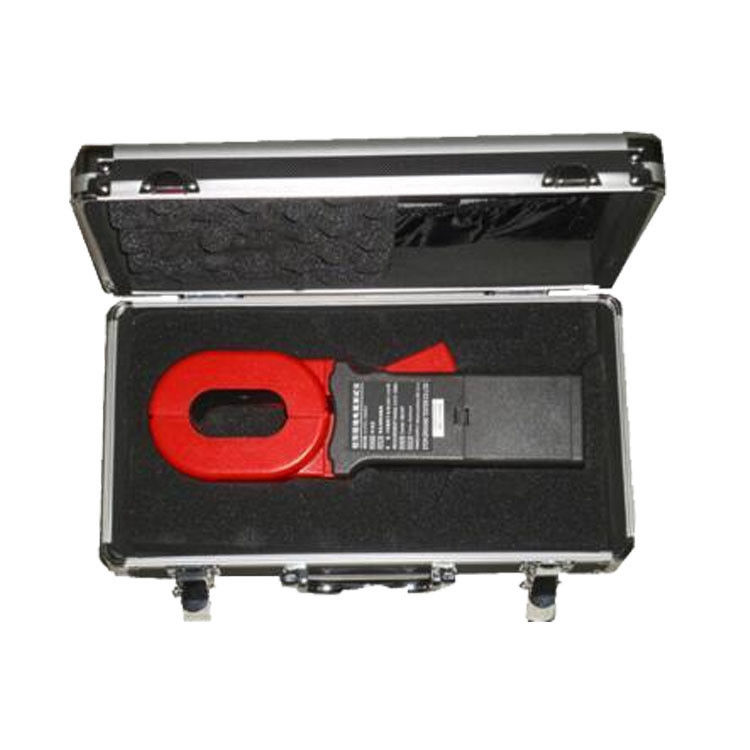

XHDQ703 Single Clamp Ground Resistance Tester 0.01-1200Ω
XHDQ703 Single Clamp Ground Resistance Tester 0.01-1200Ω
  • XHDQ703 Single Clamp Ground Resistance Tester 0.01-1200Ω

XHDQ703 Single Clamp Ground Resistance Tester 0.01-1200Ω

Product Details:
Place of Origin: China
Brand Name: XZH Test
Certification: CE/ISO
Model Number: XHDQ703
Detail Information
Place of Origin:
China
Brand Name:
XZH Test
Certification:
CE/ISO
Model Number:
XHDQ703
Model NO.:
XHDQ703
Power:
Electricity
Customized:
Customized
Color:
Black
Transport Package:
Exported Wooden Case
Specification:
285mm*85mm*56mm
Trademark:
XZH TEST
Origin:
China
Supply Ability:
2000PCS/Year
Customization:
Available
After-sales Service:
After Sale Serive
Warranty:
12 Months
Highlight:

High Light

Highlight:

single clamp ground resistance tester

,

ground resistance tester 0.01-1200Ω

,

ground tester with clamp

Trading Information
Minimum Order Quantity:
1unit
Packaging Details:
wooden box
Delivery Time:
5-8work days
Payment Terms:
T/T
Supply Ability:
2000unit/year
Product Description
XHDQ703 Single Clamp Earthing Ground Resistance Tester
Product Attributes
Attribute Value
Model NO. XHDQ703
Power Electricity
Customized Customized
Color Black
Transport Package Exported Wooden Case
Specification 285mm*85mm*56mm
Trademark XZH TEST
Origin China
Supply Ability 2000PCS/Year
Customization Available
After-sales Service After Sale Service
Warranty 12 Months
Product Description
Ground resistance tester and loop resistance tester
Safer and faster testing of loop resistance systems - no need to disconnect ground wires or use auxiliary electrodes
Short boot time (0.5 seconds) with instantaneous operation
Automatically identifies interference signals and features automatic transmission
Includes sound and light alarms with RS232 interface
Main Specifications
Resistance Range: 0.01-1200Ω
Resistance Resolution: 0.001Ω
Resistance Accuracy: ±1%±0.01Ω
Data Memory: 99 Sets
Alarm Threshold Setting Range: 1-199Ω
Working Temperature/Humidity: -20°C-55°C; 20%RH-90%RH
LCD Screen: 4-digit display (47mm×28.5mm)
Clamp Size: 65mm×32mm
Clamp Opening: Extends to 32mm
Weight: 1160g (including batteries)
Dimensions: 285mm×85mm×56mm
Testing Range and Accuracy
Measurement Mode Testing Range Resolution Accuracy
Resistance 0.010Ω-0.099Ω 0.001Ω ±(1%+0.01Ω)
Resistance 0.10Ω-0.99Ω 0.01Ω ±(1%+0.01Ω)
Resistance 1.0Ω-49.9Ω 0.1Ω ±(1%+0.1Ω)
Resistance 50.0Ω-99.5Ω 0.5Ω ±(1.5%+0.5Ω)
Resistance 100Ω-199Ω 1Ω ±(2%+1Ω)
Resistance 200Ω-395Ω 5Ω ±(5%+5Ω)
Resistance 400-590Ω 10Ω ±(10%+10Ω)
Resistance 600Ω-880Ω 20Ω ±(20%+20Ω)
Resistance 900Ω-1200Ω 30Ω ±(25%+30Ω)
Current 0.00mA-9.95mA 0.05mA ±(2.5%+1mA)
Current 10.0mA-99.0mA 0.1mA ±(2.5%+5mA)
Current 100mA-300mA 1mA ±(2.5%+10mA)
Current 0.30A-2.99A 0.01A ±(2.5%+0.1A)
Current 3.0A-9.9A 0.1A ±(2.5%+0.3A)
Current 10.0A-20.0A 0.1A ±(2.5%+0.5A)
Technical Specifications
Resistance Testing Range 0.01Ω-1200Ω
Resistance Resolution 0.001Ω
Current Resolution 0.05mA
Alarm Threshold Setting Range (Resistance) 1-199Ω
Current 1-499mA
Power 6VDC (4 LR6 Alkaline batteries)
Working Temperature/Humidity -20ºC-55ºC;10%RH-90%RH
Display 4-digit LCD (47mm×28.5mm)
Clamp Size 65mm×32mm
Clamp Opening Size Extends to 32mm
Weight 1160g (with battery)
Dimensions 285mm×85mm×56mm
Explosion-proof Mark Exia II BT3 Ga
Protection Level Double insulation
Structural Features Clamp CT
Shift Automatic gear shift
External Magnetic/Electric Field < 40A/m; < 1v/m
Single Measurement Time 0.5 sec
Resistance Measurement Frequency > 1 KHz
Current Frequency Under Test 50/60Hz automatic
XHDQ703 Single Clamp Earthing Ground Resistance Tester - Front View XHDQ703 Single Clamp Earthing Ground Resistance Tester - Side View
