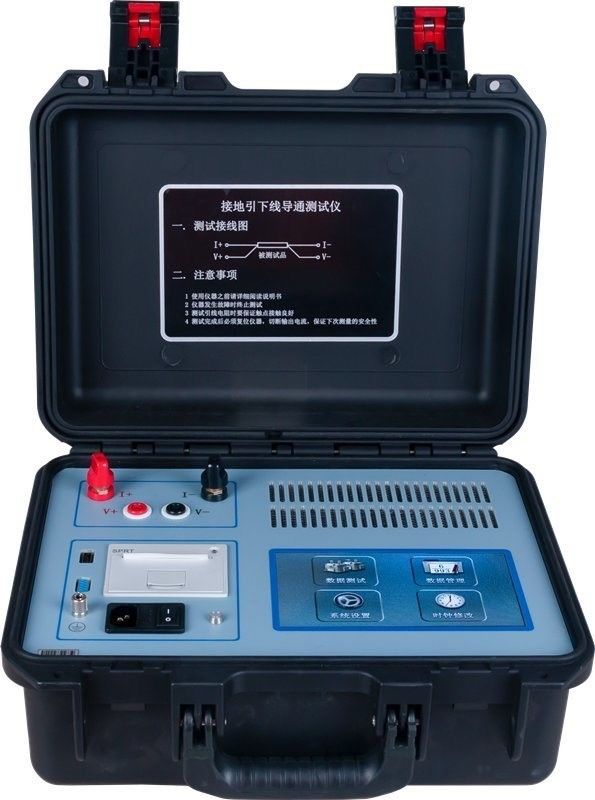

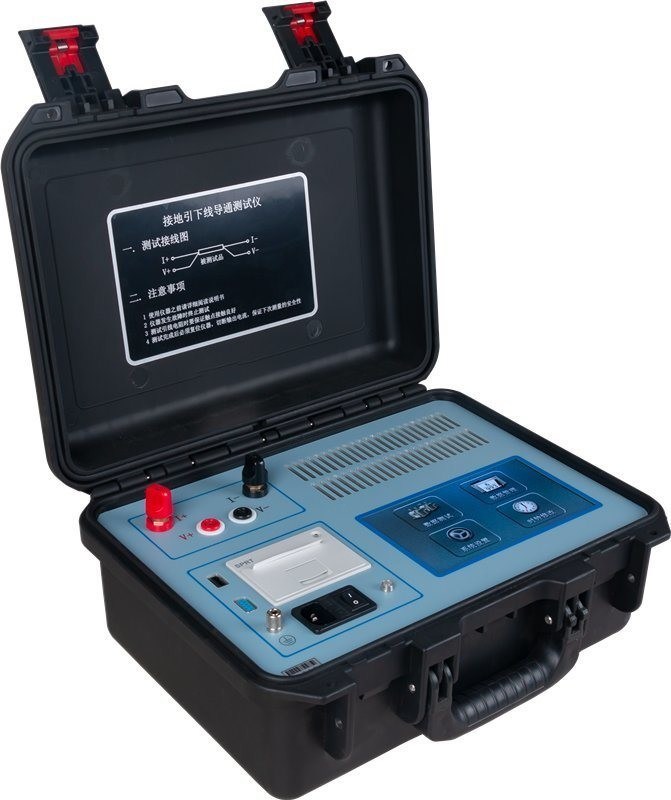

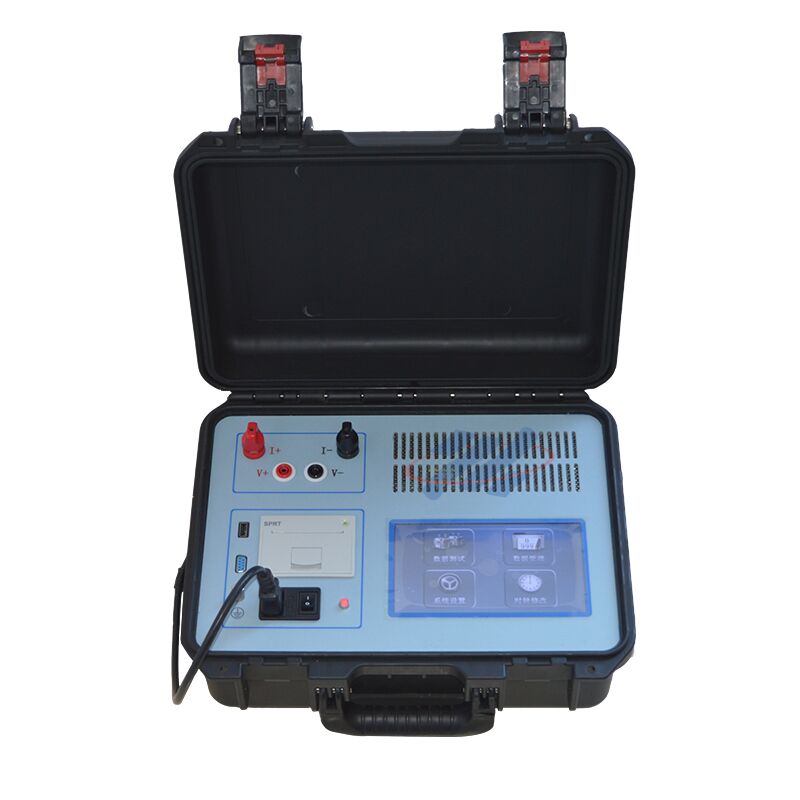

XHDT702 Grounding Conductor Tester with 10A 1A Auto Shift

Name: XHDT702 Grounding Conductor Tester with 10A 1A Auto Shift
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
Price: 440.00 USD
Availability: InStock

Product Details:

Detail Information

Model NO.:

XHDT702

Customized:

Customized

Output Current:

10A,1A Automatic Shift

Measuring Range:

10A:1momega;~2omega; 1A:2omega;~20omega;

Transport Package:

Wooden Box With Foam Inside

Trademark:

XZH TEST

Origin:

China Xi′an

Supply Ability:

1000pieces/Year

Customization:

Available

Warranty:

12 Months

Test Mode:

Saved Test

Highlight:

High Light

Highlight:

grounding conductor tester 10A auto shift

ground tester with 1A measurement

auto shift grounding tester 10A

Product Description

Grounding Conductor Tester XHDT702 with Accurate Measuring Range -2Ω

Product Specifications

Attribute	Value
Model NO.	XHDT702
Customized	Customized
Output Current	10A,1A Automatic Shift
Measuring Range	10A:1mΩ~2Ω; 1A:2Ω~20Ω
Transport Package	Wooden Box with Foam Inside
Trademark	XZH TEST
Origin	China Xi'an
Supply Ability	1000pieces/Year
Customization	Available
Warranty	12 Months
Test Mode	Saved Test

Product Description

XHDT702 Grounding Down Conductor Tester is specially designed for down conductors. The connection between the ground down conductors of power equipment and the ground network is the fundamental guarantee for the safe operation of power equipment. During long-term operation, these connections may be affected by factors such as moisture, causing joints to rust or break, which increases resistance and creates potential safety hazards.

Key Features

High-speed microcontroller control for automation and easy operation
Advanced power supply technology with multiple current ranges
Intelligent power management for reduced heat and energy savings
High-resolution 65K true color LCD display visible in strong light
Built-in data storage for 1000 test records
Integrated lithium battery with built-in charger

Technical Parameters

Output current: 1A, 3A, 5A, 10A
Resolution: 0.1μΩ
Range: 10mΩ-10Ω (1A Grade)
Range: 5mΩ-3Ω (3A Grade)
Range: 1mΩ-2Ω (5A Grade)
Range: 0.8mΩ-0.8Ω (10A Grade)
Accuracy: ± (0.5% ± 2 words)
Operating temperature: 0~40°C
Operating humidity: <90% RH, no condensation
