Multifunctional Portable Classic Underground Cable Fault Pipe Locator Cable Route Tracer

Multifunctional Portable Classic Underground Cable Fault Pipe Locator Cable Route Tracer

Product Details:
Place of Origin: Xi'an, Shaanxi, China
Brand Name: XZH TEST
Certification: CE
Model Number: XHLJ504
Detail Information
Place of Origin:
Xi'an, Shaanxi, China
Brand Name:
XZH TEST
Certification:
CE
Model Number:
XHLJ504
Function:
Cable Route Tracing & Cable Fault Pinpointing
Output Signal:
Intermittent: 0~50Vpp
Output Power:
100W
Output Current:
0~2A
Output Frequency:
15kHz Intermittent
Receiving Mode:
Magnetic Sound Synchronization
Receiving Frequency:
Audio Frequency
Magnification:
50,0000 Times
Output Impedance:
350Ω
Quiescent Current:
Less Than 10m A
Operating Temperature:
-10 ~ 55°C
Trading Information
Minimum Order Quantity:
1 unit
Packaging Details:
Wooden case
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
1000 units/month
Product Description

Multifunctional Portable Classic Underground Cable Fault Pipe Locator Cable Route Tracer 0

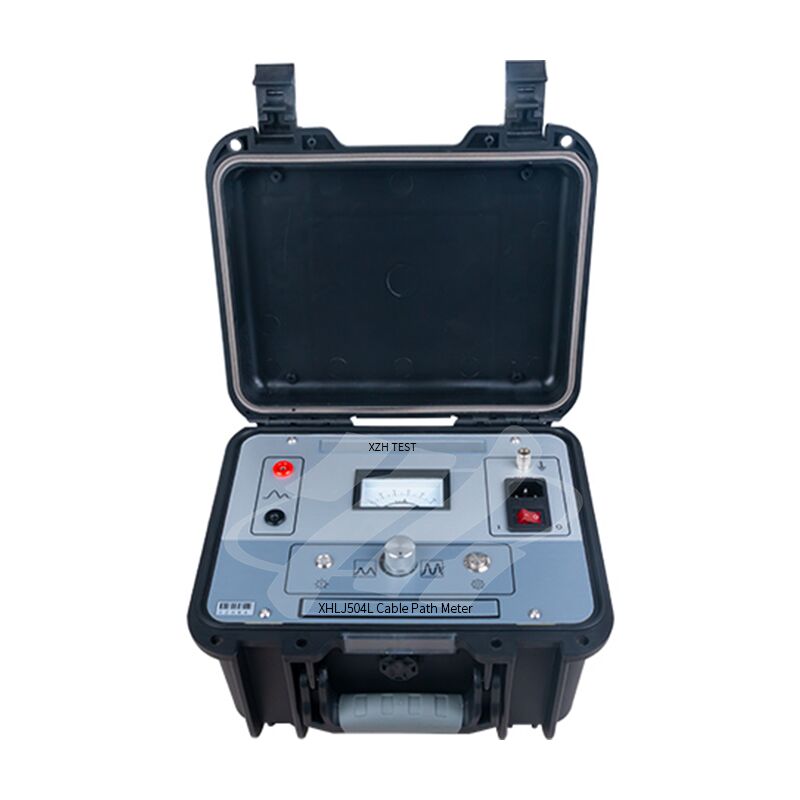

The XHLJ504 cable route tracer(cable pipe locator) is composed of a high-power path signal generator(transmitter) and receiver required for detecting buried cable paths.



The basic principle of the cable path meter is to use a path signal generator (ie, the path meter signal transmitting host) to input a path pulse signal into the cable under test, thereby generating electromagnetic waves, and then receiving them with a probe, and the receiver amplifies the received signal. After processing, the output is sent to the earphone and the pointer meter.



This cable route tracer judges the buried path and depth of the cable according to the sound peaks, sound valleys and the deflection degree of the pointer meter in the earphone.



Multifunctional Portable Classic Underground Cable Fault Pipe Locator Cable Route Tracer 1



Multi-function
The cable path receiver is used in connection with probes and headphones, etc., and can be used as a cable fault pinpointer.

Multifunctional Portable Classic Underground Cable Fault Pipe Locator Cable Route Tracer 2






Main components

This cable pipe locator is mainly composed of transmitter and receiver, the two parts are shown as below.



Multifunctional Portable Classic Underground Cable Fault Pipe Locator Cable Route Tracer 3


Technical Parameters

Transmitter

Output signal 15kHz intermittent
Output power 100W
Output current 0~2A
Working power 220V (1±10%) 50Hz (1±5%);



Receiver

Magnification 500,000 times
Detection accuracy ±0.2m
Output impedance 350Ω
Working power supply two standard 9V batteries
Quiescent current <10mA




Product Features


1. Using the traditional electromagnetic induction principle, strong anti-interference ability.


2. With over-current and short-circuit protection functions, it is safe and reliable.


3. High power output, not limited by cable length, open circuit can also find a path.


4. The output is steplessly adjustable, suitable for various test sites, with strong adaptability.


5. Super strong magnification, the detection depth is greater than 10 meters.


6. Ultra-low power consumption design, the quiescent current is less than 10mA.


7. The design of the analog meter, the signal strength and trend are clear at a glance.


8. The zero level can be adjusted arbitrarily, which is suitable for all kinds of strong and weak scenes.



Multifunctional Portable Classic Underground Cable Fault Pipe Locator Cable Route Tracer 4



Multifunctional Portable Classic Underground Cable Fault Pipe Locator Cable Route Tracer 5


On-site cable path test --indication diagram

Multifunctional Portable Classic Underground Cable Fault Pipe Locator Cable Route Tracer 6



General route detect connecting wire diagram



Multifunctional Portable Classic Underground Cable Fault Pipe Locator Cable Route Tracer 7

Super-length or breaking cable route detection wiring diagram



Multifunctional Portable Classic Underground Cable Fault Pipe Locator Cable Route Tracer 8

Special route detection wiring diagram







Test buried depth of the cable

When you judge the buried depth of the cable, you can place the probe at an angle of 45 degrees with the ground on the position of the cable that has been measured, "move outward" perpendicular to the path. Find the most minor sound point in the middle of the probe, then the distance the probe moves is the buried depth of the cable. For the above operation essentials, please refer to the schematic diagram of probe placement in the following figure.

Multifunctional Portable Classic Underground Cable Fault Pipe Locator Cable Route Tracer 9





Schematic diagram of probe placement
