XZH TEST XHGG510 Cable Fault Simulation System for Open circuit Short circuit High resistance Low resistance

XZH TEST XHGG510 Cable Fault Simulation System for Open circuit Short circuit High resistance Low resistance

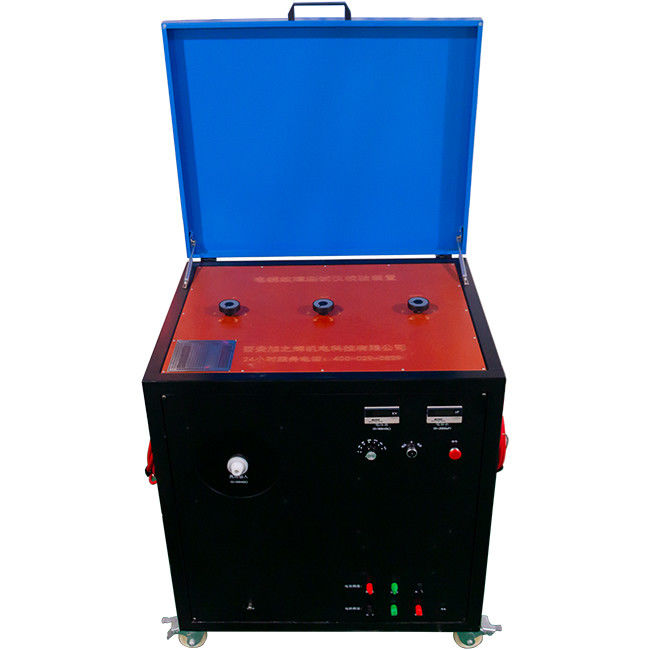

XHGG510 cable fault simulation system can simulate all types of power cable faults such as open circuit, short circuit, high resistance, low resistance, flashover, leakage, joint, etc. It is mainly used for training power cable detection personnel in various industries.

Main functions

1. 12.1-inch industrial all-in-one machine with centralized control and touch screen operation;

2. Can simulate near-end and far-end low-resistance fault waveforms;

3. Can simulate near-end and far-end short-circuit fault waveforms;

4. Can simulate near-end and far-end open-circuit fault waveforms;

5. Can simulate near-end and far-end leakage high-resistance fault waveforms;

6. Can simulate near-end and far-end flashover high-resistance fault waveforms;

7. Can simulate intermediate joints and T-type, X-type joint waveforms;

8. All fault simulations, no manual switching, just select the combined fault type, the device automatically completes the internal fault simulation conversion, to achieve true intelligence.

9. This device has VGA output and can be connected to various display devices.

Technical parameters

1. The number of simulated fault waveforms is not less than 40

2. Near-end faults are tens of meters, and far-end faults are hundreds of meters

3. Low-resistance fault simulator: 0 ohm~hundred ohm level

4. Open circuit fault simulator: G ohm~infinity

5. Leakage high-resistance fault simulator: k ohm level~hundred M ohm level

6. Flashover high-resistance fault simulator: flashover voltage range is several kV~tens of kV

7. 2500V megohmmeter insulation resistance
a. Open circuit state is greater than 1.5GΩ
b. Short circuit state: 0 MΩ
c. Low resistance state is about 5MΩ
d. Leakage state is about 2MΩ
e. Flashover state is about 1GΩ

8. Rated voltage of simulated cable: DC 35kV

9. Remote control distance: 10 meters

10. Continuous working time: 8 hours

11. Cabinet size: 860mm long × 660mm wide × 2030mm high

12. Cabinet weight: 300KG

13. Use conditions:
a. Ambient temperature -30℃~ +70℃
b. Relative temperature RH≤85% (25℃)
c. Altitude h≤1000m
