XHGG502 TDR Cable Fault Locator for Underground Power Cables

Name: XHGG502 TDR Cable Fault Locator for Underground Power Cables
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHGG502
Price: 1,550.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE, ISO
Model Number:	XHGG502

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE, ISO

Model Number:

XHGG502

Model NO.:

XHGG502

Customized:

Customized

Color:

Black

Transport Package:

Wooden Box With Foam Inside

Trademark:

XZH TEST

Origin:

China Xi′an

Supply Ability:

1000pieces/Year

Customization:

Available

After-sales Service:

Warranty

Warranty:

1 Year

Highlight:

High Light

Highlight:

TDR Cable Fault Locator

Signal Filtering TDR Cable Fault Locator

Underground Cable Fault Locator

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

1000 units per year

Product Description

TDR Underground Cable Fault Locator with Modern Signal Filtering Technology

Product Specifications

Model NO.	XHGG502
Customization	Available
Color	Black
Transport Package	Wooden Box with Foam Inside
Trademark	XZH TEST
Origin	China Xi'an
Supply Ability	1000 pieces/Year
After-sales Service	Warranty
Warranty	1 Year

Product Overview

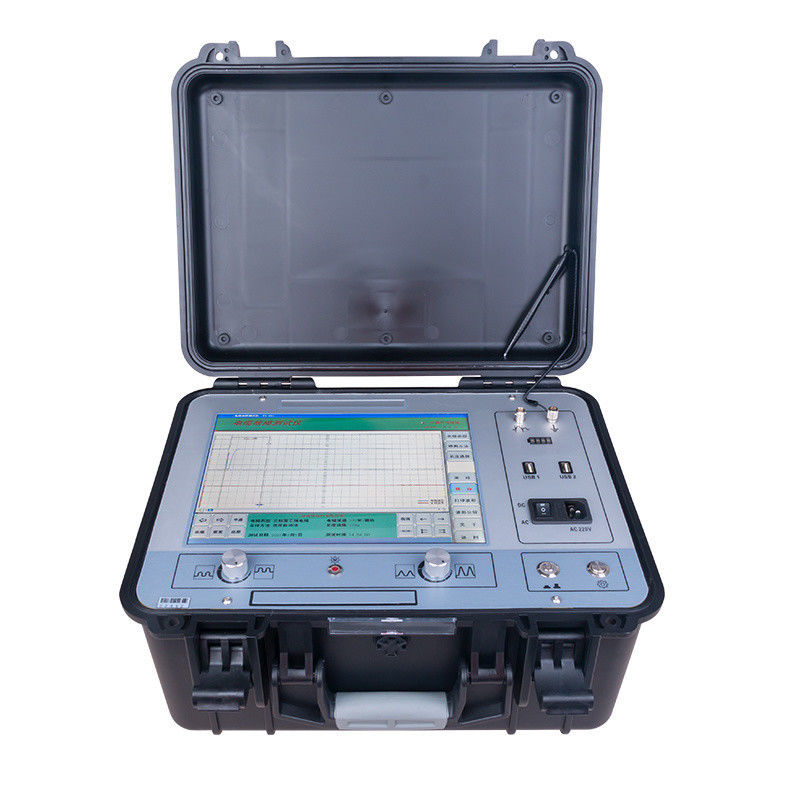

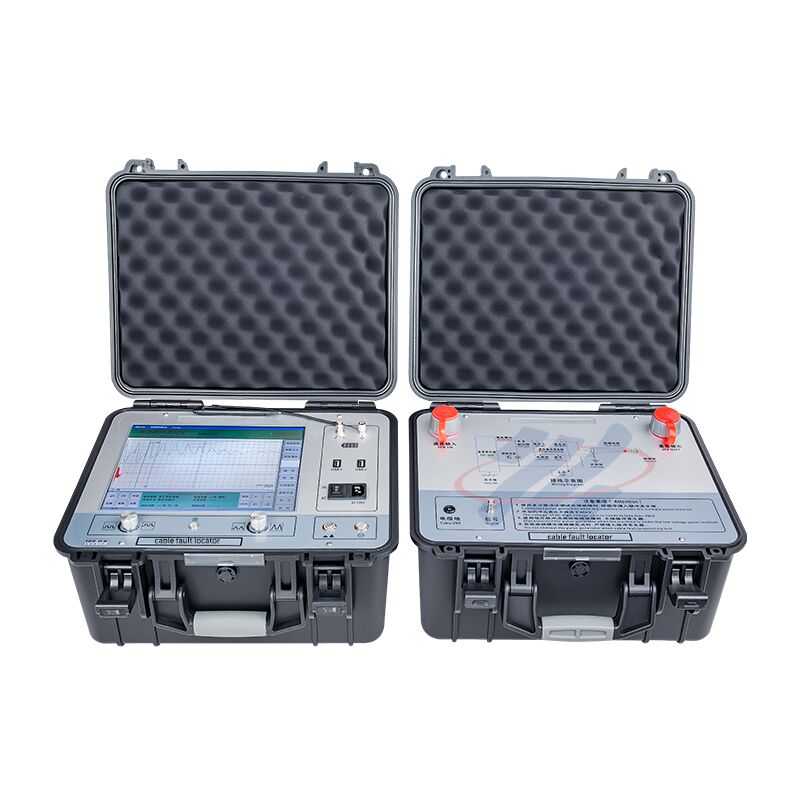

The XHGG502 TDR underground cable fault locator features an industrial-grade 12.1-inch touch all-in-one computer with intuitive operating software for efficient human-computer interaction testing. Built with industrial-grade integrated circuits and components, it includes a large-capacity lithium-ion battery for stable, reliable operation.

This specialized instrument measures and analyzes power cable status and fault distance using modern electronic technology combined with computer processing for signal filtering, data acquisition, processing, and graphical display/analysis.

Key Applications

Detects low-resistance, short-circuit, open-circuit, and disconnection faults in power cables
Identifies high-resistance leakage and high-resistance flashing network failures
Works with various cable types including high-frequency coaxial, street light, and buried wires
Compatible with cables of different sections and media materials

Technical Parameters

Product Name	Underground cable fault pre-locator (TDR)
Main Function	Underground cable fault rough distance measurement
Data Sampling Rate	60MHz, 120MHz, 240MHz, 400MHz
Test Distance	>60Km
Test Cable Length Settings	<1Km (short); <3Km (medium); >3Km (long)
Pulse Amplitude	400Vpp
Pulse Width	0.1μS and 2μS
Reading Resolution	0.1m
System Test Accuracy	<0.5m
Pulse Coupler Withstand Voltage	38kVDC
Working Conditions	-25°C to +55°C, 85% RH, 750±30mmHg
Measuring Methods	Low-voltage pulse, high-voltage flashover, multiple pulse

Testing Capabilities

The XHGG502 ARC Cable Fault Pre-Locator accurately detects main insulation failures in power cables up to 35KV, calibrates cable length, and provides rough fault distance measurements using three advanced methods:
