Accurate Fault Location Cable Fault Locator with Unique Location

Name: Accurate Fault Location Cable Fault Locator with Unique Location
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDD503C
Price: 1,050.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE ISO
Model Number:	XHDD503C

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE ISO

Model Number:

XHDD503C

Highlight:

High Light

Highlight:

Synchronized Acoustic Magnetic Cable Fault Locator

Unique Accurate Cable Fault Locator

Trading Information

Minimum Order Quantity:

1set

Packaging Details:

wooden box

Delivery Time:

5-8work days

Payment Terms:

T/T

Supply Ability:

2000unit/year

Product Description

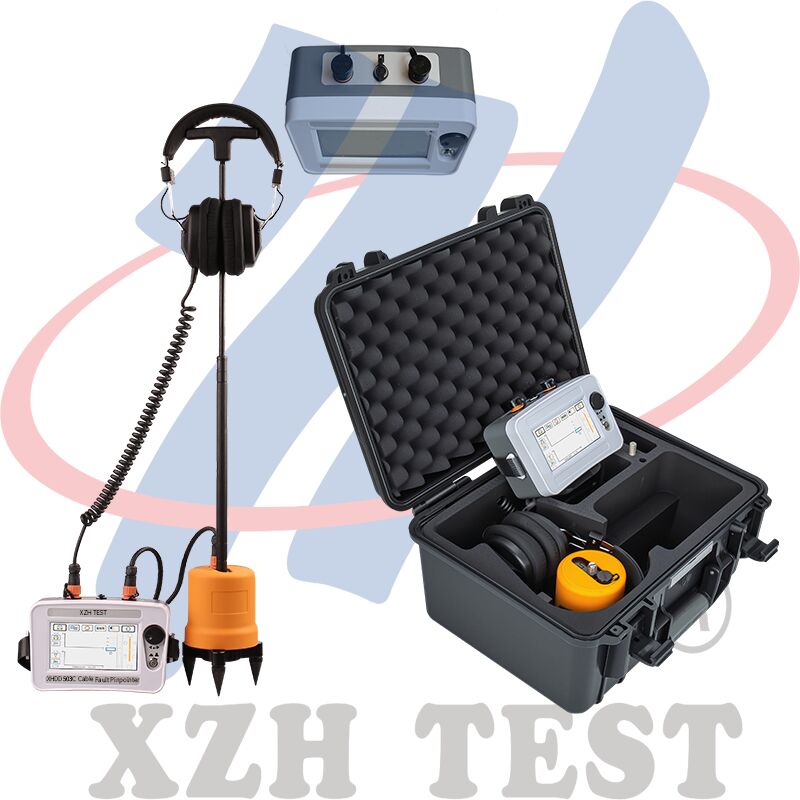

XHDD503C underground cable fault pinpoint locator

Introduction

The cable fault location instrument, a powerful tool, uses the acoustic-magnetic synchronization method to accurately locate power cable fault points.

The electronic flashover from the impact discharge generator is detected and amplified by a specialized probe, with fault location determined via auditory and visual judgment.

Within a rough measurement range, it completes precise positioning, collects the acoustic-magnetic signal time difference,

integrates advanced positioning technology with path-assisted testing,

and offers multiple test modes and informative prompts for efficient, accurate cable fault location.

Features

1. 5-inch touch-high brightness LCD ensures visibility under sunlight.
2. It has background noise reduction technology and can choose from a variety of filtering methods. It has path deviation indication.
3. Equipped with multi-layer physical isolation signal sensors, waterproof grade IP65. Built-in large-capacity lithium battery, long standby time, equipped with fast charger.
4. Small and lightweight, easy to operate, and simple human-machine interface.

Technical indicators

Output gain	16 levels (0~112db)
Output impedance	350Ω
Power supply	4*18650 standard lithium batteries.
Screen pixels	854-480
Brightness	800nit
Transmission speed unit	0-100ms
Accuracy	1ms
Sound bandwidth	100-1.6khz
Magnetic coil bandwidth	100-20kHZ
Ambient temperature	-25~65℃; Relative humidity: ≤90%.

Packing list

Accurate Fault Location Cable Fault Locator with Unique Location 1

Accurate Fault Location Cable Fault Locator with Unique Location 2
