Professional Cable Fault Sheath Tester for Measuring Distance by Murray Bridge Method

Name: Professional Cable Fault Sheath Tester for Measuring Distance by Murray Bridge Method
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
Price: 1,050.00 USD
Availability: InStock

Product Details:

Detail Information

Highlight:

High Light

Highlight:

Professional Cable Fault Sheath Tester

Cable Fault Tester For Measuring Distance

Sheath Tester For Measuring Distance

Product Description

Product Description

XZH TEST XHHG521B is designed for cable sheath fault locating, high-voltage bridge cable fault tester is designed based on the principle of MURRAY bridge. It can be used to locate the breakdown points of various wire and cable after laying and the defect points with no breakdown but low insulation resistance. Of course, it can also be used to locate the defective points of various cables in the cable factory.

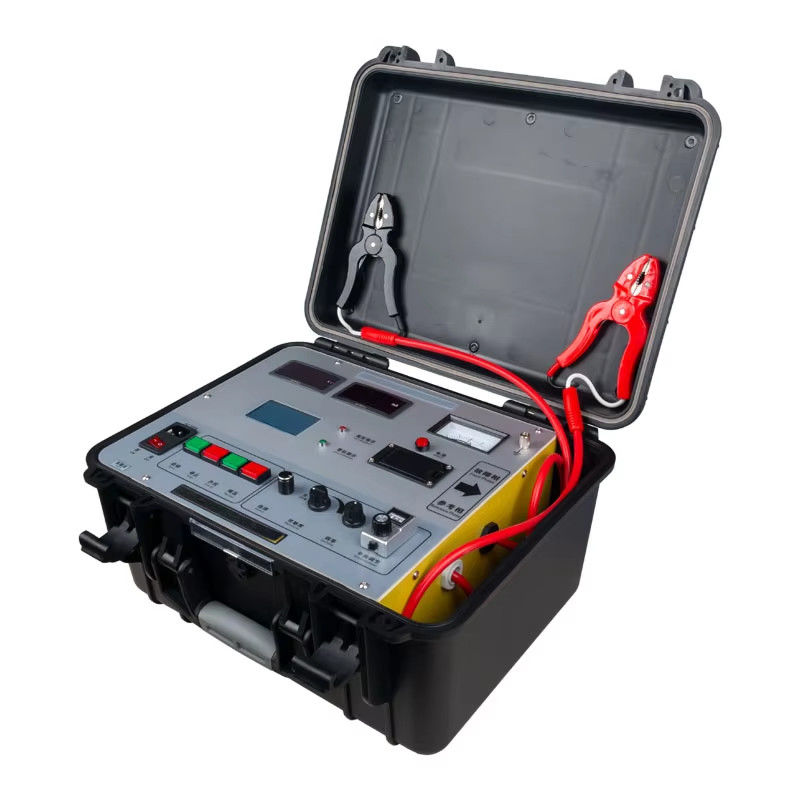

Professional Cable Fault Sheath Tester for Measuring Distance by Murray Bridge Method 0

Function

1.The high-resistance breakdown point of the cable after laying, especially the linear high-impedance breakdown point that
is difficult to fire into low resistance, such as the linear high-resistance breakdown of the middle connector of the cable.
2.Flashover type breakdown point, after the breakdown, the constant current source can maintain the arc, there is a stable current through the bridge, the bridge has sufficient sensitivity.

3. Has not broken down, but the defect point of low resistance, such as the use of megohmmeter found low cable resistance, but the operating voltage does not break down the insulation defect point.

Product name
Cable sheath fault locator XHHG521B

No-load voltage
≥4000V

Short circuit current
≥40mA

Positioning accuracy
± (0.2% · L ± 1) meters

Weight
11kg

Orking power supply
AC 220V+/-10% 50Hz
