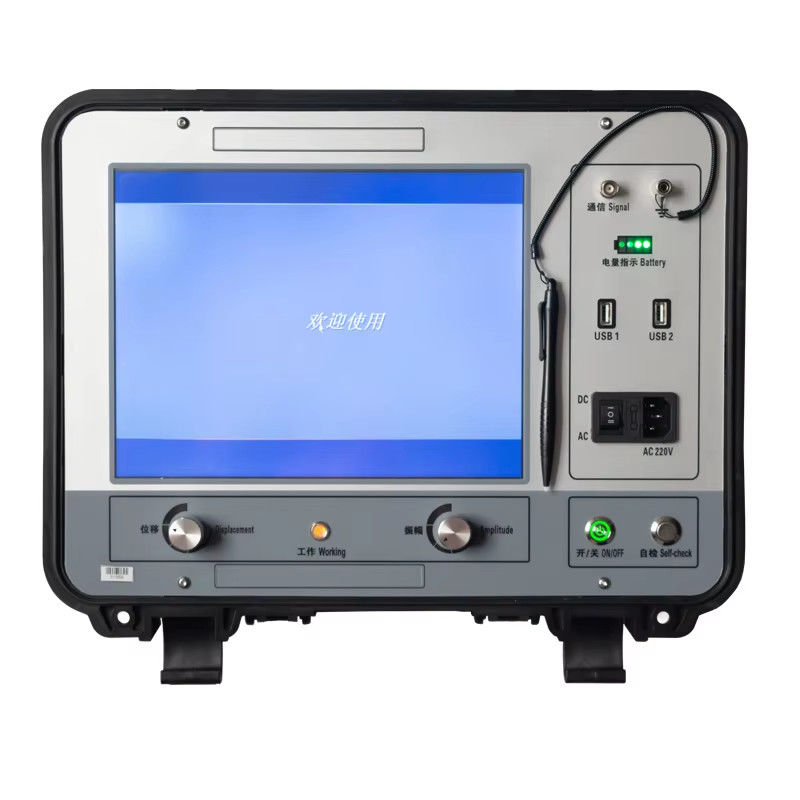

Multiple Pulse ARC with Coupler Windows Operating System Cable Fault Locator

Name: Multiple Pulse ARC with Coupler Windows Operating System Cable Fault Locator
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHGG502
Price: 1,050.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	XZH TEST
Certification:	CE ISO
Model Number:	XHGG502

Detail Information

Place of Origin:

CHINA

Brand Name:

XZH TEST

Certification:

CE ISO

Model Number:

XHGG502

Function:

Cable Fault Distance Test

Keyword:

ARC

Sampling Delay::

1-9X

Test Distance::

≥68km

Resolution::

0.5m

Communication Platform::

Windows Operating Platform

Low Voltage Pulse Width:

0.2uS

Volume And Weight:

Host:430*380*220mm-10kg Coupler :430*380*220mm-10kg

Working Conditions:

Temperature - 25 ℃~+65 ℃, Relative Humidity 85%,

Highlight:

High Light

Highlight:

Operating System Cable Fault Locator

Coupler Cable Fault Locator

Cable Fault Locator

Trading Information

Minimum Order Quantity:

Packaging Details:

Wooden box packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Product Description

Multiple Pulse ARC with Coupler Windows Operating System Cable Fault Locator 0

Multiple Pulse ARC with Coupler Windows Operating System Cable Fault Locator 1

Data sampling rate	60MHz, 120 MHz, 240MHz, 400MHz;
Pulse amplitude	400Vpp
Pulse width	0.1uS and 2uS
Measuring distance	≥68km
Reading resolution	0.1m
Accuracy	less than 0.5m
Three types of test cable length	<1Km (short distance); <3Km (medium distance); >3 Km (long distance) (test low-voltage pulse amplitude: 400Vpp)
Pulse coupler withstand voltage	35kV DC
Working conditions	temperature -25℃~+65℃, relative humidity 85%, atmospheric pressure 750±30mmHg.

Multiple Pulse ARC with Coupler Windows Operating System Cable Fault Locator 2

Features

(1) 12-inch industrial-grade computer control, touch operation mode;
(2) Windows operating system, visual wireless expert guidance, 4G network;
(3)With functions such as distance measurement and speed measurement;
(4)400MHz sampling frequency, minimum resolution 0.5m (100m/us)
(5)Fully automatic continuous sampling, never miss any discharge waveform;
(6)Test method: multiple pulse sampling, induction sampling, flashover sampling, low-voltage pulse sampling
(7)The reflected signal sent by the pulse coupler is automatically displayed, and the full-length waveform of the open circuit of the cable is displayed at the same time. This makes the representation of the fault characteristic waveform extremely simple.
(8)With the function of storing massive test waveforms: The waveforms tested on site can be conveniently stored in the instrument in a prescribed order for recall and observation at any time.
(9)The measured fault point waveform and the good-phase full-length open-circuit waveform can be displayed on the screen at the same time for comparison on the same screen and superimposed comparison. Makes the judgment of the fault distance more accurate.
(10)Built-in polymer lithium battery power supply: it can work continuously for more than 4 hours after being fully charged. Fully meet the requirements of on-site testing. It can also work with an external AC power supply.
(11)Eight pulse transmission and fault reflection signals are automatically displayed, and the full-length waveform of the cable open circuit is displayed at the same time. This makes the representation of the fault characteristic waveform extremely simple.
