32kV 1024J Discharge Energy Portable Cable Fault Location System

Name: 32kV 1024J Discharge Energy Portable Cable Fault Location System
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHV535-2TSB+XHDD503E
Price: 15500.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE ISO
Model Number:	XHHV535-2TSB+XHDD503E

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE ISO

Model Number:

XHHV535-2TSB+XHDD503E

Highlight:

High Light

Highlight:

32kV portable cable fault locator

1024J discharge energy fault finder

portable cable fault location system with warranty

Trading Information

Minimum Order Quantity:

1 set

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Product Description

1024J Discharge Energy 32kV and Below ARC Cable Fault Location System

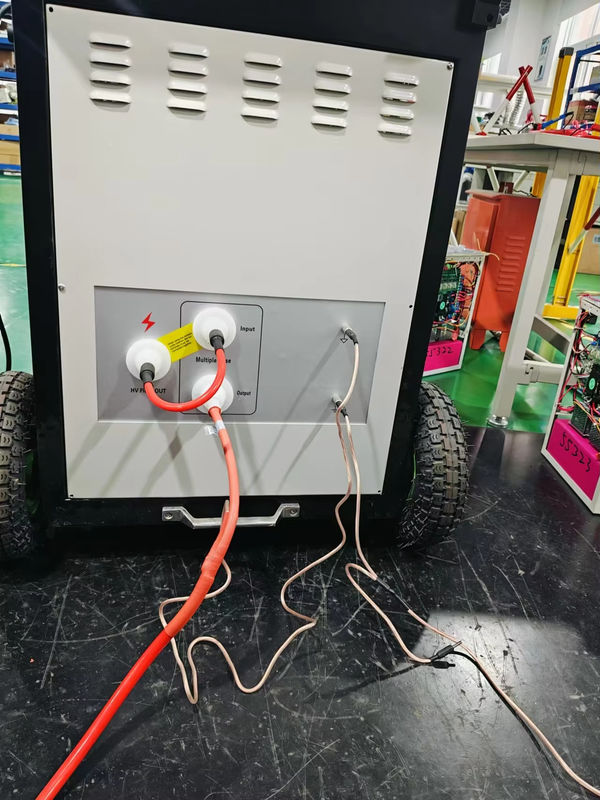

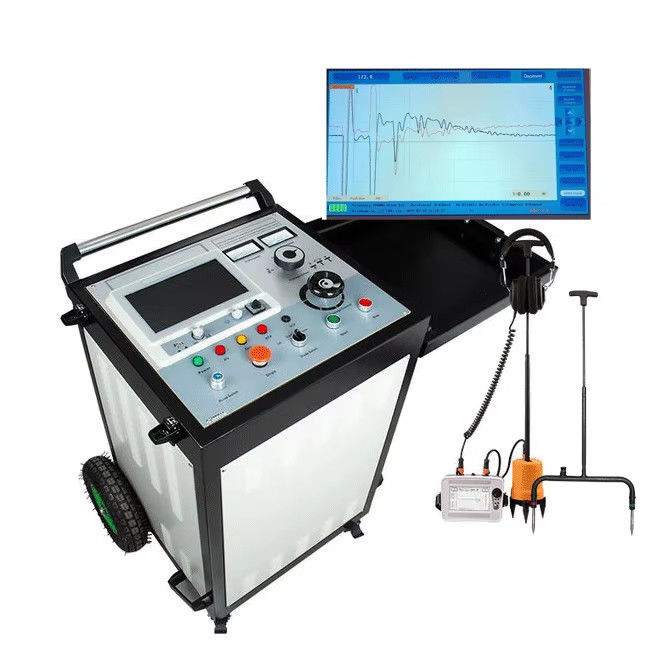

The XHHV535-2TSB cable fault location system detects main insulation faults in power cables rated 35kV and below while accurately measuring cable length. This comprehensive system combines a cable fault tester with a high-voltage pulse generator for reliable fault detection.

System Overview

The cable fault tester features an intuitive software interface with touch operation, controlled by a single-chip microcomputer. Its built-in high-capacity lithium-ion battery ensures stable, reliable operation with an independent power supply system that prevents interference during impact discharge.

This advanced test system effectively identifies various cable faults including:

Low-resistance, short-circuit, and open-circuit faults
Broken wire faults in power cables of different materials
High-resistance leakage and flashover faults
Faults in high-frequency coaxial cables, street light cables, and underground wires

Technical Specifications

Parameter	Value
Surge HV voltage	0-8kV/16kV/32kV
High voltage side current	0-60mA
Internal capacitor	2μF/32kV, 8μF/16kV, 32μF/8kV
Surge time	Auto surge ~7s or manual control
Surge energy	1024J
Surge power	2KVA
Weight	≤120kg
Power supply	AC220V±15%, 50Hz±2Hz

Cable Fault Pre-locator Parameters

Sampling frequency: 1MHz~400MHz
Low voltage pulse amplitude: 300V±15%
Distance measurement range: ≥120km
Test ranges: 100m/300m/500m/1km/3km/5km/10km/25km/50km/100km
Pulse width: 0.15μS to 10μS (8 selectable ranges)
Minimum resolution: 0.07m
Test blind area: ≤10m
Measurement error: ≤±(0.5%×L+1m), where L is cable length
Power: Built-in 10.4AH lithium battery (5 hours operation, 2 hour charge time)

XHDD503E Cable Fault Pinpointer

The XHDD503E pinpointer uses acoustic-magnetic synchronization technology to precisely locate cable faults. When combined with a high-voltage pulse generator, it detects flash discharge phenomena through vibration waves, sound waves, and electromagnetic waves, processing this data to output both visual distance readings and audible signals for precise fault localization.

This versatile instrument handles various cable faults including:

Low-resistance, short-circuit, and open-circuit faults
Broken-wire faults in cables of different voltage levels and materials
Leakage and flashover high-resistance faults

Pinpointer Technical Specifications

Sound channel bandwidth: All-pass (100Hz-1600Hz), Low pass (100Hz-300Hz), High pass (160Hz-1600Hz), Band pass (200Hz-600Hz)
Channel adjustment: 8 levels for sound, magnetic, and voltage
Sound output: 16-level gain (0-112dB), 350Ω impedance
Detection range: 0.00-99.99ms, 75mV-75V
Detection accuracy: Positioning ≤0.1m; Step voltage ≤0.5m; Path ≤0.5m
Power: 4×18650 lithium batteries (8+ hours operation)
Operating conditions: -25°C to 65°C; ≤90% humidity
Dimensions: 428L×350W×230H (mm)
Weight: 7kg
