Portable Cable Fault Location System for 35kV Power Cables

Name: Portable Cable Fault Location System for 35kV Power Cables
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHV535-2TSB+XHDD503E
Price: 15500.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE ISO
Model Number:	XHHV535-2TSB+XHDD503E

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE ISO

Model Number:

XHHV535-2TSB+XHDD503E

Highlight:

High Light

Highlight:

35kV portable cable fault locator

power cable fault detection system

portable cable fault locator with warranty

Trading Information

Minimum Order Quantity:

1 set

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Product Description

Must-Have Portable Cable Fault Location System for Power Cable Insulation Detection

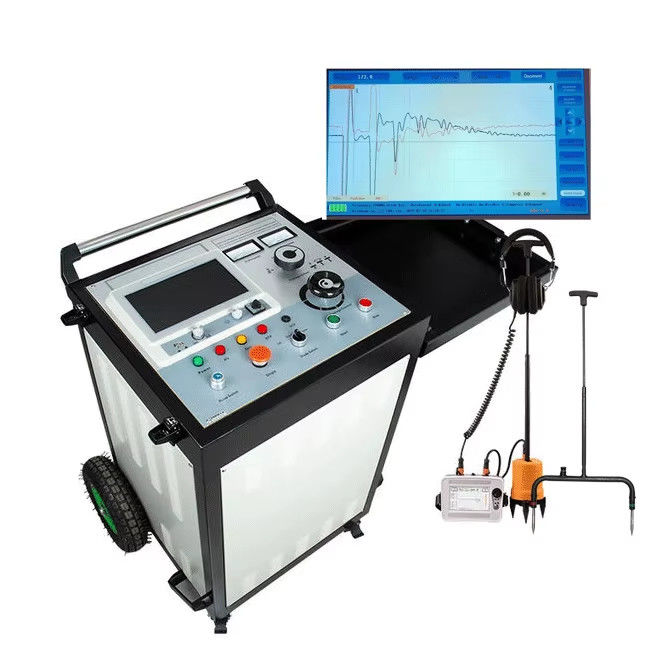

XHHV535-2TSB Cable Fault Location System

The XHHV535-2TSB cable fault location system is designed for detecting main insulation faults in power cables with voltage levels up to 35kV and for cable length calibration. This comprehensive system includes two main components: a cable fault tester and a high-voltage pulse generator.

Key Features

Simple operating software interface with touch-type operation
Centralized control by single-chip microcomputer
Built-in large capacity lithium-ion battery for stable, reliable operation
Independent power supply system prevents interference during impact discharge
Suitable for various cable faults including low-resistance, short-circuit, open-circuit, and broken wire faults
Effective for high-resistance leakage and high-resistance flash over faults
Compatible with power cables, high-frequency coaxial cables, street light cables, and underground wires

Technical Parameters

Surge HV voltage	0-8kV/16kV/32kV
High voltage side current	0-60mA
Inside capacitor	2μF/32kV, 8μF/16kV, 32μF/8kV
Surge time	Auto surge about 7s, manual control available
Surge energy	1024J
Surge power	2KVA
Weight	≤120kg
Power supply	AC220V±15%, 50Hz±2Hz

Cable Fault Pre-locator Parameters

Sampling frequency: 1MHz~400MHz
Low voltage pulse amplitude: 300V±15%
Distance measurement range: ≥120km
Test range: 100m/300m/500m/1km/3km/5km/10km/25km/50km/100km
Pulse width: 0.15μS to 10μS
Minimum resolution: 0.07m
Test blind area: ≤10m
Measurement error: ≤±(0.5%×L+1m), where L is cable length
Working power: Built-in 10.4AH lithium battery (5 hours operation, 2 hours charging)

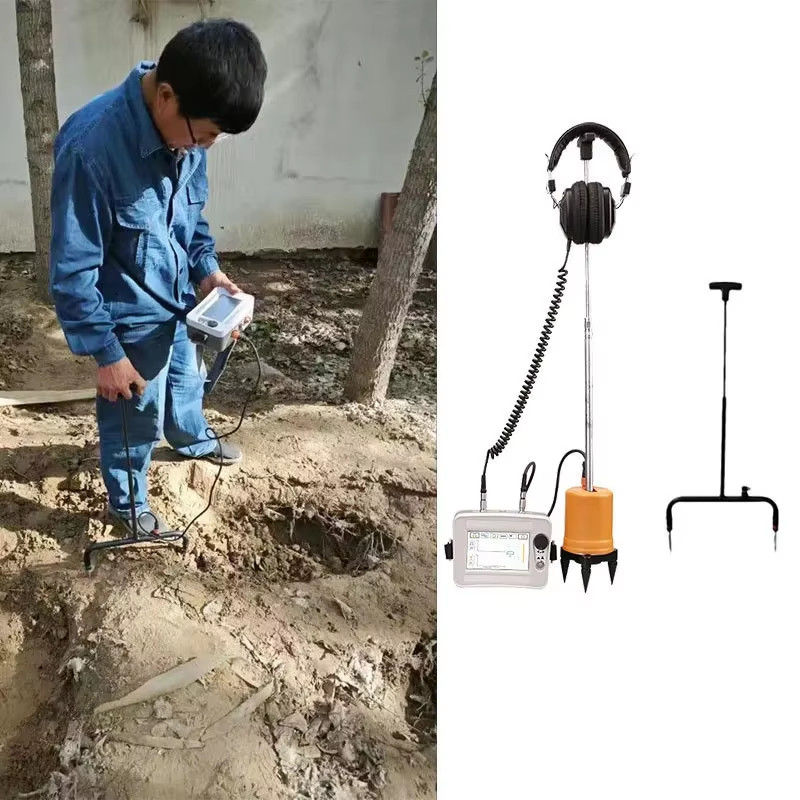

XHDD503E Cable Fault Pinpointer

The XHDD503E cable fault pinpointer utilizes acoustic-magnetic synchronization technology to precisely locate cable faults. When combined with a high-voltage pulse generator, it detects flash discharge phenomena through vibration waves, sound waves, and electromagnetic waves, enabling accurate fault point identification.

Applications

Suitable for various cable faults including low-resistance, short-circuit, open-circuit, and broken-wire faults in power cables, coaxial cables, and low-voltage cables with different voltage levels, cross-sections, and media, as well as leakage and flash over high-resistance faults.

Main Parameters

Sound channel bandwidth options: All-pass, Low pass, High pass, Band pass
Channel adjustment: 8 levels of sound, magnetic and voltage
Sound output: 16-level gain (0-112dB), 350Ω impedance
Detection range: 0.00-99.99ms, 75mV-75V
Detection accuracy: Positioning ≤0.1m; Step voltage ≤0.5m; Path ≤0.5m
Power supply: 4×18650 standard lithium batteries
Standby time: >8 hours
Operating conditions: -25°C to 65°C, ≤90% humidity
Dimensions: 428L×350W×230H mm
Weight: 7kg
