35kV Cable Fault Location System with 2048J Discharge Power

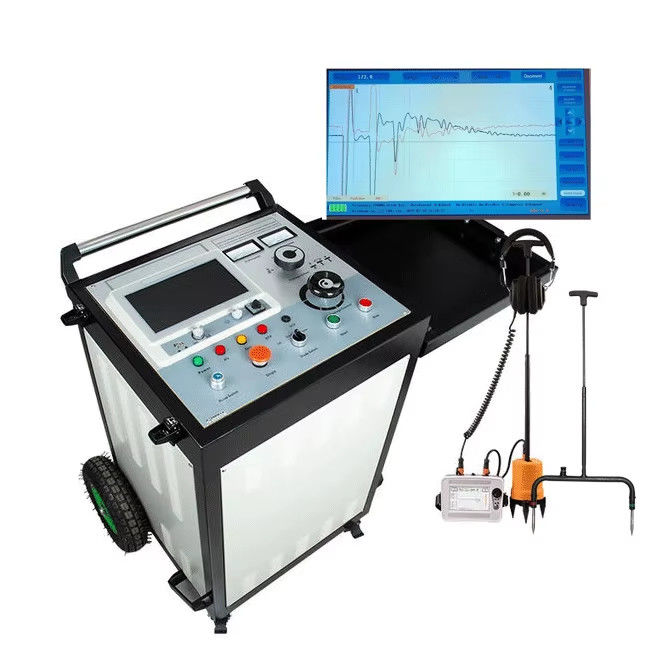

The XHHV535-4TSB cable fault location system is designed to detect main insulation faults in power cables with voltage levels up to 35kV and calibrate cable length. This comprehensive system includes a cable fault tester and high-voltage pulse generator.

The cable fault tester features an intuitive software interface with touch operation, centralized microcontroller control, and a built-in high-capacity lithium-ion battery. Its independent power supply system prevents interference during impact discharge, ensuring stable and reliable operation.

This system is suitable for detecting various faults in power cables, including low-resistance, short-circuit, open-circuit, broken wire, high-resistance leakage, and high-resistance flashover faults across different cable types and materials.

• Sampling frequency: 1MHz-400MHz
• Low voltage pulse amplitude: 300V±15%
• Distance measurement range: ≥120km
• Test ranges: 100m/300m/500m/1km/3km/5km/10km/25km/50km/100km
• Pulse width: 0.15μS to 10μS
• Minimum resolution: 0.07m
• Test blind area: ≤10m
• Measurement error: ≤±(0.5%×L+1m), where L is cable length
• Power supply: Built-in 10.4AH lithium battery (5 hours operation, 2 hours charge time)

The XHDD503E pinpointer uses acoustic-magnetic synchronization technology to precisely locate cable faults. When combined with a high-voltage pulse generator, it detects flash discharge phenomena through vibration waves, sound waves, and electromagnetic waves, displaying fault distance and producing audible signals for precise fault localization.

• Sound channel bandwidth: 100Hz-1600Hz (all-pass, low-pass, high-pass, band-pass options)
• 8-level adjustment for sound, magnetic, and voltage channels
• Sound output: 16-level gain (0-112dB), 350Ω impedance
• Detection range: 0.00-99.99ms, 75mV-75V
• Detection accuracy: ≤0.1m (positioning), ≤0.5m (step voltage/path)
• Power supply: 4×18650 lithium batteries (8+ hours standby)
• Operating temperature: -25℃ to 65℃
• Dimensions: 428×350×230mm
• Weight: 7kg
