Portable Underground Power Cable Fault Locator XHGG501D

Name: Portable Underground Power Cable Fault Locator XHGG501D
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHGG501D
Price: 4,175.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE/ISO
Model Number:	XHGG501D

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE/ISO

Model Number:

XHGG501D

Highlight:

High Light

Highlight:

portable underground cable fault locator

cable fault pinpointer XHGG501D

underground power cable detector

Trading Information

Minimum Order Quantity:

1 Unit

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Product Description

Portable Cable Fault Pre-locator/TDR Cable Fault Detector

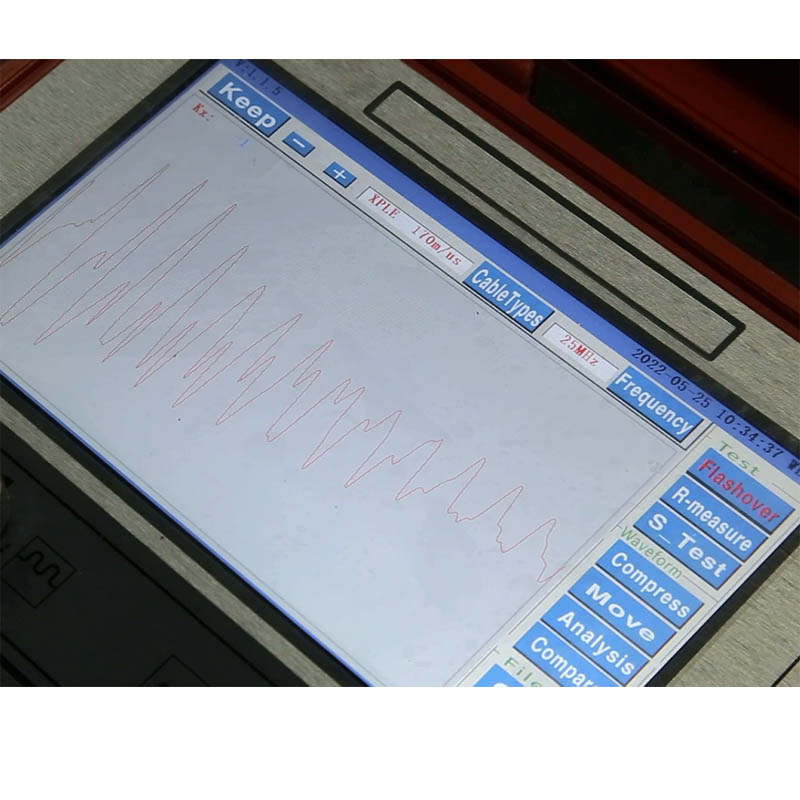

Portable Underground Power Cable Fault Locator XHGG501D 0

Product Description

XHGG501D is designed for underground power cable fault per-locating, to provide quick accurate and safe measurement solution. Measure the power cable of different sections, different media of various materials, short circuit, open circuit short line fault and the low and middle resistance fault. Great for KV substation, civil power supply system and power energy sources applications.

Portable Underground Power Cable Fault Locator XHGG501D 1

Portable Underground Power Cable Fault Locator XHGG501D 2

Product Parameters

Sampling frequency	100MHz
Pulse width	0.1uS/2uS
Minimum resolution	0.5m
Test blind zone	≤20m
Ranging range	≤30km
Measurement error	≤±(0.5%×L+1m), L is the cable length
Power supply mode	charging 220VAC±10%, 50Hz/60Hz; built-in 5200mAH lithium battery power supply;
Working conditions	-20~+60ºC, relative humidity≤90%;
Volume(mm)	358L×284W×168H
Weight	4.6kg

Portable Underground Power Cable Fault Locator XHGG501D 3
