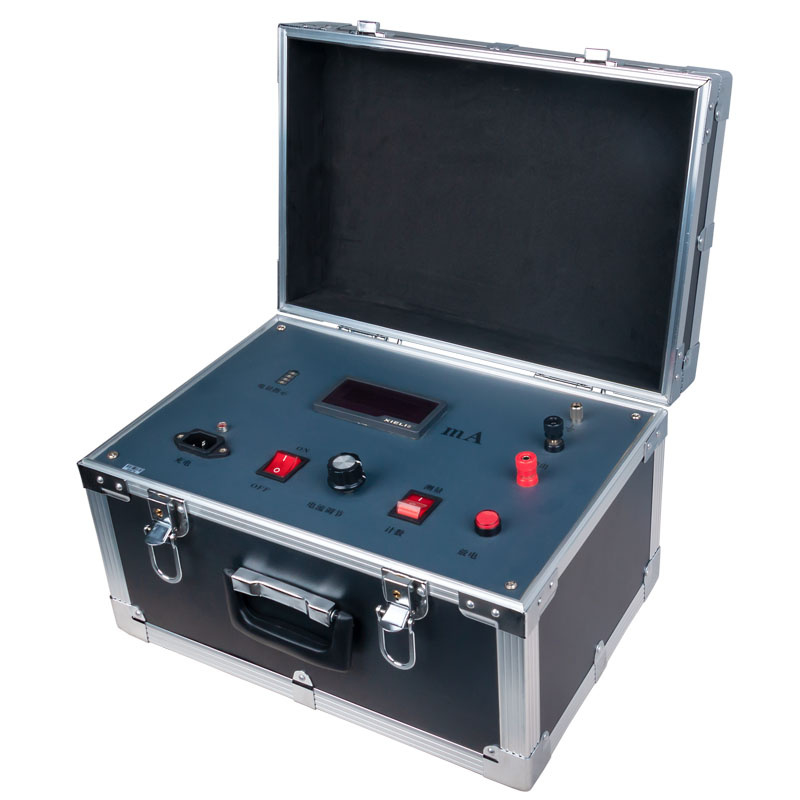

Lightning Arrester Monitor Calibrator for Substation Safety Testing
Lightning Arrester Monitor Calibrator for Substation Safety Testing
  • Lightning Arrester Monitor Calibrator for Substation Safety Testing
  • Lightning Arrester Monitor Calibrator for Substation Safety Testing
  • Lightning Arrester Monitor Calibrator for Substation Safety Testing
  • Lightning Arrester Monitor Calibrator for Substation Safety Testing
  • Lightning Arrester Monitor Calibrator for Substation Safety Testing
  • Lightning Arrester Monitor Calibrator for Substation Safety Testing

Lightning Arrester Monitor Calibrator for Substation Safety Testing

Product Details:
Place of Origin: China shanxi
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHJS401A
Detail Information
Place of Origin:
China shanxi
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHJS401A
Highlight:

High Light

Highlight:

arrester monitoring calibrator China made

,

circuit breaker analyzer calibrator

,

arrester monitoring device calibrator

Trading Information
Minimum Order Quantity:
1 Unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
1000 units per year
Product Description
China Manufactured Arrester Monitoring Calibrator
Lightning arrester monitors are widely used in substations throughout China, where their operational status directly impacts power system safety. These monitors track lightning arrester actions and leakage current. However, poor sealing can allow moisture ingress, leading to component rust and inaccurate readings. Annual inspections are mandated by regulations, making this calibrator an essential tool for maintenance.
Lightning Arrester Monitor Calibrator for Substation Safety Testing 0
Main Features
  • Monitor count verification (on-power/off-power)
  • Ammeter accuracy verification (on-power/off-power)
  • True RMS measurement with excellent stability
  • Strong anti-interference capability during online operation
  • Standard sine wave output for consistent verification results
  • Built-in battery for convenient field use
Lightning Arrester Monitor Calibrator for Substation Safety Testing 1
Lightning Arrester Monitor Calibrator for Substation Safety Testing 2
Product Parameters
Power supply Built-in battery 4Ah 12V
Output frequency 55Hz
Output current 5mA/10mA (can be customized)
Resolution 0.001mA
Current accuracy 0.5%±3 words
Inrush current 50A ~ 100A (instant)
Impact voltage DC 1000V
Action count 1 ~ 2s / times
Action number Cyclical measurement

Tags:

arrester monitoring calibrator China made,

circuit breaker analyzer calibrator,

arrester monitoring device calibrator
