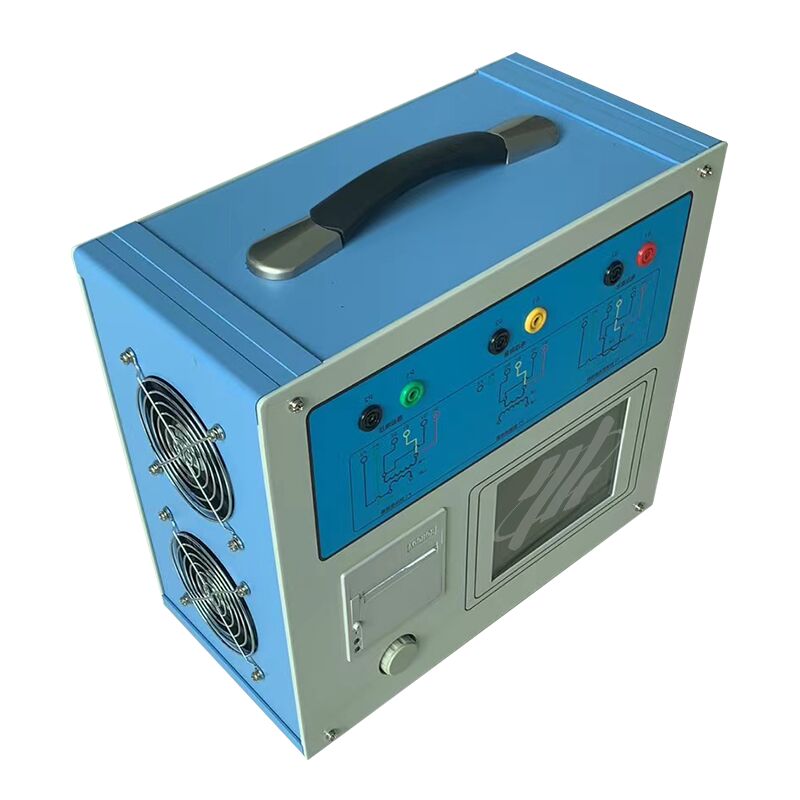

The XHTX206 Transformer Comprehensive Characteristic Tester is a versatile device that meets all testing needs of diverse CTs (protection - class, metering - class, TP - class included) — covering excitation (volt - ampere) characteristics, transformation ratio, polarity, secondary winding resistance, secondary load, ratio error, and angle error. It also supports testing of excitation characteristics, transformation ratio, polarity, secondary winding resistance, and ratio error for electromagnetic units of all PT types.
Frequency conversion testing technology enables accurate measurement of characteristic & error curves, boasting a maximum inflection point voltage of 60kV.
Automatically calculates and presents inflection point voltage/current, error curves, and all critical test parameters.
Dynamic interfaces for parameter setup and wiring guidance, eliminating operational confusion.
Rotary photoelectric mouse control ensures hassle - free, efficient operation.
Technical Parameters
☆ Output: 0–180Vrms, 12Arms, 36A (peak) ±0.2%
☆ Measurement: Transformation Ratio: 0–2000 ±0.1%; 2000–5000 ±0.2%; 5000–35000 ±0.5%
Resistance: 0–600Ω ±(0.5%R+2mΩ)
Phase: Resolution 0.5min ±5min
Load: 0–1000VA ±(0.5%R+0.02VA)
☆ Power Supply: AC220V±10%, 50Hz
