Grey Underground Cable Locator with Multi-Frequency Detection

Name: Grey Underground Cable Locator with Multi-Frequency Detection
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHGX507C
Price: 1,662.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shaanxi
Brand Name:	XZH TEST
Certification:	CE/ISO
Model Number:	XHGX507C

Detail Information

Place of Origin:

Shaanxi

Brand Name:

XZH TEST

Certification:

CE/ISO

Model Number:

XHGX507C

Color:

Grey

Highlight:

High Light

Highlight:

grey underground cable locator

multi-frequency cable route tracer

underground cable detector with warranty

Trading Information

Minimum Order Quantity:

1unit

Packaging Details:

wooden packaging

Payment Terms:

T/T

Supply Ability:

100 unit per month

Product Description

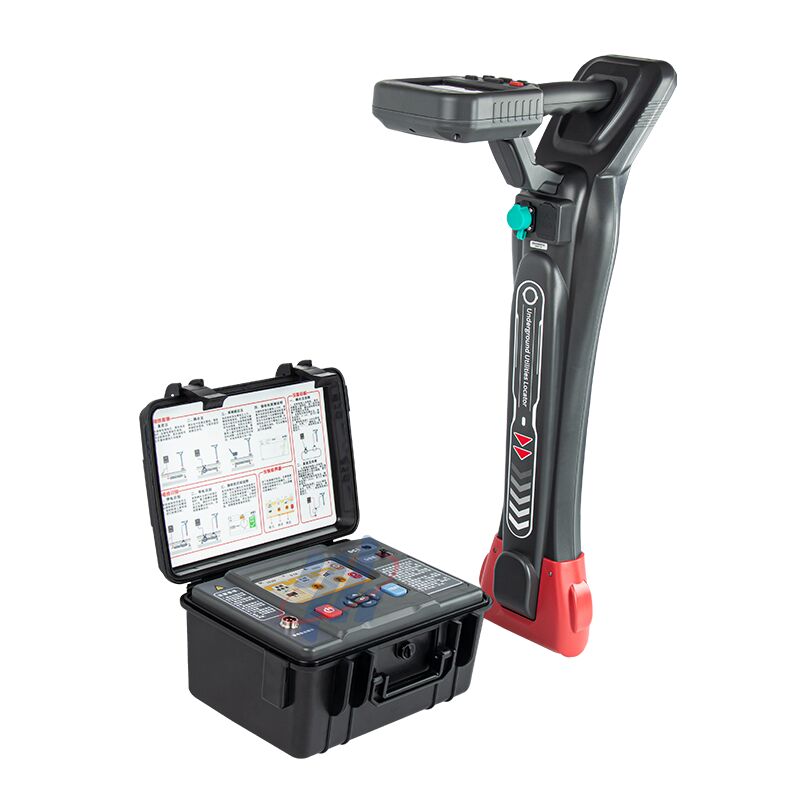

XHGX507C Grey Underground Utilities Locator

Color: Grey

The intelligent cable pipeline detector is a comprehensive path detection instrument with multiple functions including pipeline path detection, cable identification, and fault finding. The complete system includes:

Transmitter
Transmitting current clamp
Receiver
Receiving flexible current clamp
Connecting test line
A-frame (optional)

This advanced detector is designed for path detection, pipeline census, and depth measurement of metal pipelines and underground cables in trenchless environments. Featuring multiple filtering technologies and anti-interference capabilities, it provides accurate location and depth measurement for various underground utilities.

Transmitter Specifications

Function	Multiple frequency signal transmission modes
Power Supply	10.8V large capacity rechargeable lithium battery
Output Method	Direct connection, coupling, induction
Output Frequency	640Hz to 197kHz (11 selectable frequencies)
Output Power	15W max, 9 adjustable levels
Direct Output Voltage	150Vpp max
Display	5-inch LCD color screen with capacitive touch
Dimensions	320mm × 275mm × 145mm

Receiver Specifications

Functions	Pipeline detection, cable identification, A-frame fault finding (optional)
Power Supply	8.4V large capacity rechargeable lithium battery
Detection Modes	Broad peak, narrow peak, valley methods
Detection Range	0-20km (direct connection), 0-10km (coupling)
Depth Measurement	0-20m with ±5% to ±10% accuracy
Display	4.3-inch LCD color screen with capacitive touch
Dimensions	350mm × 155mm × 700mm
Weight	Approximately 2kg
Environmental	-10ºC to 40ºC operation, -10ºC to 50ºC storage
Safety Standards	IEC61010-1 CAT III 600V, IEC61010-031, IEC61326

Key Features

Advanced anti-interference technology with visual indicators
Precise cable identification with flexible caliper
Real-time depth and current measurement
Multiple detection modes for different scenarios
High brightness display visible in sunlight
Robust construction for field use

Ideal for pipeline maintenance, municipal planning, power supply departments, and construction projects requiring accurate underground utility detection.
