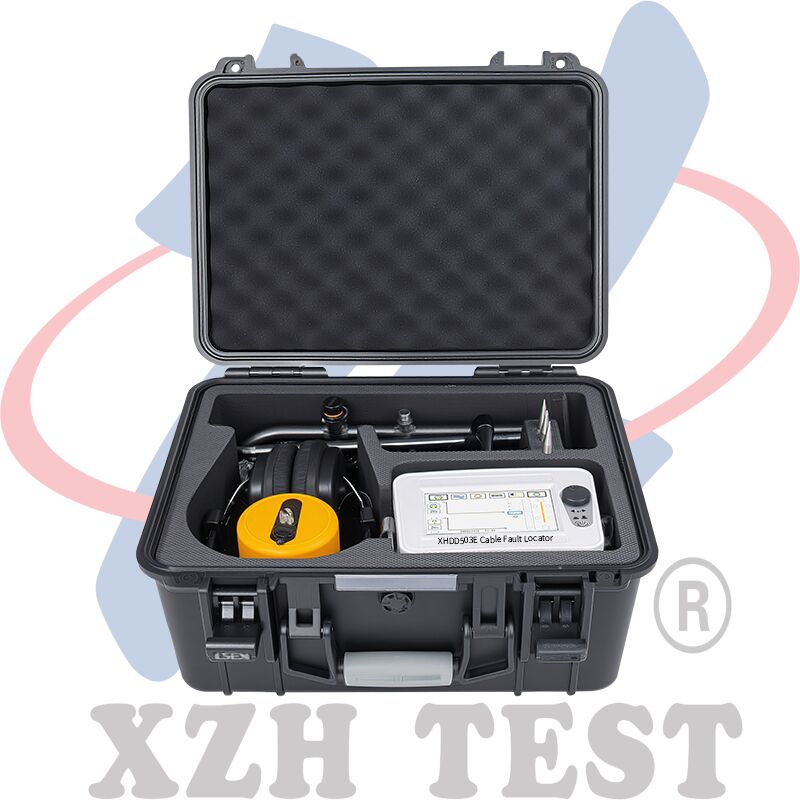

Cable Fault Pinpointer with Acoustic-Magnetic Sync for Underground Cables

Name: Cable Fault Pinpointer with Acoustic-Magnetic Sync for Underground Cables
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDD503E
Price: 4,175.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an, Shaanxi, China
Brand Name:	XZH TEST
Certification:	CE, ISO
Model Number:	XHDD503E

Detail Information

Place of Origin:

Xi'an, Shaanxi, China

Brand Name:

XZH TEST

Certification:

CE, ISO

Model Number:

XHDD503E

Highlight:

High Light

Highlight:

Cable Fault Pinpointer with Acoustic-Magnetic Sync

Underground Cable Fault Locator

XHDD503E Cable Fault Detector

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

wooden case

Delivery Time:

5-8 days

Payment Terms:

T/T

Supply Ability:

2000unit/year

Product Description

High-Performance Cable Fault Pinpointer for Quick Fault Point Identification

Product Specifications

Model NO.	XHDD503E
Usage	Network Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester
Power	Electricity
Color	Black
Filter	200Hz-1600Hz Optional
Output Gain	16 Levels (0~112dB)
Acoustic-Magnetic Positioning Accuracy	Less Than 0.2m
Step Voltage Positioning Accuracy	Less Than 0.5m
Path Identification Accuracy	Less Than 0.5m
Transport Package	Wooden Case
Trademark	XZH TEST
Origin	China
HS Code	9031809090
Supply Ability	2000PCS/Year
Warranty	12 Months

Product Overview

The cable fault locator uses the principles of vibration pickup and electromagnetic induction to determine the specific location of cable fault points. A high-voltage pulse generator causes flashover discharge at the fault point, and the resulting vibration waves, sound waves, and electromagnetic waves are detected by the instrument's special probe for precise fault location.

Key Features

5-inch touch-high brightness LCD ensures visibility under sunlight
4 test modes: standard, enhanced, noise reduction, and customized
4 positioning functions: acoustic-magnetic synchronization, pure acoustic, pure magnetic, and step voltage
Background noise reduction technology with multiple filtering options
Equipped with BNR and mute functions
Path deviation indication capability
Multi-layer physical isolation signal sensors with IP65 waterproof rating
Built-in large-capacity lithium battery with long standby time and fast charger
Compact, lightweight design with simple human-machine interface

Working Principle

1. Acousto-magnetic synchronization method: Combines traditional acoustic measurement with electromagnetic signal detection for precise fault location by measuring time differences between signals.

2. Pure sound method: Uses high-voltage impulse to create discharge sounds at fault points, detected by sensitive acoustic sensors for accurate location.

3. Pure magnetic method: Detects pulse signals through induction coils to determine cable path and fault locations.

4. A-frame method: Uses potential difference measurements to locate ground faults in buried cables by detecting changes in electric field characteristics.

Instrument Components
