Model NO. | XHDD503E |
Usage | Network Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester |
Power | Electricity |
Color | Black |
Filter | 200Hz-1600Hz Optional |
Output Gain | 16 Levels (0~112dB) |
Acoustic-Magnetic Positioning Accuracy | Less Than 0.2m |
Step Voltage Positioning Accuracy | Less Than 0.5m |
Path Identification Accuracy | Less Than 0.5m |
Transport Package | Wooden Case |
Trademark | XZH TEST |
Origin | China |
HS Code | 9031809090 |
Supply Ability | 2000PCS/Year |
Warranty | 12 Months |

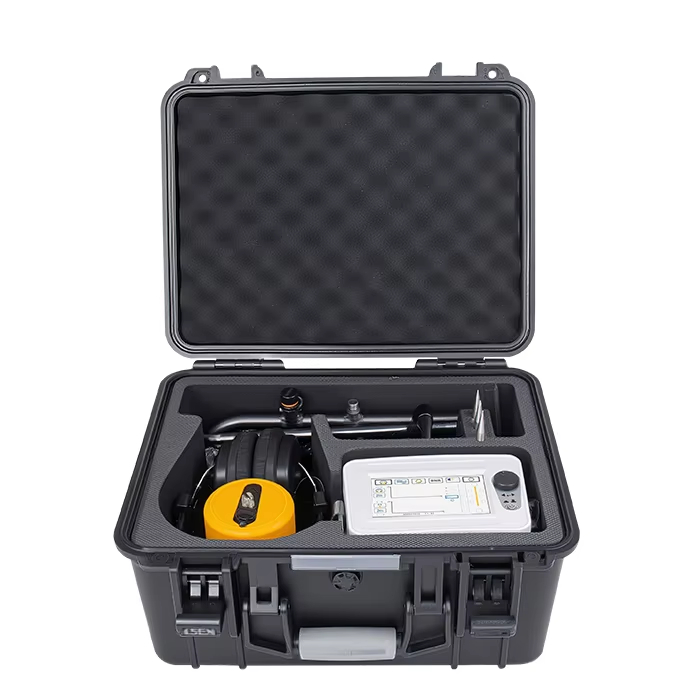

The cable fault locator uses the principles of vibration pickup and electromagnetic induction to determine the specific location of cable fault points. A high-voltage pulse generator causes flashover discharge at the fault point, and the resulting vibration waves, sound waves, and electromagnetic waves are detected by the instrument's special probe for precise fault location.
Filter parameters: All-pass: 100Hz~1600Hz, Low pass: 100Hz~300Hz, Qualcomm: 160Hz~1600Hz, Bandpass: 200Hz~600Hz
Channel gain: 8 levels adjustable
Magnetic channel gain: 8 levels adjustable
Step voltage gain: 8 levels adjustable
Output gain: 16 levels (0~112db)
Output impedance: 350Ω
Acoustomagnetic positioning accuracy: ≤0.1m
Step voltage positioning accuracy: ≤0.5m
Path identification accuracy: ≤0.5m
Display control method: 5-inch high-brightness touch screen
Power supply: 4*18650 standard lithium batteries
Standby time: More than 8 hours
Dimensions: 428L×350W×230H (mm)
Weight: 7kg
Operating conditions: -25~65ºC; Relative humidity ≤90%
1. Acousto-magnetic synchronization method: Combines traditional acoustic measurement with electromagnetic signal detection for precise fault location by measuring time differences between signals.
2. Pure sound method: Uses high-voltage impulse to create discharge sounds at fault points, detected by sensitive acoustic sensors for accurate location.
3. Pure magnetic method: Detects pulse signals through induction coils to determine cable path and fault locations.
4. A-frame method: Uses potential difference measurements to locate ground faults in buried cables by detecting changes in electric field characteristics.
The A-frame automatically enters test mode when connected. The red and green indicators show signal strength changes as you approach the fault point, with maximum deflection occurring approximately 5 meters before and after the fault location.
