Transformer DC Resistance Testerwith Thermal Printer and DC Resistance Measurement

Name: Transformer DC Resistance Testerwith Thermal Printer and DC Resistance Measurement
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHZ1020
Price: 1,050.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an ShanXi
Brand Name:	XZH TEST
Certification:	ISO
Model Number:	XHZ1020

Detail Information

Place of Origin:

Xi'an ShanXi

Brand Name:

XZH TEST

Certification:

ISO

Model Number:

XHZ1020

Highlight:

High Light

Highlight:

Thermal Printer DC Resistance Tester

Transformers Test Needs Resistance Tester

DC Resistance Measurement Tester

Trading Information

Minimum Order Quantity:

1set

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

3000unit/year

Product Description

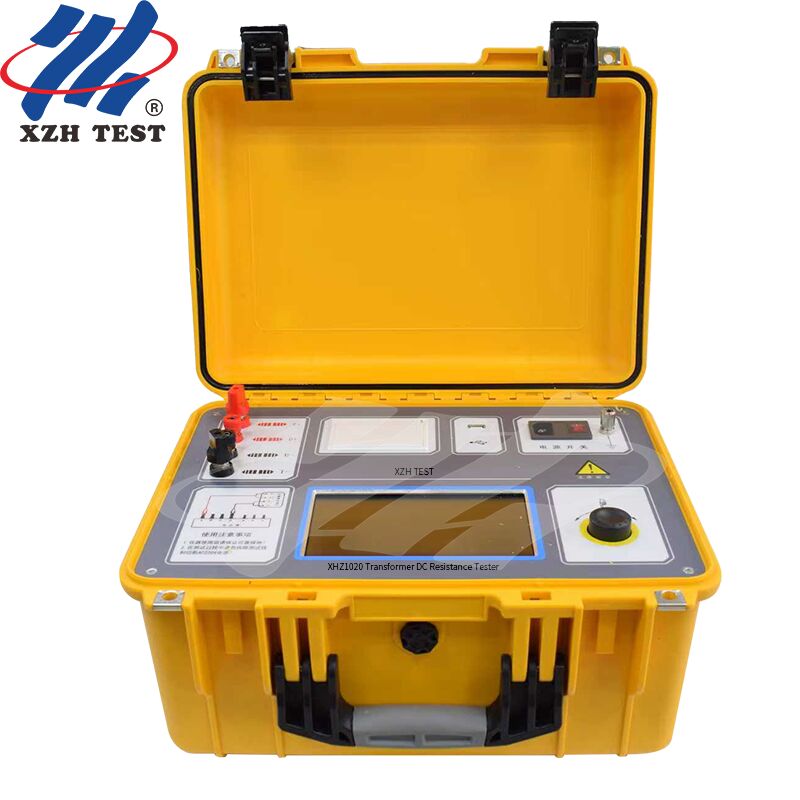

XHZ1020 Transformer DC Resistance Tester

Designed specifically for transformers' test requirements, this DC Resistance Tester comes equipped with a built-in thermal printer for immediate results documentation.

The DC resistance of transformers must be tested for their delivery, installation and handover, regardless they’re semi-finished or finished transformers.

It’s also indispensable in preventive tests for power sector.

Main Functional Features

With 50A max test power output current and 0~25kΩ test range
It auto-calculates resistance change rate in 5S, 15S, 30S during testing to help judge data stability and avoid misreading.
It has multiple protections (380V misconnection for 50A/40A, back EMF, wire disconnection, power failure) and ground wire alarm (50A/40A).
Equipped with a thermal printer, it stores 200 local data pieces and supports USB mass storage.
Its 7-inch industrial true-color screen, full touch control + jog dial enable comfortable, convenient human-machine interaction.

Accuracy	±(reading×0.2%+2)
Power Supply	AC220V±10%, 50/60Hz
Use Temperature	-10℃～50℃
Relative Humidity	＜90%, non-condensing.

Test temp

Set current oil temperature of tested products.

Conv temp

Set the temperature value to be converted from the resistance value measured at current oil temperature. This value relates to converted resistance value.

Material

Copper and aluminum can be selected. Winding material is related to the conversion coefficient used in calculating the converted resistance value.

Current

Select test current to use in tests.

Click “Test” button to start tests after all parameters are set.
