Cable Outer Sheath Fault Locator Set
Detecting Cable Outer Sheath Fault Via MURRAY Bridge/Step Voltage and Clamping Current
Cable Outer Sheath Fault Locator Set for 10kV-500kV Cables 0
The Cable Outer Sheath Fault Locator Set quickly and accurately identifies hidden dangers including grounding faults and excessive leakage current in the outer sheath of 10kV-500kV single-core and three-core high-voltage and extra-high-voltage cables. This system can also perform 5kV-10kV, 1-minute DC withstand voltage tests on high-density polyethylene and polyvinyl chloride cable sheaths.
Key Applications
  • Essential for maintenance of 10kV-500kV single-core and three-core high-voltage cable systems
  • Critical tool for extra-high-voltage cable engineering companies
  • Valuable asset for power transmission and transformation engineering operations
Cable Outer Sheath Fault Locator Set for 10kV-500kV Cables 1

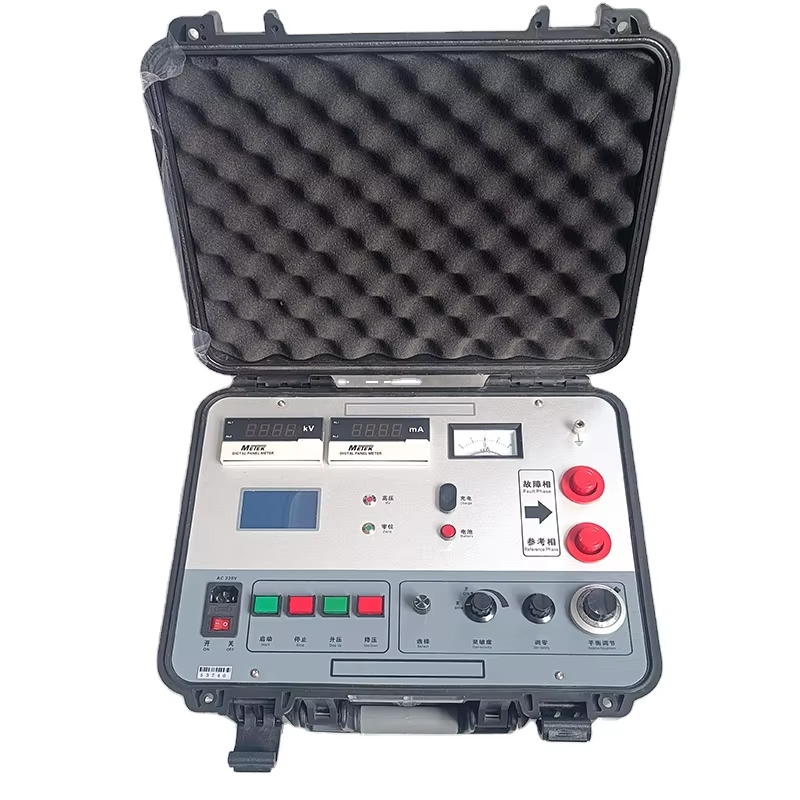

XHHG521A Model Features
Designed based on the MURRAY bridge principle, the XHHG521A locates breakdown points in various wires and cables, including defects with low insulation resistance values. The system features:
  • High-voltage constant current source with electric voltage regulator and R-type transformer
  • Button-controlled voltage adjustment (7500V no-load voltage, 100mA short-circuit current)
  • High-sensitivity amplifier and galvanometer for balance indication
  • Integrated high-voltage source and bridge in portable protective box
  • One-touch operation with automatic fault distance calculation
  • Four-terminal resistance measurement eliminates lead resistance errors
Technical Specifications
Parameter Value
No load voltage ≥7500V
Short circuit current ≥100mA (recommended 5-40mA for balance adjustment)
Positioning accuracy ±(0.2%*L±1)m
Weight 25kg
Power supply AC 220V (±10%), 50Hz±1Hz; 8.4V built-in battery
