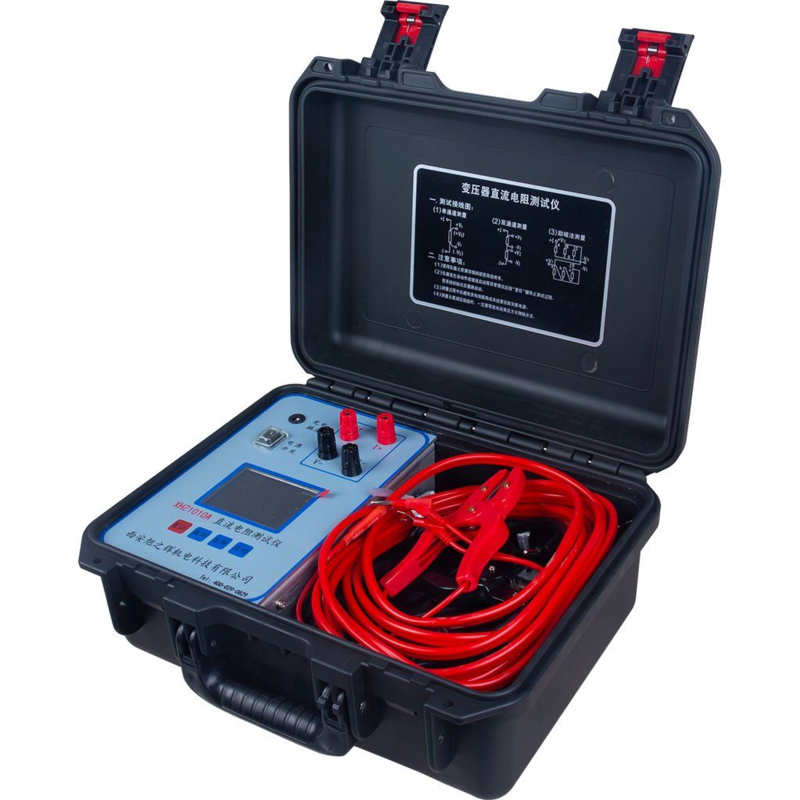

XHZ1010S Transformer DC Resistance Tester with 10A Test Current
XHZ1010S Transformer DC Resistance Tester with 10A Test Current
  • XHZ1010S Transformer DC Resistance Tester with 10A Test Current
  • XHZ1010S Transformer DC Resistance Tester with 10A Test Current
  • XHZ1010S Transformer DC Resistance Tester with 10A Test Current

XHZ1010S Transformer DC Resistance Tester with 10A Test Current

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHZ1010S
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHZ1010S
Highlight:

High Light

Highlight:

10A transformer resistance tester

,

DC resistance tester with warranty

,

transformer tester 10A current

Trading Information
Minimum Order Quantity:
1 unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
2000unit/year
Product Description
Innovative Transformer Tester for Accurate DC Resistance Measurement
Transformer DC resistance testing is an essential procedure in transformer manufacturing for semi-finished and finished products, factory testing, installation, overhaul, tap changer adjustments, handover tests, and preventive maintenance in the power sector. This test helps verify:
  • Winding joint welding quality
  • Potential short-circuits between turns
  • Voltage tap switch contact quality
  • Tap changer position accuracy
  • Lead wire integrity and potential breakage
The XHZ1010S Transformer DC Resistance Tester meets the demand for rapid transformer measurements with advanced features and reliable performance.
Key Features
  • Advanced power supply technology for compact size and light weight
  • High output current with excellent repeatability
  • Strong anti-interference capabilities with comprehensive protection
  • Microcontroller-controlled with full automation
  • Automatic discharge with alarm function
  • High-precision 65K true color LCD (320×240 resolution)
  • Built-in data storage for 1000 test records
Technical Specifications
Parameter Specification Notes
Test Current AUTO, <20mA, 40mA, 200mA, 1A, 5A, 10A
Measuring Range & Accuracy 0.5mΩ~0.2Ω (10A)
1mΩ-3Ω (3A)
5mΩ-6Ω (1A)
100mΩ-40Ω (200mA)
1Ω-200Ω (40mA)
100Ω-20KΩ (<5mA)		 Accuracy: ±(0.2%+2 digits)
Minimum Resolution 0.1μΩ
Display LCD (4-digit resistance display)
Data Storage 1000 groups
Operating Environment 0ºC~40ºC, <90% RH (non-condensing)
Power Supply Built-in lithium battery with external charger
Maximum Power Consumption 50W
Dimensions 360×290×170mm
Weight 6.25 kg (complete set)
