25kV/5min Cable Sheath Fault Locator With Low Leakage Current

Name: 25kV/5min Cable Sheath Fault Locator With Low Leakage Current
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHD523L
Price: 2,500.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE/ISO
Model Number:	XHHD523L

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE/ISO

Model Number:

XHHD523L

Highlight:

High Light

Highlight:

25kV cable sheath fault locator

low leakage current fault locator

5min cable sheath tester

Trading Information

Minimum Order Quantity:

1unit

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

1000 units per year

Product Description

Low Leakage Current Cable Sheath Fault Locator for 25kV/5min Withstand Voltage Test

With the full deployment of urban network transformation, many power supply bureaus, construction teams, and design units are encountering 110kV XLPE cables for the first time. Due to time constraints and limited experience, many cables fail the withstand voltage test (10kV/1min). Most outer sheaths use HDPE material, which passes the factory DC 25kV/5min withstand voltage test with leakage current as low as tens of μA. Post-installation defects typically result from external damage during laying, soil conditions, or cover issues. Operational defects may include termite damage, water ingress in grounding boxes, moisture penetration at bifurcation points, or insulation resistance reduction. Some defects are particularly challenging to locate when cables are deeply buried or in complex environments, potentially creating long-term operational hazards.

Our high-voltage cable outer sheath fault detector with output voltage up to 10kV complies with Chinese national standard GB50150-2006 for cable sheath testing. It's suitable for handover tests, preventive maintenance, and fault location in cross-interconnect systems, enabling rapid detection of 10kV-500kV single-core and three-core cable sheath faults and leakage currents. The instrument also performs 5kV-10kV DC withstand voltage tests (1 minute) on HDPE and PVC cable sheaths, making it essential for maintenance teams at ultra-high voltage cable operators, engineering firms, and power transmission organizations.

Main Features

Over-current, overvoltage, and overheating automatic protection
Enhanced safety with zero start protection
Unique self-discharge design - high voltage automatically resets to zero when output is cut

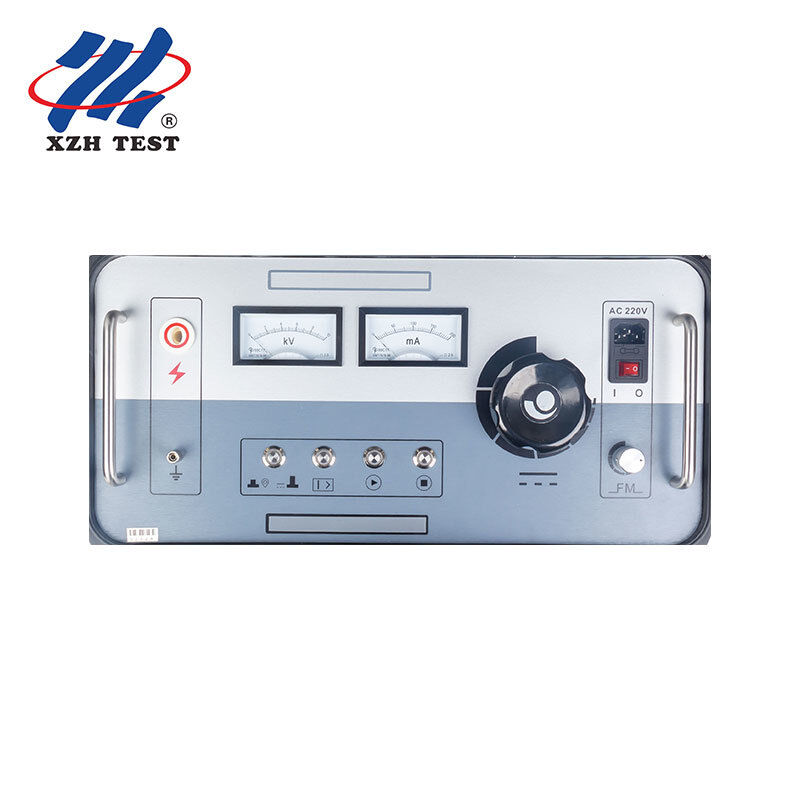

Dual-pointer display for current and voltage measurements
One-button switching between location mode and withstand voltage mode
Comprehensive test coverage with no blind spots
Adjustable receiver sensitivity for precise fault location
Over-current protection switch for both withstand voltage and location modes

Technical Specifications

Input voltage	220V (±10%), 50Hz (±2Hz)
Output voltage	0 ~ 10kV (square wave) adjustable
Output current	0~200mA
Output capacity	2kVA
Frequency adjustment	Min: 0.2Hz, Max: 5Hz (range adjustable)
