Factory Price Cable Outer Sheath Fault Tester

Name: Factory Price Cable Outer Sheath Fault Tester
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHG521B
Price: 1,050.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH Test
Certification:	CE/ISO
Model Number:	XHHG521B

Detail Information

Place of Origin:

China

Brand Name:

XZH Test

Certification:

CE/ISO

Model Number:

XHHG521B

Highlight:

High Light

Highlight:

cable fault tester with warranty

outer sheath fault locator

factory price cable tester

Trading Information

Minimum Order Quantity:

1unit

Packaging Details:

wooden box

Delivery Time:

5-8work days

Payment Terms:

T/T

Supply Ability:

2000unit/year

Product Description

Basic Info.

Model NO.

XHHG521B

Connectors

Coaxial BNC

Test Mode

Point Test

Usage

Digital Cable Tester

Test Region

Unformed

Cable Type

Shielded

Power

Electricity

Certification

Customized

Color

Black

Transport Package

Wooden Case

Specification

5.5kg

Trademark

XZH TEST

Origin

Shaanxi

Product Description

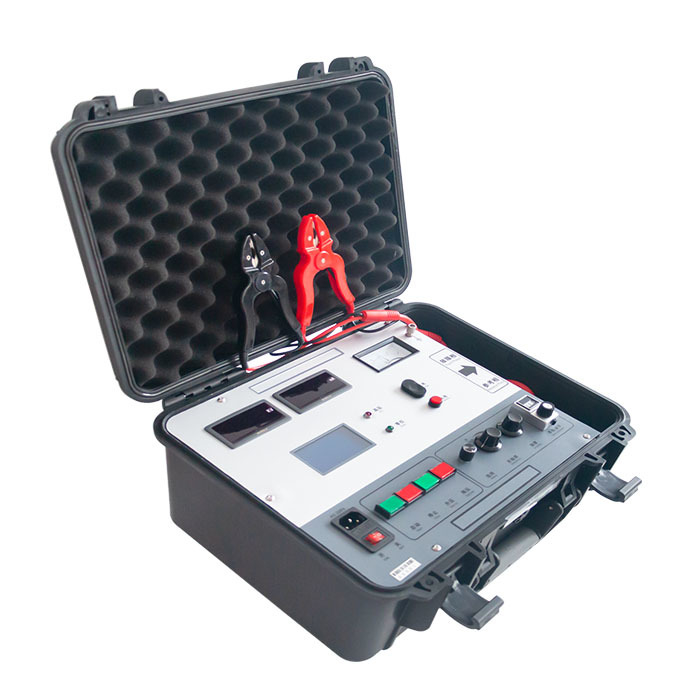

Factory Price Cable Outer Sheath Fault Tester 0

The cable outer sheath fault tester is especially suitable for

1.The high-resistance breakdown point of the cable after laying, especially the low-resistance linear high-resistance breakdown point, such as the linear high-resistance breakdown of the cable middle joint.
2. Flashover type breakdown point. After breakdown, the constant current source can maintain the arc, and there is a stable current through the bridge, the bridge has sufficient sensitivity.
3. Defects that have not been broken down but have low resistance, such as insulation defects that have low cable resistance but do not break down under operating voltage.

The cable outer sheath fault tester is designed based on the principle of MURRAY bridge. It can be used to locate the breakdown points of various wires and cables and the defect points without breakdown but low insulation resistance.
The equipment uses an electric voltage regulator and an R-type transformer to form a high-voltage constant current source, and the button operation increases and decreases the voltage. The no-load voltage is 5000V, the short-circuit current is 100mA, and the high-sensitivity amplifier and galvanometer are used to indicate balance. It forms a balance bridge with a proportional potentiometer, and the whole is placed at a high potential.
The measuring cable is a specially designed double-core high-voltage rubber cable. The four-terminal resistance measurement method avoids the error introduced by the lead resistance.
The operating knob on the panel operates the internal high voltage through the insulating rod. The entire panel is at a low potential.
The equipment is also equipped with a 12806 display screen, one-key operation, the input cable length can be automatically calculated, and the distance to the fault.
The high-voltage source and the electric bridge are integrated in a portable protective box. Therefore, the equipment has high voltage, light weight, convenient operation and safe use.
Compared with the wave reflection method, the bridge balance method has no blind spots, and is particularly suitable for judging short cables and the breakdown point near the end.

Factory Price Cable Outer Sheath Fault Tester 1

Factory Price Cable Outer Sheath Fault Tester 2

Factory Price Cable Outer Sheath Fault Tester 3

1. No-load voltage: ≤4000V
2. Short-circuit current: ≤100mA
3. Positioning proportional accuracy:±(0.1%•L±1) m
4. Weight: 5.5kg
5. Power supply: AC 220 and 9V batteries, Working power supply: AC 220V+/-10% 50Hz

Factory Price Cable Outer Sheath Fault Tester 4

Factory Price Cable Outer Sheath Fault Tester 5
