High Voltage Pulse Generator for Cable Testing up to 35kv Factory Price

Name: High Voltage Pulse Generator for Cable Testing up to 35kv Factory Price
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHV535-4Z
Price: 1,050.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH Test
Certification:	CE/ISO
Model Number:	XHHV535-4Z

Detail Information

Place of Origin:

China

Brand Name:

XZH Test

Certification:

CE/ISO

Model Number:

XHHV535-4Z

Highlight:

High Light

Highlight:

35kv high voltage pulse generator

cable testing pulse generator

high voltage cable fault locator

Trading Information

Minimum Order Quantity:

1unit

Packaging Details:

wooden box

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

2000 unit/year

Product Description

XHHV535-4Z

Model NO.

XHHV535-4Z

Power

Electricity

Certification

CE, ISO

Customized

Color

Black

Output Voltage

0-35kv (40kv Can Be Customized)

Capacitance

4 Microfarad

Transport Package

Exported Wooden Case

Trademark

XZH TEST

Origin

China

Production Capacity

2000PCS/Year

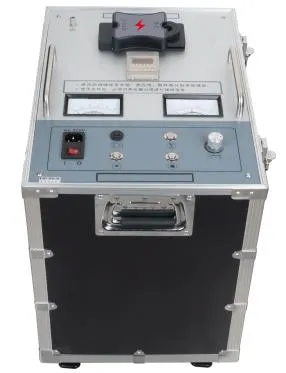

This XHHV535-4Z high voltage surge generator integrates DC high voltage source, energy storage capacitor and discharge ball gap. More than 30 kg, pulse energy storage capacitor more than 20 kg).

The power supply features high-precision, high-stability specialized high-voltage electronic components and high-frequency high-voltage technology. This results in a simple structure and ultra-light weight for the entire machine. To cater to the common practice of using transformers and operation boxes to generate DC high voltage, the pulse generator is designed with a user-friendly approach and safe operation mode. It is truly impact-resistant and can function normally even with a high-voltage ground short circuit. It is currently the lightest and most user-friendly portable DC shock high-voltage equipment available.

High Voltage Pulse Generator for Cable Testing up to 35kv</span></span></span></p>
<div id= Features

★With automatic protection functions for overcurrent, overvoltage and overheating;

★High-voltage pulse output is uniform and controllable;

★The super short-circuit protection function can make the high-voltage output directly short-circuit to the ground;

★With double 1.5-level pointer meter display of current and voltage, it is intuitive and clear, and the process of impulse discharge can be seen at a glance clear

★With zero start protection, and potentiometer return to zero output function, safe and reliable;

★Unique high-voltage measurement design, in the stop state, the voltmeter can indicate the capacitor voltage in real time;

★The discharge time can be arbitrarily set within an appropriate interval.

Other output voltage(for example 15KV, 40KV) can be customized, welcome you contact us for more information.

Impact high voltage	35KV optional
High voltage partial pressure	Voltage Accuracy 1.5 grade
Built-in capacitor	4μF
Working power	AC 220V ± 10% 50Hz ± 2Hz(60Hz can be customized)
Discharge power	2450J
Ambient temperature	-20 ~ + 50 ºC
Impact time	1 ~ 10 seconds
Over temperature protection	85 ºC
Volume/size	430L × 345W × 545H(mm)

High Voltage Pulse Generator for Cable Testing up to 35kv</span></p>
