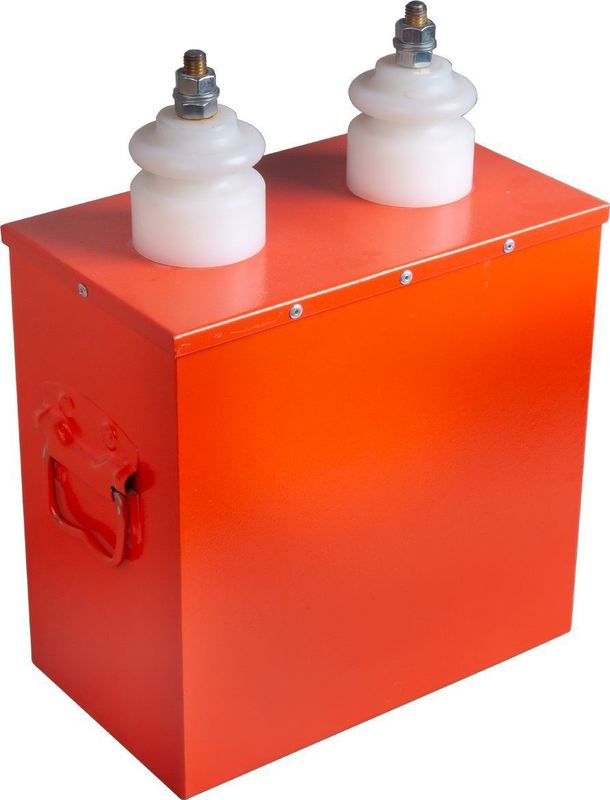

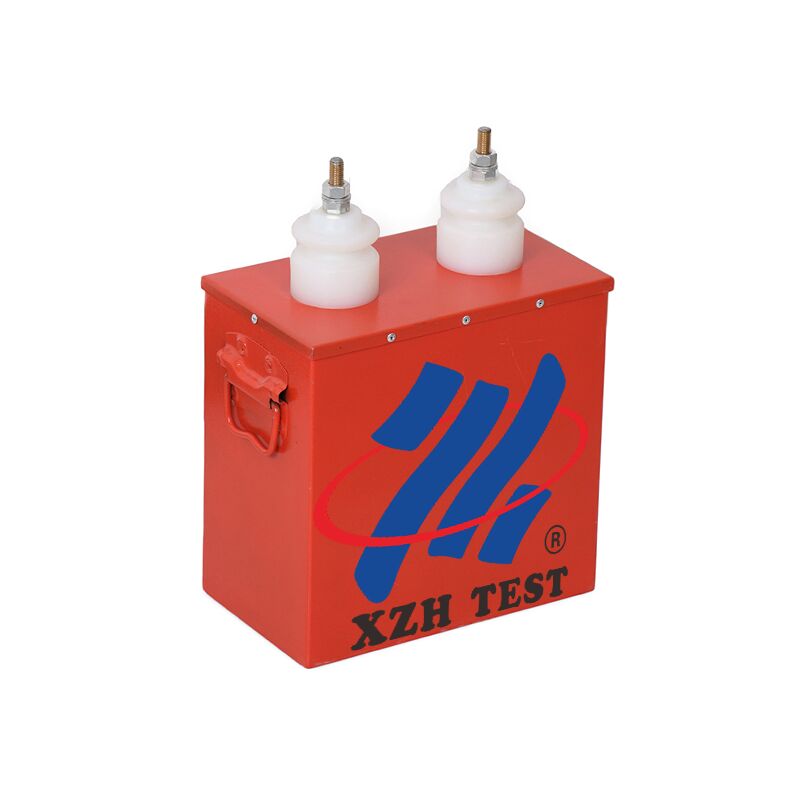

Energy Storage in 15KV 8UF Pulse Capacitor

Name: Energy Storage in 15KV 8UF Pulse Capacitor
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHCC-8/15
Price: 1,050.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH Test
Certification:	CE/ISO
Model Number:	XHCC-8/15

Detail Information

Place of Origin:

China

Brand Name:

XZH Test

Certification:

CE/ISO

Model Number:

XHCC-8/15

Highlight:

High Light

Highlight:

15KV 8UF pulse capacitor

high voltage energy storage capacitor

pulse capacitor for cable fault locator

Trading Information

Minimum Order Quantity:

1uint

Packaging Details:

wooden box

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

2000unit/year

Product Description

XHCC-8/15

Model NO.

XHCC-8/15

Weight

27kg

Transport Package

Wooden Case

Specification

28*24*36

Trademark

XZH TEST

Origin

Shaanxi

The pulse capacitor accumulates the charging energy from a small-power power supply within a specific time interval. At a certain moment when required, it rapidly discharges the stored energy over a brief time span, generating a potent surge current and powerful surge power. It is predominantly utilized in fields including high-voltage impulse discharge test, high-energy physics, oscillation circuit, geological prospecting and so on.

Ambient temperature: -20~+50ºC;
Altitude: ≤2000 meters, if it is greater than 2000 meters, it will be explained separately;
Capacitance error: ±5%;
Voltage resistance between poles: 1.1~1.5Un 2s Pole to shell: 2Un 60s;
Insulation resistance: RC≥7500MΩ·uF;
Loss: ≤0.01 (1kHz).

Model Description
Example: XHCC-8/15 pulse capacitor
1. 4--Rated capacitance 8uF
2. 35--Rated voltage level 15kV

Energy Storage in 15KV 8UF Pulse Capacitor 0

Precautions and Common Faults
1. It is strictly forbidden to hit and collided the high-voltage pulse capacitor, otherwise the internal film will be easily damaged.
2. When using Pulse Energy Storage Capacitors, please read the instructions and the content of the capacitor label to prevent overvoltage use.
3. During use, pay attention to the withstand voltage and safety distance of the connecting wire.
4. After the test is completed, the high voltage end must be fully discharged.
5. During use, if there is abnormal sound inside the capacitor, it is recommended to stop using it, as there is a risk of internal insulation damage.
6. If there are bulges or bulges on the capacitor shell, it is recommended to stop using it, as there is a risk of deterioration of the internal material and insulation reduction.
