Smart LV TDR Cable Fault Locator with Rough Distance Measurement
  • Smart LV TDR Cable Fault Locator with Rough Distance Measurement
  • Smart LV TDR Cable Fault Locator with Rough Distance Measurement

Smart LV TDR Cable Fault Locator with Rough Distance Measurement

Product Details:
Place of Origin: Xi'an ShanXi China
Brand Name: XZH TEST
Certification: CE
Model Number: XHGG501X
Detail Information
Place of Origin:
Xi'an ShanXi China
Brand Name:
XZH TEST
Certification:
CE
Model Number:
XHGG501X
Highlight:

High Light

Highlight:

Smart Cable Fault Locator

,

Rough Distance Measurement LV TDR

,

Low Voltage Cable Tester

Trading Information
Minimum Order Quantity:
1set
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description

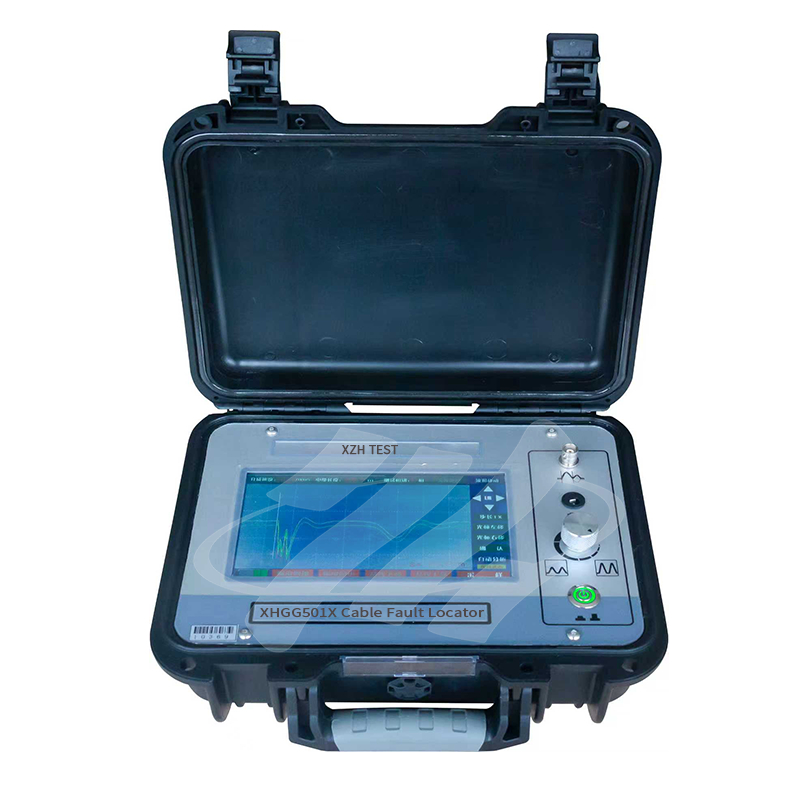

XHGG501X Cable Fault Locator
This advanced cable fault locator combines smart technology with Time Domain Reflectometry (TDR) capabilities for efficient low voltage cable testing. The system provides rough distance measurement to quickly identify fault locations in electrical cables.

The cable fault tester is a special instrument for measuring and analyzing the state of power cable and fault distance. The cable fault tester uses modern electronic technology and computer technology to combine high-speed sampling, narrow output pulse, and small blind area to realize signal filtering, acquisition, data processing, waveform display, waveform analysis to complete the cable length test and cable fault distance test.

Screen size 7"LCD display

Minimum test length

 10m
Resolution 0.1m
Maximum test length not less than 50km
Smart digital interface for intuitive operation
Precise LV TDR technology for accurate fault detection
Rough distance measurement capability
Compact and portable design for field use



Smart LV TDR Cable Fault Locator with Rough Distance Measurement


LCD: interface display;
Signal: Connect the signal output line to the cable;
Charging: Connect the charger to charge the instrument;
Amplitude: amplitude potentiometer, adjust the sampling amplitude;
Switch: Power switch.


Smart LV TDR Cable Fault Locator with Rough Distance Measurement
