10" LV TDR Cable Fault Locator with Rough Fault Distance Detection

Name: 10" LV TDR Cable Fault Locator with Rough Fault Distance Detection
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHGG501D
Price: 1,050.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an ShanXi
Brand Name:	XZH TEST
Certification:	CE
Model Number:	XHGG501D

Detail Information

Place of Origin:

Xi'an ShanXi

Brand Name:

XZH TEST

Certification:

Model Number:

XHGG501D

Highlight:

High Light

Highlight:

10" LV Cable Fault Locator

Rough Fault Distance Cable Fault Detector

TDR Cable Tester

Trading Information

Minimum Order Quantity:

1set

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

3000unit/year

Product Description

XHGG501D TDR Cable Fault Locator

This 10" LV TDR cable fault locator provides rough fault distance measurement for low voltage cable systems. Designed for industrial applications, it offers reliable preliminary fault detection to streamline maintenance and repair processes.

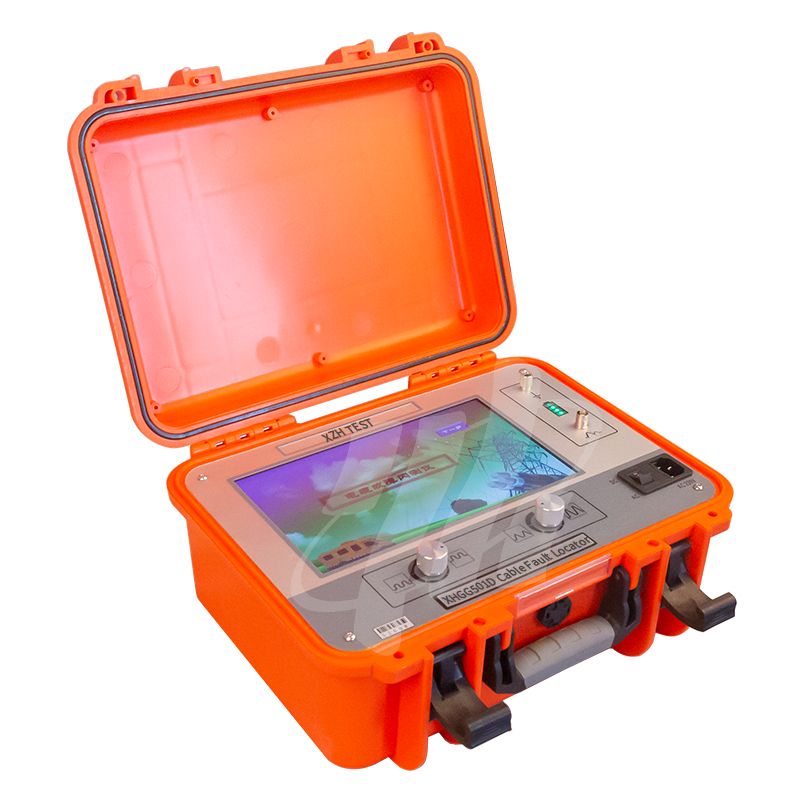

10" LV TDR Cable Fault Locator with Rough Fault Distance Detection 0

XHGG501D is suitable for low-resistance, short-circuit, open-circuit and disconnection faults, as well as leakage high-resistance and flashover high-resistance faults of power cables, coaxial cables, street light cables, buried wires, etc. of various materials with different cross-sections and different media.

Technical Parameters

Sampling frequency	100MHz
Pulse width	0.1uS/2uS
Minimum resolution	0.5m
Test blind zone	≤20m
Ranging range	≤30km
Measurement error	≤±(0.5%×L+1m), L is the cable length
Power supply mode	charging 220VAC±10%, 50Hz/60Hz; built-in 5200mAH lithium battery power supply;
Working conditions	-20～+60℃, relative humidity≤90%;

Product Features

• Single-chip centralized control, touch operation mode, strong anti-interference ability

• It has functions such as distance measurement, speed measurement and resistance measurement

• Fully automatic continuous sampling, waveform capture is timely and accurate

• With low-voltage pulse sampling method, flashover sampling method

10" LV TDR Cable Fault Locator with Rough Fault Distance Detection 1

Hot sale underground cable fault locator/TDR cable fault tester

10" LV TDR Cable Fault Locator with Rough Fault Distance Detection 3
