Smart LV TDR Cable Fault Locator with Impulse Current Testing
  • Smart LV TDR Cable Fault Locator with Impulse Current Testing
  • Smart LV TDR Cable Fault Locator with Impulse Current Testing

Smart LV TDR Cable Fault Locator with Impulse Current Testing

Product Details:
Place of Origin: Xi'an
Brand Name: XZH TEST
Certification: CE
Model Number: XHGG501B
Detail Information
Place of Origin:
Xi'an
Brand Name:
XZH TEST
Certification:
CE
Model Number:
XHGG501B
Highlight:

High Light

Highlight:

Smart Cable Fault Locator

,

LV TDR Cable Tester

,

Impulse Current Testing LV Cable Fault Detector

Trading Information
Minimum Order Quantity:
1set
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description

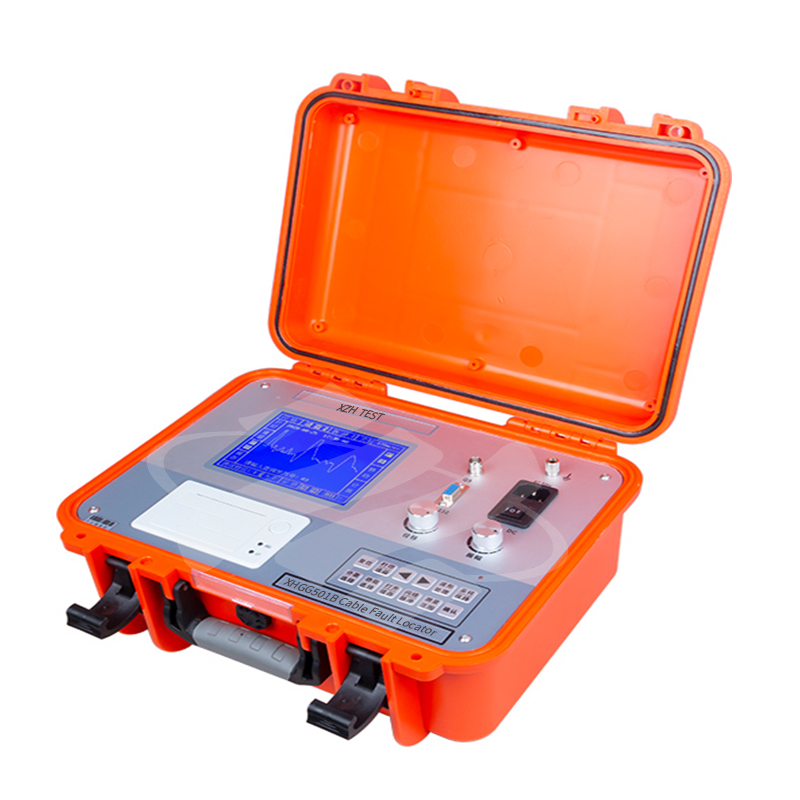

XHGG501B Smart LV TDR Cable Fault Locator
Professional-grade cable fault detection system featuring Time Domain Reflectometry (TDR) technology and impulse current testing capabilities for precise low-voltage cable diagnostics.

XHGG501B is designed for underground power cable fault per-locating, to provide quick accurate and safe measurement solution. Measure the power cable of different sections, different media of various materials, short circuit, open circuit short line fault and the low and middle resistance fault.


Main Features

Advanced Time Domain Reflectometry (TDR) technology
Specialized for low-voltage cable systems
Precise fault location identification
Impulse current testing capability
Smart diagnostic functionality
Sampling mode

automatic continuous sampling, never miss any discharge waveform
Sampling frequency

100MHz, minimum resolution 0.5m (100m/us)
Measurement accuracy Coarse measurement error: ±10m (absolute value) or 1% (relative value)
Sampling frequency

100MHz, minimum resolution 0.5m (100m/us)


Smart LV TDR Cable Fault Locator with Impulse Current Testing


High-voltage flashover method (ARC-single shot) tests the cable fault distance.



Smart LV TDR Cable Fault Locator with Impulse Current Testing

Measuring cable wave speed

Applications: Power distribution, industrial cable maintenance, utility infrastructure, electrical troubleshooting
