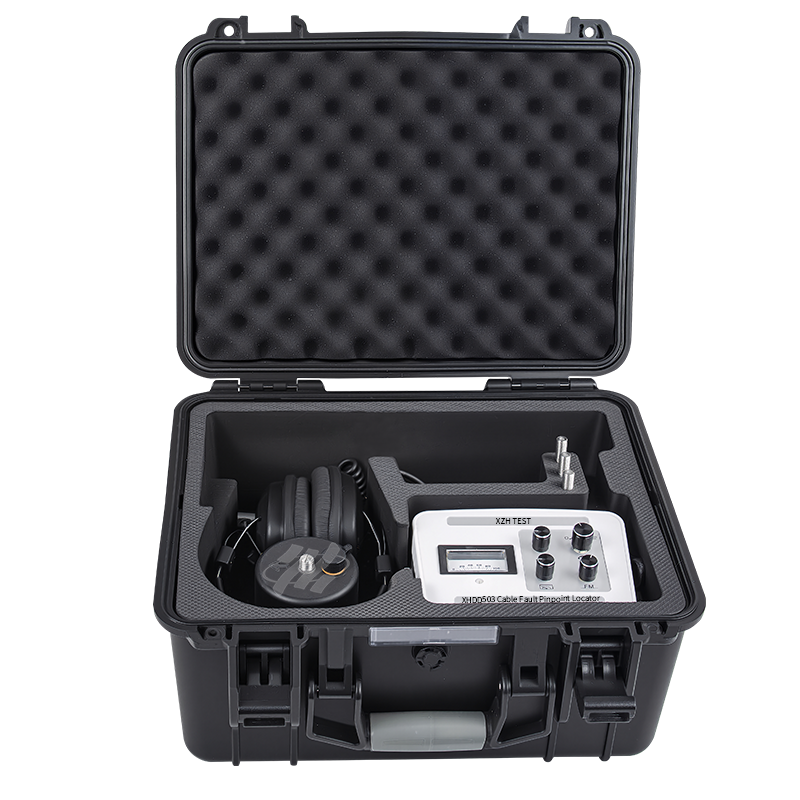

Precise Location Underground Cable Fault Locator with Pinpoint Detection
Precise Location Underground Cable Fault Locator with Pinpoint Detection
  • Precise Location Underground Cable Fault Locator with Pinpoint Detection

Precise Location Underground Cable Fault Locator with Pinpoint Detection

Product Details:
Place of Origin: Xi'an ShanXi China
Brand Name: XZH TEST
Certification: ISO/CE
Model Number: XHDD503
Detail Information
Place of Origin:
Xi'an ShanXi China
Brand Name:
XZH TEST
Certification:
ISO/CE
Model Number:
XHDD503
Highlight:

High Light

Highlight:

Precise Location Cable Fault Locator

,

Pinpoint Underground Cable Fault Detector

,

Underground Cable Fault Pinpoint Locator

Trading Information
Minimum Order Quantity:
1set
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description
Precise Location Cable Fault Pinpoint Locator
The Precise Location Cable Fault Pinpoint Locator is designed for accurate detection and location of underground cable faults. This professional-grade equipment provides reliable performance for utility maintenance and repair operations.
Key Features
  • Accurate underground cable fault detection
  • Precise pinpointing of fault locations
  • Designed for professional utility applications
  • Reliable performance in various underground conditions
Applications
  • Utility maintenance and repair
  • Underground cable fault detection
  • Infrastructure diagnostics

Phase-to-armored wiring method

Precise Location Underground Cable Fault Locator with Pinpoint Detection 0

Figure  Relative armor connection method

When a phase-to-ground fault, a phase-to-phase

combined-to-ground fault, or a disconnection combined with a ground fault occurs, in short, as long as there is phase-to-ground insulation damage, the relative armoring method is preferred. The advantage is that the propagation attenuation of discharge sound at the fault point is small.

As shown in Figure , connect the high-voltage output of the high-voltage generator to the faulty phase of the cable, and connect the test ground to the metal armor of the cable.
