Portable Transformer Tester with Wireless Interfaces| XHBX1501

Name: Portable Transformer Tester with Wireless Interfaces| XHBX1501
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHBX1501
Price: 4,115.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an Shaanxi China
Brand Name:	XZH TEST
Certification:	ISO CE
Model Number:	XHBX1501

Detail Information

Place of Origin:

Xi'an Shaanxi China

Brand Name:

XZH TEST

Certification:

ISO CE

Model Number:

XHBX1501

Highlight:

High Light

Highlight:

Wireless Bluetooth Interface Transformer Tester

Wireless Wi-Fi Interface Transformer Testing Equipment

Portable Transformer Analyzer

Trading Information

Minimum Order Quantity:

1set

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

3000unit/year

Product Description

XHBX1501 Transformer Winding Deformation Analyzer is a portable, PC-driven Frequency Response Analysis (FRA) instrument designed for non-destructive detection of internal mechanical faults in power transformers rated from 63kV to 500kV. Every transformer winding possesses a unique frequency response signature determined by its distributed capacitance (Ci) and inductance (Li) parameters. Events that physically displace windings — such as short-circuit faults, transportation impacts, or electromagnetic forces — alter these signatures. The XHBX1501 employs a laptop-plus-microcontroller architecture for high-precision measurement, transmitting data via Bluetooth or Wi-Fi to a companion PC that automatically processes results, generates professional Word-format reports, and archives baseline signatures for long-term condition trending. Its dual-mode measurement capability — combining linear sweep frequency and segmented sweep frequency methods — ensures compatibility with both established and emerging Chinese industry practices.

XH1501 vs XH1502 Series: The XHBX1501 is the PC-driven wireless configuration offering Bluetooth/Wi-Fi connectivity, dual-mode (linear + segmented) sweep, and automatic Word report generation. The XHBX1502 is the standalone touchscreen configuration with built-in LCD, DDS-based sweep, and higher ±20V signal output.

Technical Specifications

Parameter	Specification
Measurement Performance
In-Phase Test Repeatability	99.9%
Scanning Frequency Accuracy	0.005%
Analog-to-Digital Sampling	Dual-channel 16-bit high-speed A/D
Frequency Scale Display	Linear and logarithmic (user-selectable)
Signal Characteristics
Signal Output Amplitude	±20 V (software-adjustable, max peak ±10V)
Signal Output Impedance	50 Ω
Signal Input Impedance	1 MΩ
Connectivity & Data
Wireless Interfaces	Bluetooth + Wi-Fi (dual wireless)
Control Architecture	Laptop PC + microcontroller (MCU)
Report Format	Auto-generated documents
Sweep Modes	Linear sweep + segmented sweep (dual mode)
Application & Physical
Applicable Transformer Rating	63 kV – 500 kV
Enclosure	Aluminum alloy instrument case (red)
Portability	Compact, lightweight design for field deployment

Key Performance Features

Dual Wireless Connectivity — Simultaneous Bluetooth and Wi-Fi interfaces provide flexible wireless data transmission to the control laptop, eliminating cable connections between the instrument and PC for a safer, uncluttered substation workspace setup.
Dual-Mode Frequency Sweep — Combines both linear sweep frequency and segmented sweep frequency measurement capabilities in a single instrument, ensuring compatibility with the two major technical approaches currently adopted across the Chinese power industry. Users can select the optimal mode for each test scenario.
PC-Driven Architecture with MCU Precision — Laptop control paired with a dedicated single-chip microcontroller combines the measurement precision of embedded hardware with the data processing, storage, and visualization capabilities of a full PC — enabling complex comparative analysis without instrument display limitations.
Auto-Generated Professional Reports — Companion software automatically analyzes test results and generates complete electronic documents in format, including frequency response plots, deviation analysis, and diagnostic conclusions — ready for immediate distribution as commissioning records or maintenance reports.
Dual-Channel 16-Bit High-Speed A/D — High-resolution analog-to-digital sampling captures subtle waveform changes — even tap changer switching events produce clearly visible curve variations during on-site testing, providing real-time confirmation of measurement sensitivity.
Selectable Linear/Logarithmic Frequency Display — Horizontal frequency axis supports both linear and logarithmic scaling, allowing users to choose the display mode that best highlights the frequency regions most relevant to their diagnostic objectives.
Software-Adjustable Signal Amplitude — Output signal amplitude is controlled through software with a maximum peak amplitude of ±10V, enabling optimization of drive levels for different transformer sizes and winding configurations.
Baseline-Independent Diagnostics — Even without historical frequency response data for a known-healthy transformer, comparative analysis of spectra between faulty and healthy coils enables fault assessment. Original winding frequency data, when available, significantly enhances long-term performance tracking and predictive maintenance planning.

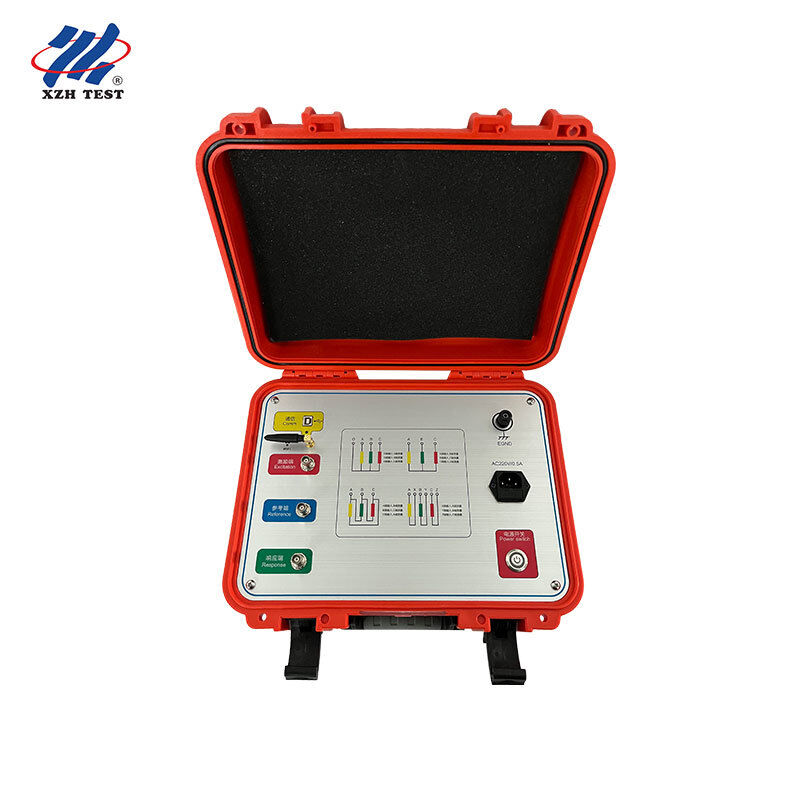

Product Image

XHBX1501

Frequently Asked Questions

Q1: Is this analyzer suitable for mobile field test and diagnostic service providers?

Yes, the XHBX1501 is purpose-designed for mobile diagnostic service providers who travel to multiple client substations. The laptop-based architecture means field technicians can carry a single standard laptop to control the instrument across all client sites — no need to learn a proprietary instrument interface. Wireless Bluetooth/Wi-Fi connectivity eliminates cable tripping hazards in the substation workspace, while the auto-generated Word reports produce professional, client-ready documentation on the spot. The dual-mode sweep capability ensures compatibility regardless of which Chinese industry standard a particular client follows.

Q2: Can this instrument support remote monitoring with wireless data collection?

Absolutely. The XHBX1501’s dual wireless interfaces (Bluetooth + Wi-Fi) enable flexible deployment scenarios that standalone instruments cannot match. Technicians can position the instrument at the transformer terminals while operating the control laptop from a safe distance, or even from within a substation control room. The Wi-Fi interface supports longer-range connectivity for scenarios where the operator needs to maintain physical separation from energized equipment, and the auto-generated Word reports can be immediately emailed to remote engineering teams for collaborative diagnosis without post-processing delays.

Q3: How does it serve aging transformer infrastructure assessment programs?

Utilities with large fleets of aging transformers need systematic, cost-effective condition assessment to prioritize replacement and refurbishment budgets. The XHBX1501’s laptop-based architecture is ideal for these programs: a single standard-issue laptop can serve as the control platform for multiple instruments deployed across different substations, with all test data centralized in a common database. The dual-mode sweep ensures compatibility with both legacy comparison baselines (typically linear sweep) and modern segmented sweep analysis, enabling meaningful trending even when historical measurements were taken with different instrument generations.

Q4: Is it appropriate for electrical engineering education and research institutions?

Universities and research institutes teaching high-voltage engineering and transformer diagnostics benefit from the XHBX1501’s PC-driven architecture. Students can observe the entire measurement and analysis workflow on the laptop screen during laboratory demonstrations, understanding not just the test execution but the underlying frequency response principles. The auto-generated Word reports with full data sets support graduate research projects requiring documented experimental evidence, while the dual-mode sweep capability enables comparative studies between linear and segmented sweep methodologies — valuable for academic publications on FRA diagnostic techniques.

Q5: Can independent electrical engineering consultancies use this for transformer condition surveys?

Independent engineering consultancies conducting transformer condition surveys for multiple utility, industrial, and commercial clients need instruments that produce standardized, professional deliverables. The XHBX1501’s automatic Word report generation eliminates the time-consuming manual report writing that typically follows field testing, enabling consultants to deliver final reports to clients before leaving the site. The wireless connectivity allows the consultant to operate the laptop from a safe zone while the instrument performs the sweep at the transformer terminals, and the dual-mode measurement capability means a single instrument serves all clients regardless of their preferred technical standard.
