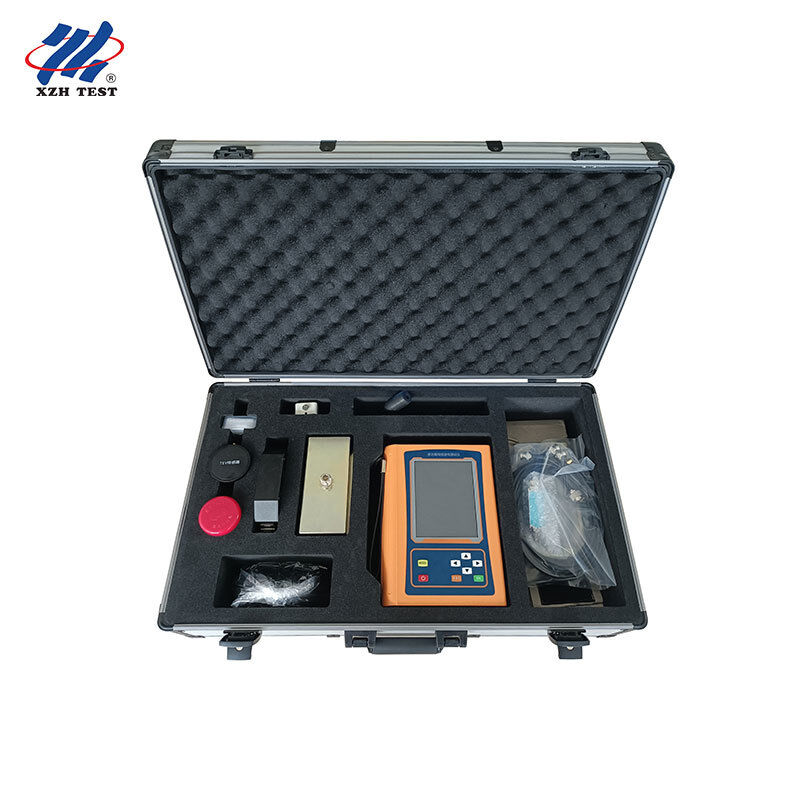

Multifunctional Partial Discharge Tester for Insulation Diagnostics| XHJF801B

Name: Multifunctional Partial Discharge Tester for Insulation Diagnostics| XHJF801B
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHJF801B
Price: 4,115.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE/ISO
Model Number:	XHJF801B

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE/ISO

Model Number:

XHJF801B

Highlight:

High Light

Highlight:

insulation diagnostic tester

transformer partial discharge tester

XHJF801B factory test

Trading Information

Minimum Order Quantity:

1 Unit

Price:

Negotiable

Packaging Details:

wooden packaging

Delivery Time:

5-8 Work days

Payment Terms:

T/T

Supply Ability:

1000 units per year

Product Description

The XHJF801B is a multifunctional partial discharge (PD) tester built for insulation diagnostics in factory and laboratory environments. Combining contact ultrasonic (AE), ultra-high-frequency (UHF), high-frequency (HF) and transient earth voltage (TEV) detection with PRPD/PRPS phase-resolved analysis, it gives transformer and switchgear manufacturers, third-party testing laboratories and research institutes a precise tool for factory acceptance testing, type tests and long-term insulation condition evaluation.

Target Audience

Designed for manufacturers, laboratories & test institutes:

Transformer, switchgear and GIS manufacturers performing factory acceptance & type testing

Third-party testing laboratories and research institutes for insulation diagnostics

Power equipment quality inspection teams evaluating insulation aging and defects

Key Features

Four detection channels: AE ultrasonic, UHF, HF and TEV for comprehensive insulation analysis

PRPD and PRPS phase-resolved analysis for precise discharge source identification

Contact ultrasonic covers SF6 (20~80kHz) and oil-filled (80~200kHz) equipment

High resolution of 0.1dB across all sensors for repeatable measurement data

Data storage, viewing, deletion and waveform recording for test reports

Multi-level alarm thresholds with color-coded amplitude display

Large-capacity lithium battery and compact 1.35kg mainframe for flexible test setup

Linux embedded OS supporting future function expansion and integration

Applications

Factory acceptance testing (FAT) of transformers, switchgear and GIS

Insulation defect location and type tests in the laboratory

SF6 gas-insulated and oil-filled power equipment diagnostics

Long-term insulation aging evaluation for research institutes

Technical Specifications

Sensor / Parameter	Specification
Non-contact Ultrasonic (AA)	Center 40kHz ±1kHz; range -7~68dBuV; resolution 0.1dB
Contact Ultrasonic (AE)	20~80kHz (SF6) / 80~200kHz (oil); dynamic 60dB; resolution 0.1dB
Transient Earth Voltage (TEV)	3MHz~100MHz; range 0~60dBmV; resolution 0.1dB
Ultra-High Frequency (UHF)	300MHz~1500MHz; range -70~-10dBm; resolution 0.1dBm
High Frequency (HF)	0.3MHz~30MHz; range 0~70dB; gain -30~20dB; 50Ω input
Operating Environment	-20°C~50°C; humidity 0~85%
Display	5.6-inch color TFT LCD, 480×640
Dimensions / Weight	230×170×48mm; 1.35kg
Battery Life	About 6 hours (large-capacity lithium battery)

FAQ

Can the XHJF801B be used for factory acceptance testing of transformers?

Yes. Its contact ultrasonic (AE) channel covers 80~200kHz for oil-filled equipment, and the HF channel (0.3~30MHz) measures discharge on grounding leads, making it suitable for transformer FAT and insulation diagnostics.

Does it support PRPD/PRPS analysis for diagnostic reports?

Yes. The instrument provides phase-linear, PRPD and PRPS analysis windows, enabling clear discharge source identification and supporting professional insulation diagnostic reports.

What is the measurement resolution and accuracy?

All detection channels offer a resolution of 0.1dB (0.1dBm for UHF) with a linearity error below ±20%, ensuring repeatable, high-precision measurement data.

Which frequency bands does it cover for different equipment types?

AE: 20~80kHz (SF6) and 80~200kHz (oil-filled); UHF: 300MHz~1500MHz; HF: 0.3MHz~30MHz; TEV: 3MHz~100MHz, covering GIS, transformers, switchgear and cables.

Can data be exported for third-party test reports?

Yes. Test data and waveform recordings can be saved and exported to a USB drive (FAT32), allowing easy integration into factory test reports and third-party certification documentation.
