Multifunctional Partial Discharge Tester for On-Site Live Detection|XHJF801B

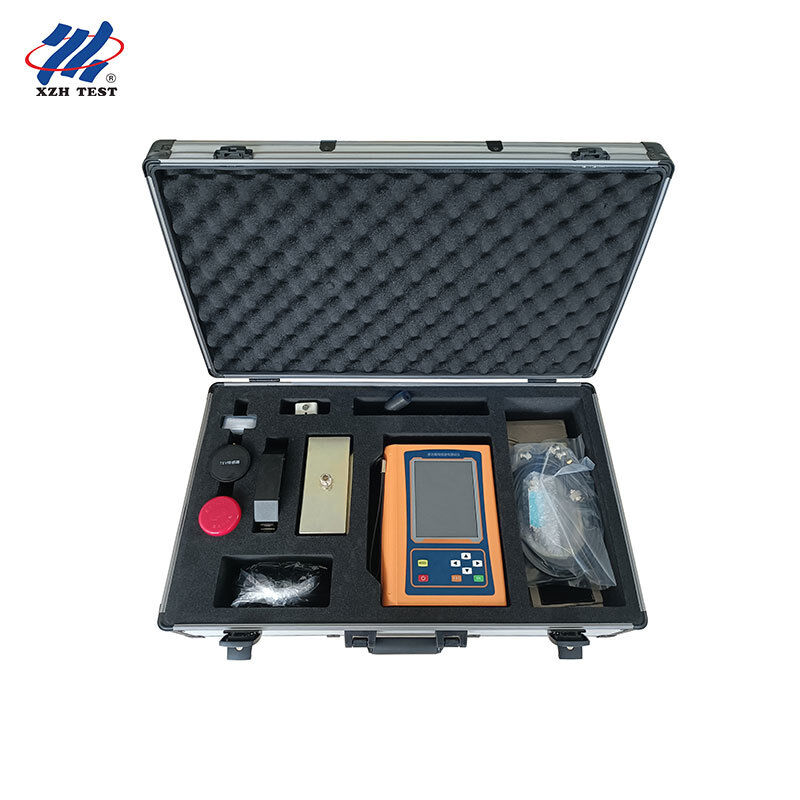

The XHJF801B is a four-in-one multifunctional partial discharge (PD) tester engineered for on-site live detection of high-voltage electrical equipment. Integrating non-contact/contact ultrasonic (AA/AE), transient earth voltage (TEV), high-frequency (HF) and ultra-high-frequency (UHF) detection, it enables utility crews and substation maintenance teams to quickly locate insulation defects in switchgear, GIS, transformers and cable systems during energized operation, reducing unplanned outages and improving grid reliability.

Target Audience

Designed for field inspection & live detection teams:

• Substation & distribution network O&M crews performing energized (live) PD inspection
• Cable line maintenance teams testing cable joints, terminations and shielded leads
• Power utility field engineers conducting condition-based maintenance (CBM) of switchgear and GIS

Key Features

• Four-in-one detection: ultrasonic (AA/AE), TEV, HF and UHF in a single handheld instrument
• Advanced RF & high-frequency signal processing for high sensitivity and anti-interference on site
• Built-in non-contact air-coupled sensor; optional external surface-coupled ultrasonic sensor
• Phase-linear, PRPD and PRPS analysis windows for intuitive discharge diagnosis
• Data storage, viewing, deletion and waveform recording for on-site reporting
• Multi-level attention/alarm thresholds with color-coded amplitude prompts
• Large-capacity lithium battery for 6~8 hours of continuous field operation
• Linux embedded OS for convenient future function expansion

Applications

• On-site live detection of switchgear (switch cabinets) and GIS
• Cable joints, terminations and high-voltage cable insulation
• Power transformers and bushings during energized inspection
• Busbars, insulators and other live electrical equipment

Technical Specifications
