Grounding Lead Tester with Wide Measurement Range

Name: Grounding Lead Tester with Wide Measurement Range
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDT702
Price: 440.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an Shaanxi China
Brand Name:	XZH TEST
Certification:	ISO CE
Model Number:	XHDT702

Detail Information

Place of Origin:

Xi'an Shaanxi China

Brand Name:

XZH TEST

Certification:

ISO CE

Model Number:

XHDT702

Highlight:

High Light

Highlight:

Wide Measurement Range Ground Tester

Grounding Lead Continuity Tester

Continuity Testing Ground Tester

Trading Information

Minimum Order Quantity:

1set

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

3000unit/year

Product Description

Product Overview

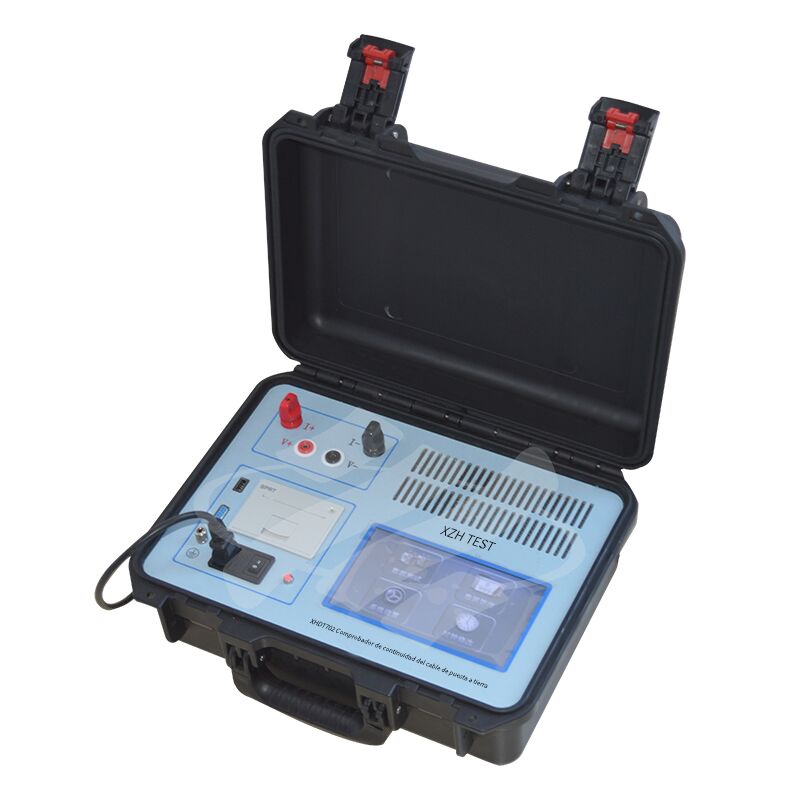

The XHDT702 Grounding Downlead Continuity Tester is a high-performance professional instrument, specially used to measure the continuity resistance between grounding downleads of substation power equipment and the ground grid (or adjacent equipment), providing reliable testing support for power system safety.

Performance Features

Adopting high-speed single-chip microcomputer control, it realizes full automation of testing, simplifies operation steps, and allows even non-professional personnel to operate it easily.
Equipped with advanced power supply technology, it has multiple adjustable current gears and a wide measurement range, perfectly matching various testing requirements in substations.
Intelligent power management technology is integrated to optimize power consumption, ensuring long-term stable operation of the instrument.
Equipped with a 320X240 dot-matrix 65K true-color LCD with ultra-small pixels, the display effect is clear and delicate, and the data can be clearly read even in strong outdoor light.
Built-in power-off storage function can store up to 1000 groups of test data, which is convenient for testers to query historical data and conduct data analysis at any time.
With built-in lithium battery and integrated charger, it supports portable use, no need to rely on external power supply, making on-site testing more convenient and efficient.

Technical Specifications

★ Output Current: 10A, 1A Auto-switching

★ Measurement Range: 10A: 1mΩ～2Ω, 1A: 2Ω～20Ω

★ Resolution: 0.1μΩ

★ Accuracy: ±(0.2% of reading + 2 digits)

★ Power Supply: AC 220V±10% 50Hz±1Hz

★ Ambient Temperature: -10～50℃

★ Ambient Humidity: ≤90%RH

★ Weight: 5kg
