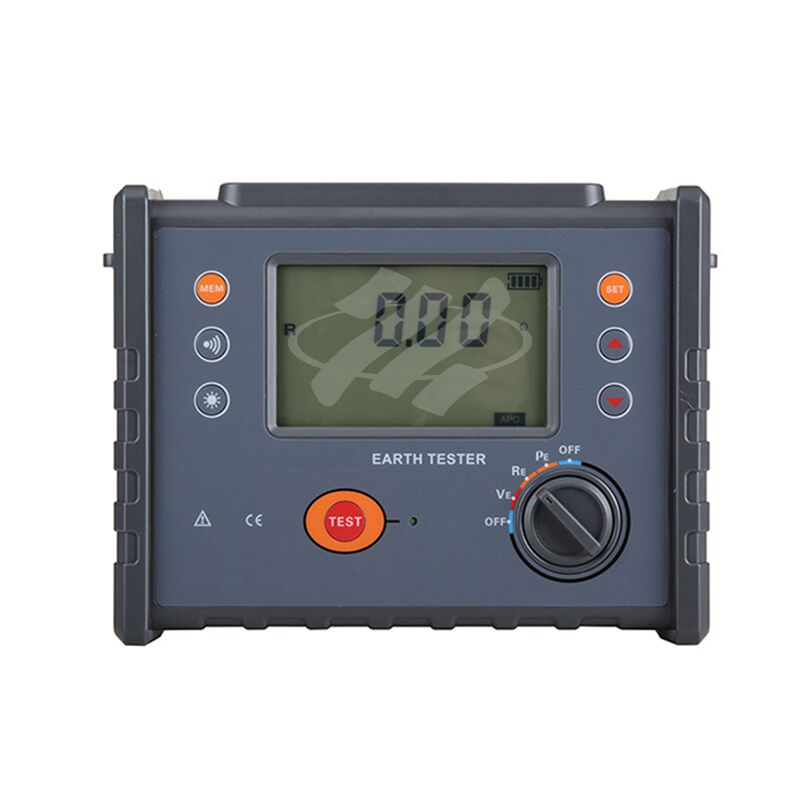

Simple Portable Digital Ground Resistance Tester for Accurate Earth Resistance Measurement
Simple Portable Digital Ground Resistance Tester for Accurate Earth Resistance Measurement
  • Simple Portable Digital Ground Resistance Tester for Accurate Earth Resistance Measurement

Simple Portable Digital Ground Resistance Tester for Accurate Earth Resistance Measurement

Product Details:
Place of Origin: Xi'an Shaanxi China
Brand Name: XZH TEST
Certification: ISO CE
Model Number: XHDJ706
Detail Information
Place of Origin:
Xi'an Shaanxi China
Brand Name:
XZH TEST
Certification:
ISO CE
Model Number:
XHDJ706
Measurement Mode:
Earth Voltage / Earth Resistance
Resistance Measurement Range:
0～1999Ω
Voltage Measurement Range:
0～199.9V
Resistance Measurement Accuracy:
±2%rdg For [20Ω] (Resolution: 0.1Ω); ±2%rdg±3dgt For [200/2000Ω] (Resolution: 1Ω)
Voltage Measurement Accuracy:
±1%rdg±4dgt
Power Supply:
6×R6P(AA) 1.5V Batteries
Dimensions:
170(L)×120(W)×65(H) Mm
Highlight:

High Light

Highlight:

Simple Ground Resistance Tester

,

Portable Earth Resistance Tester

,

Digital Ground Tester

Trading Information
Minimum Order Quantity:
1set
Price:
Negotiable
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description
Product Overview

The XHDJ706 Earth Resistance Tester is designed for measuring the earth resistance of electrical equipment in power systems, meteorology, oil fields, construction, lightning protection and industrial sectors.

Performance Features
  • A 2mA measuring current prevents the earth leakage circuit breaker of the tested loop from tripping during earth resistance testing.
  • Equipped with simple test probes and capable of earth voltage measurement.
  • Activates a warning function when the auxiliary earth resistance value is excessively high; with resistance zero reset function.
  • Dust and water-proof design complies with IEC60529 (IP54) standard.
Technical Specifications
Measurement Mode Earth Voltage / Earth Resistance
Resistance Measurement Range 0～1999Ω
Voltage Measurement Range 0～199.9V
Resistance Measurement Accuracy ±2%rdg for [20Ω] (Resolution: 0.1Ω); ±2%rdg±3dgt for [200/2000Ω] (Resolution: 1Ω)
Voltage Measurement Accuracy ±1%rdg±4dgt
Power Supply 6*R6P(AA) 1.5V batteries
Dimensions 170(L)*120(W)*65(H) mm
