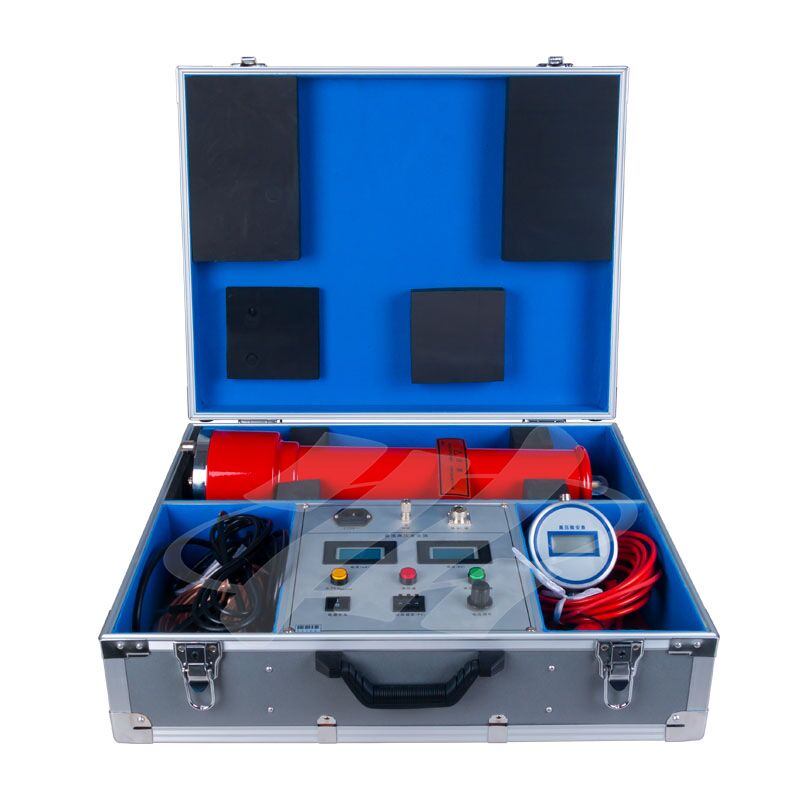

XHZG-120/2 Single Phase DC Resistance Tester | Xi'an Xuhui Electric
XHZG-120/2 Single Phase DC Resistance Tester | Xi'an Xuhui Electric
  • XHZG-120/2 Single Phase DC Resistance Tester | Xi'an Xuhui Electric

XHZG-120/2 Single Phase DC Resistance Tester | Xi'an Xuhui Electric

Product Details:
Place of Origin: Xi'an, Shaanxi, China
Brand Name: XZH TEST
Certification: ISO,CE
Model Number: XHZG-120/2
Detail Information
Place of Origin:
Xi'an, Shaanxi, China
Brand Name:
XZH TEST
Certification:
ISO,CE
Model Number:
XHZG-120/2
Rated Output Voltage:
30kV/50kV/80kV
Accuracy:
3%
Output Frequency:
0.1Hz, 0.05Hz, 0.02Hz
Load Capacity:
Max 1.1μF@0.1Hz, Max 2.2μF@0.05Hz, Max 5.5μF@0.02Hz
Positive & Negative Peak Voltage Error:
≤3%
Voltage Waveform Distortion:
≤5%
Highlight:

High Light

Highlight:

Single Phase DC Resistance Tester

,

Cable Fault Locator with warranty

,

XHZG-120/2 Resistance Tester

Trading Information
Minimum Order Quantity:
1 unit
Price:
Negotiable
Packaging Details:
wooden packaging
Delivery Time:
8-10 days
Payment Terms:
T/T
Supply Ability:
2000units/year
Product Description
Product Overview

The XHDP series ultra-low frequency high-voltage generator adopts modern digital frequency conversion technology and microcomputer automatic control. It realizes automatic voltage rise, voltage drop, measurement and protection functions. This device features compact size, light weight and large-screen LCD display. It presents data clearly and intuitively, supports output waveform display and test report printing.

Performance Features
  • Current, voltage and waveform data can all be sampled from the high-voltage side.
  • Equipped with over-current and over-voltage protection, with response time within 20ms.
  • Adopts high and low voltage closed-loop negative feedback control circuit, eliminating the capacitance rise effect of output voltage.
Technical Parameters
  1. Rated Output Voltage: 30kV/50kV/80kV, Accuracy: 3%
  2. Output Frequency: 0.1Hz, 0.05Hz, 0.02Hz
  3. Load Capacity: Max 1.1μF@0.1Hz, Max 2.2μF@0.05Hz, Max 5.5μF@0.02Hz
  4. Positive & Negative Peak Voltage Error: ≤3%
  5. Voltage Waveform Distortion: ≤5%
  6. Operating Environment: Temperature -10℃～+40℃; Humidity ≤85%RH
  7. Power Supply: 50Hz Frequency, 220V±5% Voltage

Tags:

High Voltage Cable Fault Locator,

High Voltage Pulse Generator,

Portable Cable Fault Locator
