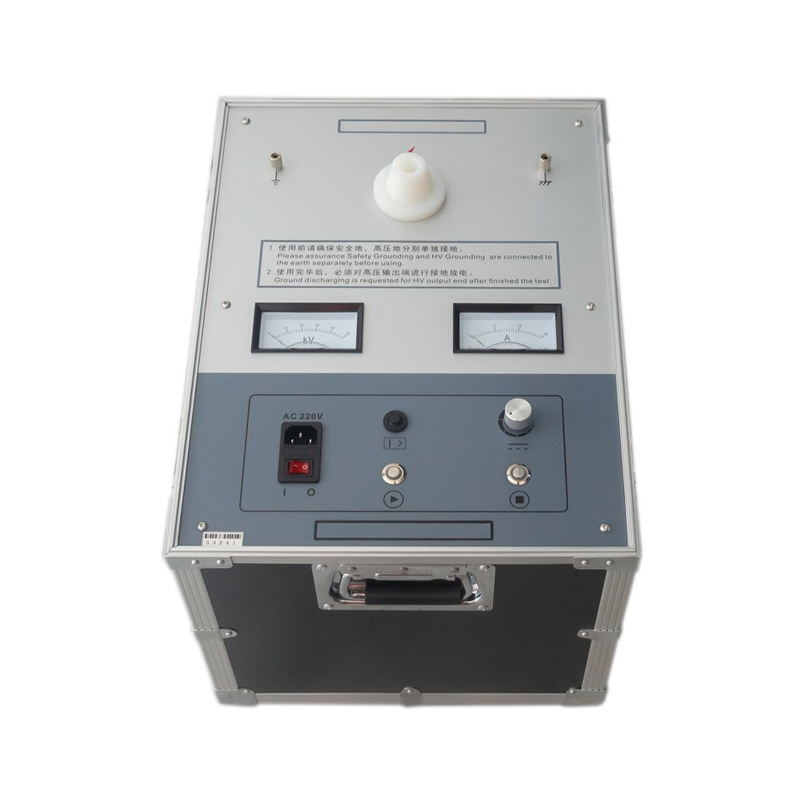

35kV DC Hipot Tester for Cable Fault Detection

Name: 35kV DC Hipot Tester for Cable Fault Detection
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHV508-5
Price: 7,970.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE/ISO
Model Number:	XHHV508-5

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE/ISO

Model Number:

XHHV508-5

Highlight:

High Light

Highlight:

35kV DC Hipot tester for cables

Cable fault detection tester

High voltage cable tester

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

1000 units per year

Product Description

DC Hipot Tester for Impulse Discharge and DC Withstand Voltage Test

The XHHV508-5 DC high voltage power supply is designed for impulse discharge during cable fault testing at voltage levels up to 35kV, as well as DC withstand voltage testing of other electrical equipment. This innovative solution replaces traditional heavy test transformers and control boxes, offering superior portability and safety features.

Key Features

Over-current, over-voltage, and over-heating automatic protection

Uniform impulse discharge with controllable discharge speed

Super short-circuit protection allows direct grounding of high-voltage output

Dual 1.5-level pointer meter display for current and voltage

High-voltage side voltage measurement for real-time accuracy

Zero-position start protection for enhanced safety

Automatic self-discharge when high-voltage output is cut off

Real-time capacitor voltage indication in stopped state

Technical Specifications

Parameter	Value
Impact high voltage	0~35kV (optional)
Short circuit current	320mA
High voltage division accuracy	1.5 level
External capacitor	2μF~4μF
Impact time	1~8 seconds
Impact power	500W
Over temperature protection	85ºC
Dimensions	400mm × 310mm × 320mm (L×W×H)
Weight	12kg
Power supply	AC 220V ±10%, 50Hz ±2Hz
Operating temperature	-20ºC to +50ºC
