Digital 120kv DC Hipot Tester DC Withstand Voltage DC Leakage Current Tester

Name: Digital 120kv DC Hipot Tester DC Withstand Voltage DC Leakage Current Tester
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHZG-120
Price: 7,970.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an, Shaanxi, China
Brand Name:	XZH TEST
Certification:	ISO
Model Number:	XHZG-120

Detail Information

Place of Origin:

Xi'an, Shaanxi, China

Brand Name:

XZH TEST

Certification:

ISO

Model Number:

XHZG-120

Model NO.:

XHZG-120

Transport Package:

Wooden Box Filled With Foam Inside

Specification:

25kg

Trademark:

XHZG-120

Supply Ability:

1000pieces/Year

Customization:

Available

Warranty:

12 Months

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

wooden case

Delivery Time:

5-8 days

Payment Terms:

T/T

Supply Ability:

1000 PCS/Year

Product Description

XHZG-120 Digital 120kv DC Hipot Tester DC Withstand Voltage DC Leakage Current Tester

XHZG series DC hipot tester is mainly used for power line department, industrial and mining, metallurgy, steel and other enterprise power departments to conduct DC withstand voltage test or DC leakage current test on high voltage electrical equipment such as zinc oxide arrester, power cable, transformer, circuit breaker and generator.

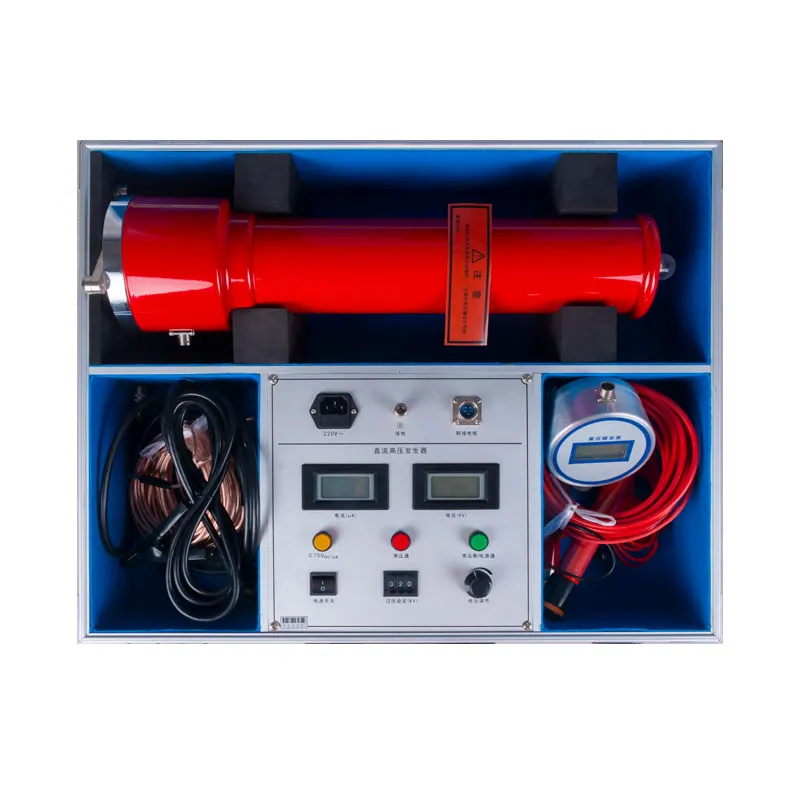

Digital 120kv DC Hipot Tester DC Withstand Voltage DC Leakage Current Tester 0

Welcome you contact us for more information

1. The IF voltage doubler circuit is applied, and PWM pulse width modulation technology and high power IGBT devices are applied.
2. With large voltage feedback, the output voltage has high stability and the ripple coefficient is ≤1%.
3. Full-scale smooth pressure regulation, accuracy ≤0.5%, stability ≤1%.
4. The boost potentiometer starts from zero and has a 0.75 UDC1mA button with an accuracy of ≤1%.
5. The overvoltage protection is set by dialing, and the error is ±1% at a glance.

Model Specs	60/2	60/3	120/2	120/3	200/2/5
Output voltage( kV)	60	60	120	120	200
Output current mA	2	3	2	3	2/5
Output Power (W)	120	180	240	360	400/1000
Discharge Power (mA)	2	3	2	3	2/5
Control Box Weight (kg)	2	2	2	2	13.1
Double pressure cylinder weight (kg)	2.5	2.5	4	4	7.9
Double pressure cylinder specifications (mm)	Ф90 340	Ф90 340	Ф90 470	Ф90 470	Ф110 810

Voltage measurement error

1%(Full scale)±1bite

Current measurement error

1%(Full scale)±1bite

Overvoltage setting error

The overvoltage protection adopts the dial code setting, which is clear at a glance (precision ≤1.0%)

0.75 Switching error

High-precision 0.75UDC-1mA one-touch button (precision ≤1.0%)
Most suitable for zinc oxide arrester test

Ripple factor

Working Method

Intermittent use: 30 minutes at rated load
1.1 times rated voltage usage: 10 minutes
