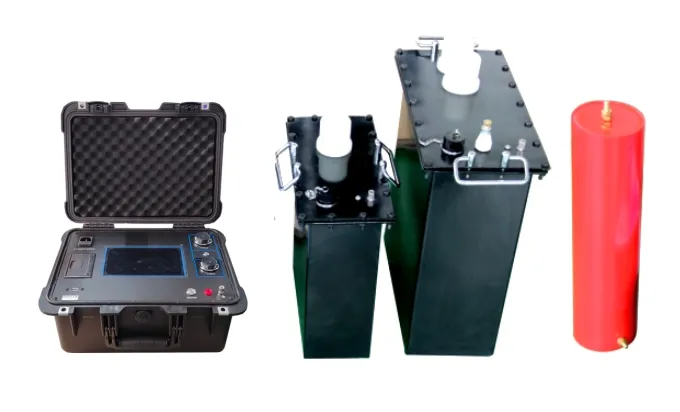

VLF Hipot Tester Ultra-Low Frequency High Voltage Generator 30/50/60/80kv

Name: VLF Hipot Tester Ultra-Low Frequency High Voltage Generator 30/50/60/80kv
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDP series
Price: 7,970.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE, ISO
Model Number:	XHDP series

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE, ISO

Model Number:

XHDP series

Model NO.:

XHDP Series

Test Mode:

Saved Test

Usage:

Network Cable Tester, HDMI Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester

Test Region:

Forming Cable

Cable Type:

Shielded

Power:

Electricity

Customized:

Customized

Color:

Orange

Transport Package:

Wooden Box With Foam Inside

Specification:

350mm*280mm*170mm

Trademark:

XZH TEST

Origin:

China Xi′ An

HS Code:

8543201000

Supply Ability:

100 Pieces /Year

Customization:

Available

After-sales Service:

Warranty Certificate

Warranty:

1 Year

Highlight:

High Light

Highlight:

VLF Hipot Tester 30-80kV

Ultra-Low Frequency Hipot Tester

AC DC High Voltage Generator

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

2000unit/year

Product Description

XHDP series

Model NO.

XHDP Series

Usage

Digital Cable Tester

Power

Electricity

Certification

CE, ISO

Customized

Color

Black

Transport Package

Wooden Box Filled with Foam Inside

Trademark

XZH TEST

Origin

China Xi'an

HS Code

9030390000

Production Capacity

200units/Year

This product is designed for AC and DC withstand voltage tests on large-capacitance test items such as cables and motors. It is not suitable for small-capacitance or resistive test items such as zinc oxide arresters.

Product features for this type of VLF cable tester:

1.The ultra-low frequency with rated voltage less than or equal to 60kV adopts a single link structure (a booster); The ultra-low frequency of more than 60kV adopts a series structure (two booster in series), which greatly reduces the overall weight and enhances the load capacity, and the two booster can be used separately to achieve a multi-purpose machine.
2.Current and voltage data are sampled directly from the high voltage side, so the data is accurate.
3. Intelligent comprehensive protection function: there is no need to set the current and voltage protection value, the instrument can calculate the overvoltage and overcurrent protection value according to the size of the test capacity and the test voltage value, and can also protect the voltage and current mutation, so it can capture the discharge situation. The protection operation time is less than 20ms.
4.150kV high voltage line output, safe and reliable.
5.Because of the closed-loop negative feedback control circuit, the output has no capacity rise effect.
6.Added DC and dielectric loss test functions, which can simultaneously measure the dielectric loss, capacitance and insulation resistance of the test product during the withstand voltage test.

We can customize output voltages of 30kV, 40kV, 50kV, 60kV, 80kV, and 90kV. You can choose to configure the tester with AC withstand voltage only, AC and DC withstand voltage capabilities, or AC and DC and dielectric loss testing capabilities.

Rated voltage	Carring capacity	Application range
30kV(peak)	Automatic frequency change:0.1Hz-0.01Hz On-load capacity:<=10µF	Used for voltage test of cables and motors within 10KV
40kV(peak)	Automatic frequency change:0.1Hz-0.01Hz On-load capacity:<=10µF	Used for voltage test of cables and motors within 10KV
50kV(peak)	Automatic change frequency: 0.1Hz-0.01Hz Load capacity: <=6µF	Used for voltage test of cables and motors within 15KV
60kV(peak)	Automatic change frequency: 0.1Hz-0.01Hz Load capacity: <=5µF	Used for voltage test of cables and motors within 25KV
80kV(peak)	Automatic change frequency: 0.1Hz-0.01Hz Carrying capacity: <=6µF(within 50kV), <=4µF(above 50kV)	Used for voltage resistance test of cables and motors within 35KV

Output rated voltage	30kV-90kV The different specifications are shown in above Table
Output frequency	Automatic conversion range: 0.1Hz-0.01Hz
Carrying capacity	See above Table
AC voltage resolution	0.1kV
Voltage accuracy	3%
AC current resolution	0.1mA
AC current accuracy	3%
Voltage positive and negative peak error	≤ 3%
Voltage waveform distortion	≤ 3%
Conditions of use	indoor and outdoor; Temperature: -10ºC∽+40ºC; Humidity: ≤ 85%RH
Input power	Frequency 50Hz, voltage 220V±5%(or frequency 60Hz, voltage 110V±5%). If the micro generator is used for power supply, the frequency conversion generator should be used, and the ordinary generator can not be used, because the ordinary generator speed is unstable, which will make the boost voltage abnormal and damage the instrument.
