Cable Fault Locator
>
Portable Double Shooter Remote Control Safe Cable Piercing Cable Spiker

Portable Double Shooter Remote Control Safe Cable Piercing Cable Spiker

Product Details:
Place of Origin: Xi'an, Shaanxi, China
Brand Name: XZH TEST
Certification: CE
Model Number: XHSZ506S
Detail Information
Place of Origin:
Xi'an, Shaanxi, China
Brand Name:
XZH TEST
Certification:
CE
Model Number:
XHSZ506S
Recognition Method:
By The Swing Direction
Jaw Diameter:
Φ125mm
Power:
1.5kVA (intermittent Momentary)
Signal Sending Frequency:
Min: 0.4Hz, Max: 1Hz
Weight:
11.00kg
Dimensions:
430X360X225mm
Trading Information
Minimum Order Quantity:
1 unit
Packaging Details:
Wooden case
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
500 units/month
Product Description

The cable spiker XHZS506S is a special equipment, mainly used for further destructive identification of cables after cable identification and before sawing.



In the process of power cable construction, when migrating and repairing the laid cables, it is often necessary to saw off the relevant cables. In order to ensure the operator's personal safety foolproof. First of all, it is necessary to judge whether the relevant cables on site are live or not. Only after confirmation can the relevant cables be sawed off.



The method of absolutely confirming whether the cable is live is currently only the method of short-circuiting the cable relative to the ground or relative to the phase by mechanical puncture.



The cable stabbing device adopts a remote control/automatic piercing device, which can damage and pierce the relevant cables once on site. If the cable is electrified, the cable will explode when punctured, otherwise the cable will not be electrified.

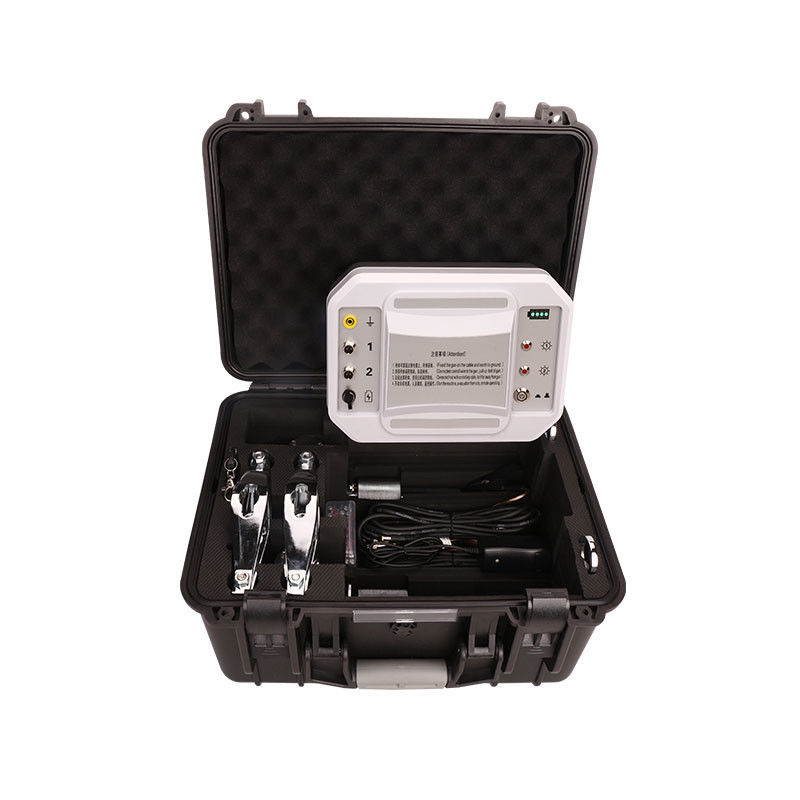

It is composed with two parts: the shooter and the controller:



Portable Double Shooter Remote Control Safe Cable Piercing Cable Spiker 0

Working principle
The shooter is a low-speed piston type special device specially designed for stabbing cables. Its structure is reasonable and light, and it is extremely convenient to install and fix. It can be installed at any angle. The controller adopts advanced electronic detection circuit. The device can remotely launch an iron nail to the cable, causing a short circuit of the cable. If the cable is electrified, it must shoot and discharge. If there is no electricity, it is a cable that has been powered off.




Technical Parameters
1. Shooter: 2 shooters;
2. Remote control distance: more than 10 meters, can be remotely controlled through a wall;
3. Control line length: 5 meters;
4. Clamp caliber: φ30-150mm;
5. Working power supply: charging AC 220V/50Hz, built-in battery can work continuously for more than 10 hours;
6. Controller: 270×230×120mm 2.5kg;
7. Complete set: 470×380×210mm 15.5kg (double shooters).

Nail specification


Cable diameter(mm) 30 40 50 60 70 80 90 100
Nail specification PS27C8 PS37C8 PS47C8 PS52C8

Bullet power specification
Standard equipped: S1 red (power level 5) 50pcs, PS52C8 nails 50pcs
Spec. black blue yellow red recommend 35kV and below Above 35kV
Power Minimum small medium Big with S1 yellow with S1 red(6.8*11mm)








Working description
For the cable spiker, a single shooter can only produce one short circuit point on the cable at a time, and a double shooter can produce two short circuit points on the cable at a time. Since the three-phase cable is usually in the shape of a "品", if a single shooter is pierced, it will just pierce in the gap of the "品" (that is, the gap between the two phases) without penetrating the entire cable. Existence cannot create a real short circuit, that is, it cannot achieve the purpose of stabbing. It is recommended to use a dual shooter configuration. When the included angle of the dual shooters is not 120°, at least one shooter can achieve the purpose of stabbing and form a short circuit point.







Portable Double Shooter Remote Control Safe Cable Piercing Cable Spiker 1


Product Features
1. When the angle between the two shooters is not 120°, at least one shooter can achieve the purpose of piercing and form a short circuit point;


2. It adopts wired + wireless remote control, and can be remotely controlled through a wall;


3. It can be used for both AC and DC, with a built-in lithium battery pack and a large-capacity energy storage device, and has a long charging time;


4. It is small in size and light in weight, very suitable for outdoor use.




Operation interface introduction

Portable Double Shooter Remote Control Safe Cable Piercing Cable Spiker 2

1. Grounding: grounding point of the instrument, safety protection;


2. Output 1: used to connect to the shooter body;


3. Output 2: used to connect to the shooter body;


4. Charging: DC12V charging port, connect to a 12V charger to start charging;


5. Switch: turn on/off the working power;


6. Indicator light 1: when output 1 is working, the indicator light is on;


7. Indicator light 2: when output 2 is working, the indicator light is on;


8. Power indicator: when the built-in battery is working, it indicates the battery power in real time.




Field wiring

Portable Double Shooter Remote Control Safe Cable Piercing Cable Spiker 3


Packing list

Portable Double Shooter Remote Control Safe Cable Piercing Cable Spiker 4

1. Controller: control the shooter to carry out the cable puncture action process;


2. Remote control: The two buttons (A.B) of the remote control correspond to output 1 and output 2 of the controller;


3. Bullet: Loaded into the chamber when stabbing;


4. Shooting nails: put them into the nail tube when stabbing;


5. Shooter


6. Output line: the connection line between the controller and the shooter;


7. Ground wire: the connection wire between the shooter and the ground drill;


8. Ground drill: Generally, there is no formal grounding point on site, so find a reliable ground to insert;


9. Screwdriver, socket, test tube brush: accessories for cleaning the shooter;


10. Power cord (charger): Control box charging cable.



Portable Double Shooter Remote Control Safe Cable Piercing Cable Spiker 5Portable Double Shooter Remote Control Safe Cable Piercing Cable Spiker 6


Portable Double Shooter Remote Control Safe Cable Piercing Cable Spiker 7
