Underground Cable Fault Locator with Remote Control Spiking Tool
Underground Cable Fault Locator with Remote Control Spiking Tool
  • Underground Cable Fault Locator with Remote Control Spiking Tool
  • Underground Cable Fault Locator with Remote Control Spiking Tool
  • Underground Cable Fault Locator with Remote Control Spiking Tool
  • Underground Cable Fault Locator with Remote Control Spiking Tool

Underground Cable Fault Locator with Remote Control Spiking Tool

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHZS506S
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHZS506S
Highlight:

High Light

Highlight:

underground cable fault locator with remote

,

cable fault locator spiking tool

,

remote control cable fault detector

Trading Information
Minimum Order Quantity:
1 unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Product Description

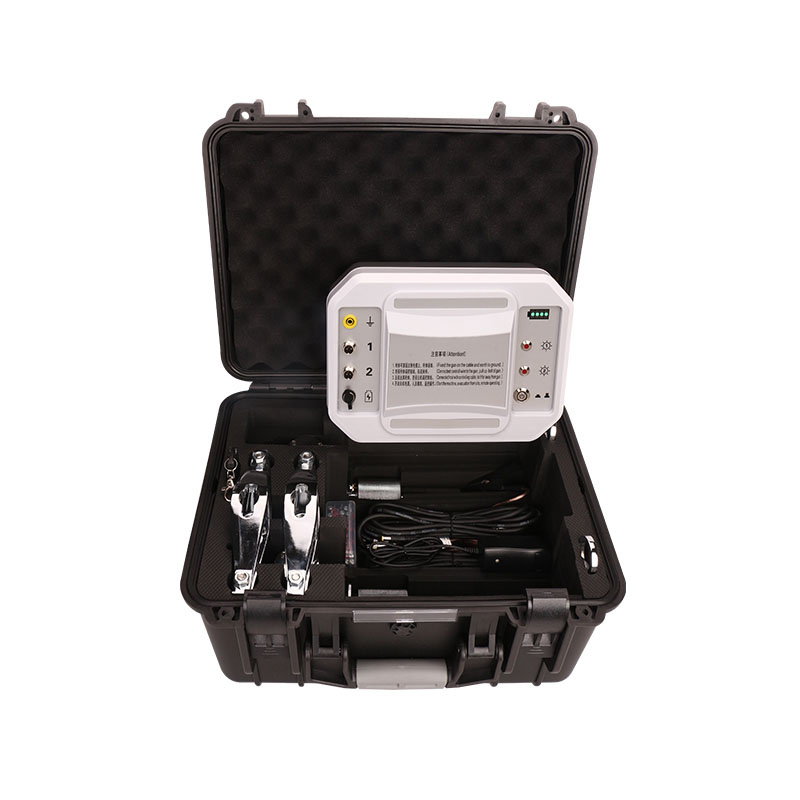

Hotsale Underground Cable Fault Locator Spiking Tool Cable Spiker
The cable spiker is specialized equipment used for destructive cable identification after initial detection and before sawing. Essential for power cable construction, migration, and repair work, it ensures operator safety by definitively determining whether cables are live before cutting.
The device uses mechanical puncture to create a short circuit between cable phases or to ground - the only absolute method to confirm cable status. Our remote-controlled/automatic piercing system safely tests cables on-site: electrified cables will explode when punctured, while non-electrified cables remain unaffected.
Product Specifications
Underground Cable Fault Locator with Remote Control Spiking Tool 0
Recognition method: Swing direction of hands
Jaw: 125mm
Power: 1.5kVA (intermittent momentary)
Weight: 11.00kg
Dimensions: 430×360×225mm
Signal frequency: 0.4Hz-1Hz (adjustable)
Key Features
  • Effective operation even when gun bodies aren't at 120° angle - at least one will create necessary short circuit
  • Dual wired + wireless remote control with through-wall capability
  • AC/DC compatible with built-in lithium battery and high-capacity energy storage
  • Compact, lightweight design ideal for field use
Technical Parameters
Component Specification
Shooting device 2 gun bodies
Remote control distance >10m (through-wall capable)
Control line length 5m
Clamp diameter φ30-150mm
Power supply AC 220V/50Hz charging, 10+ hour battery runtime
Controller dimensions 270×230×120mm (2.5kg)
Complete set 470×380×210mm (15.5kg for double gun 506Y)
Nail Specifications
Cable diameter (mm) 30 40 50 60 70 80 90 100
Nail specifications PS27C8 PS37C8 PS47C8 PS52C8
Bullet Power Specifications
Color Black Blue Yellow Red Recommended Use
Power Level Smallest Small Middle Big 35kV and below: Yellow
35kV and above: Red (6.8×11mm)
Standard configuration: 50 rounds S1 red (power level 5) bullets, 50 rounds PS57C8 nails
Operation Interface
Underground Cable Fault Locator with Remote Control Spiking Tool 1
  • Grounding: Instrument grounding point for safety protection
  • Output 1/2: Connection ports for shooter bodies
  • Charging: DC12V charging port
  • Switch: Power on/off control
  • Indicator lights: Show output 1/2 activity and battery status
Underground Cable Fault Locator with Remote Control Spiking Tool 2 Underground Cable Fault Locator with Remote Control Spiking Tool 3
Component Overview
  • Controller: Manages cable puncture action sequence
  • Remote control: Buttons A/B correspond to outputs 1/2
  • Bullet: Loaded into chamber for stabbing
  • Shooting nails: Inserted into nail tube during operation
  • Output line: Connects controller to shooter
  • Ground wire/drill: Provides grounding when formal points unavailable
  • Accessories: Screwdriver, socket, test tube brush for maintenance
  • Power cord: Control box charging cable
