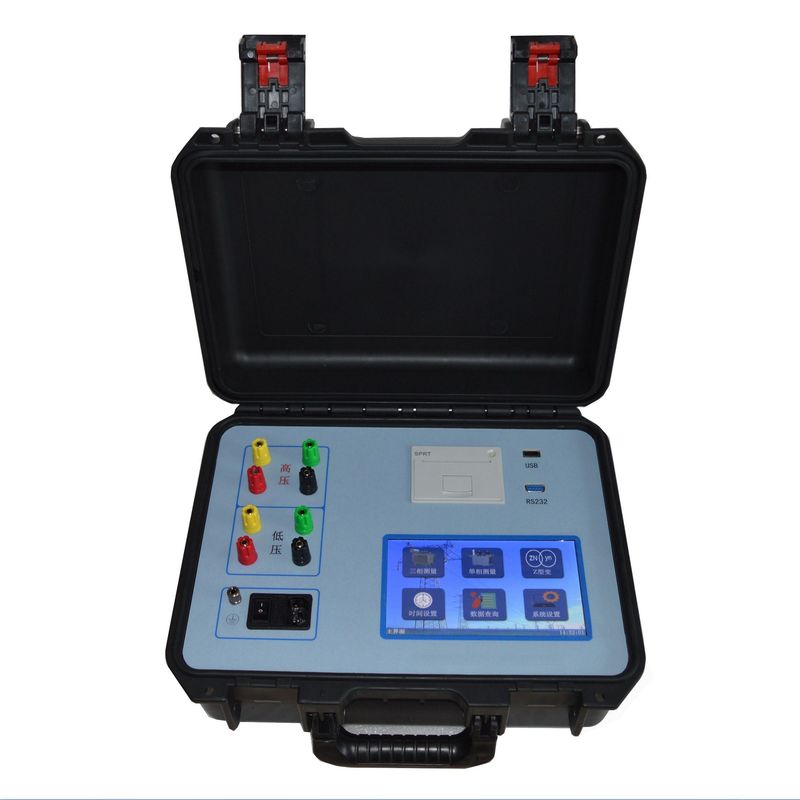

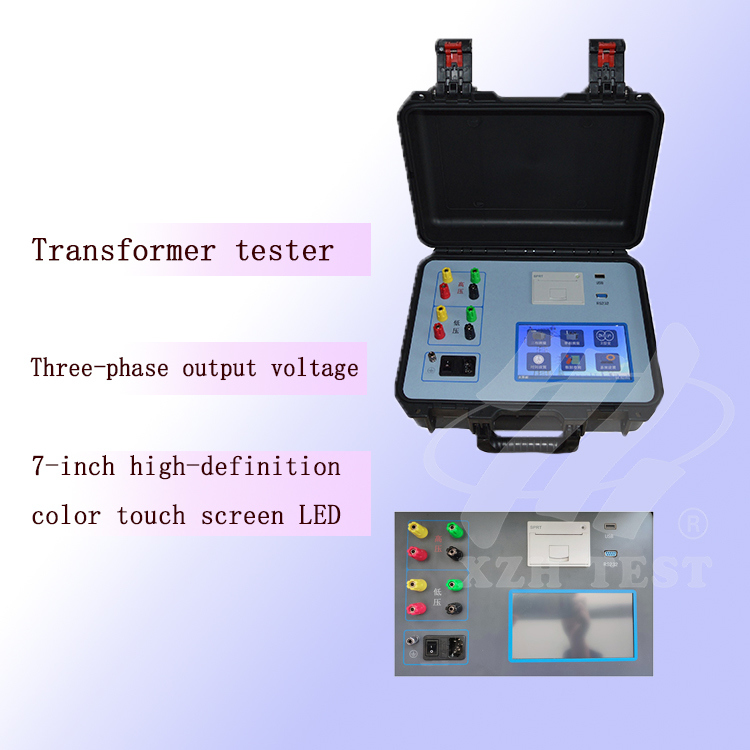

Customization XHBB128B Three-Phase Transformer TTR Turns Ratio Tester 0.9-10000 Range

Product Details:

Detail Information

Model NO.:

XHBB128B

Trademark:

XZH TEST

Origin:

China Xi′an

HS Code:

9031809090

Supply Ability:

100 Pieces /Year

Customization:

Available

After-sales Service:

Warranty Certificate

Warranty:

Warranty Certificate

Product Description

Transformer turn ratio tester(TTR)

The turns ratio or voltage ratio test of the running transformer can check the correctness of the turns ratio of the transformer, the condition of the tap changer, whether the transformer is short-circuited between turns, and whether the transformer can operate in parallel. The operation is simple and intuitive. It adopts a three-phase precision inverter power supply, and the test is fast and accurate. It can test both single-phase and three-phase simultaneously.

For the three-phase transformation ratio test, the transformation ratio value, error, and tap position are automatically calculated. For the three-phase group test, the transformation ratio value, error, tap position, and group number are automatically calculated. In addition, it can also measure the angle between phases.

China Manufacturer Range 0.9-10000 Transformer TTR Turns Ratio Tester Three-Phase Precision Inverter Power Supply

★With Z-type, rectification, grounding, electric furnace, phase shift, balance, Scott, and reverse Scott variable measurement functions.
★With reverse connection protection, turn-to-turn short circuit protection, tap changer failure protection, output full short circuit protection.
★Modular LCD display, Simple operation according to on-screen instructions.
★print output, U disk interface, and RS232 interface, which is convenient for paperless office.
★automatically calculated transformation ratio value, error, tap position, and group number of three-phase group test
★Range:0.9-10000, Resolution:minimum0.0001,Measurement accuracy:±1%+2words(0.9-500),±2%+2words(501-2000),±5%+2words(2001-10000)
★Output voltage:Automatically adjust according to load
★Output current: AC220V±10%   50±1Hz

Number of displayed bit	5 bits
Output voltage	160V(AC power supply)		10V (AC power supply)		Automatic (DC power supply)
Measurement scope	0.9-10000		0.9-500		0.9-5000
Accuracy	<2000	±0.1%	≤150	±0.1%	<1000	±0.1%
	2000-10000	±0.3%	150-500	±0.3%	1000-5000	±0.3%
Minimum resolution	0.0001
Working power supply	AC220V±10%,50/60Hz±1Hz				Lithium battery(Optional)
Memory of testing data	50 groups
Working temperature	-20ºC~40ºC
Relative humidity	≤80%, no dewing
Volume	Length 360mm × width 280mm × height 160mm
Net weight	6kg
