Digital Portable Transformer on-Load Tap-Changer Tester Fast and Accurate

Name: Digital Portable Transformer on-Load Tap-Changer Tester Fast and Accurate
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHYZ1668A
Price: 4,115.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an, Shaanxi, China
Brand Name:	XZH TEST
Certification:	ISO
Model Number:	XHYZ1668A

Detail Information

Place of Origin:

Xi'an, Shaanxi, China

Brand Name:

XZH TEST

Certification:

ISO

Model Number:

XHYZ1668A

Model NO.:

XHYZ1668A

Customized:

Customized

Color:

Yellow

Transport Package:

Wooden Box With Foam Inside

Supply Ability:

1000pieces/Year

Customization:

Available

After-sales Service:

Warranty Certificate

Warranty:

1 Year

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

wooden case

Delivery Time:

5-8 days

Payment Terms:

T/T

Supply Ability:

1000 PCS/Year

Product Description

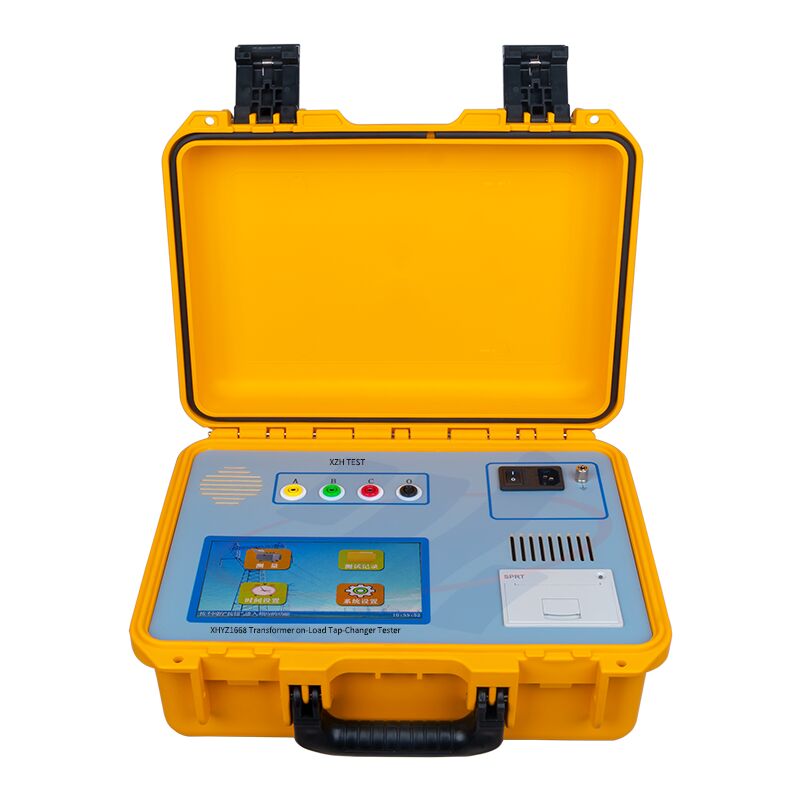

XZH TEST Digital Portable Transformer on-Load Tap-Changer Tester Fast and Accurate

The on-load tap-changer is the only moving part that is connected to the transformer circuit, so the detection of the on-load tap-changer is getting more and more attention. In the "Procedures for Handling and Preventive Tests for Electrical Equipment", it is required to check the sequence of actions and the switching time of the on-load tap-changer.
The XHYZ1668A transformer on-load tap-changer tester is mainly used to measure the transition waveform, transition time, transient resistance value, and three-phase synchronization of the on-load tap-changer.

1. The instrument has large output current and its weight is light;
2. Two-stage current output, wider test range and higher stability;
3. Can automatically calculate the transition resistance value and transition time;
4. It has perfect protection circuit and strong reliability;
5. 5.7-inch large LCD display, it's easy for on-site operation;
6. U disk storage function, can store more waveforms data .
7. The keyboard and one-button shuttle are operated independently, which makes the instrument more convenient to operate.

Output current	1.0A,0.5A,0.2A
Test range	Transition resistance: 0.3Ω~20Ω(1.0A) 5Ω~40Ω(0.5A) 20Ω~100Ω(0.2A) Transition time: 0~320ms
Open circuit voltage	24V
Test accuracy	Transition resistance: ± (5% reading ±0.1Ω) Transition time: ± (0.1% reading ±0.2ms)
Sampling rate	20kHz
Storage mode	local storage
Ambient temperature	-10 ° C ~ 50 ° C
Ambient humidity	≤85%RH
Working power supply	AC220V±10%
Power frequency	50±1Hz
Size	host: 360290170 (mm) wiring box:360290170(mm)
Weight	host 6.15KG , wiring box4.55KG
