Transformer Testing Large Output Current Tap Changer

Name: Transformer Testing Large Output Current Tap Changer
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHYZ1668
Price: 4,115.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an, Shaanxi, China
Brand Name:	XZH TEST
Certification:	CE, ISO
Model Number:	XHYZ1668

Detail Information

Place of Origin:

Xi'an, Shaanxi, China

Brand Name:

XZH TEST

Certification:

CE, ISO

Model Number:

XHYZ1668

Model NO.:

XHYZ1668

Customized:

Customized

Trademark:

XZH TEST

Origin:

China Xi′an

HS Code:

854320100

Supply Ability:

100 Pieces /Year

Customization:

Available

After-sales Service:

Warranty Certificate

Warranty:

Warranty Certificate

Highlight:

High Light

Highlight:

transformer tester large output current

tap changer transformer tester

transformer testing equipment with warranty

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

wooden packaging

Delivery Time:

5-8 days

Payment Terms:

T/T

Supply Ability:

2000 units per month

Product Description

XHYZ1668 On-Load Tap Switch Tester Output Current 0.2A Suitable for Various Applications

Introduction

The on-load tap-changer, being the sole moving component connected to the transformer circuit, has increasingly become a focal point for detection. This instrument is designed to measure the transition waveform, transition time, transient resistance value of the on-load tap changer of a transformer, as well as three-phase consistency. It is highly intelligent, featuring an all-English menu with simple operation. Compact in size, lightweight, and with strong anti-interference capabilities, this instrument significantly reduces the labor intensity for on-site workers. It is an ideal tool for power generation and supply units, as well as transformer manufacturers, to ensure safe production and enhance product quality.

Features

The instrument has a large output current and is light in weight;
Test YN, Y, △ transformers, and the resistance value can be displayed directly without conversion;
It can be measured with and without windings;
Waveform display automatically adjusts the amplitude of resistance and time value according to the sampled value
It has a complete protection circuit and strong reliability;
Large 7-inch LCD display, convenient for on-site operation;
500 sets of data can be automatically saved internally.

Technical indicators

Output current	1.0A, 0.5A
Test range	Transition resistance: 0.5Ω~20Ω(1.0A), 0.5Ω~40Ω(0.5A)
Test range	Transition time: 0 ~ 250ms
Test accuracy	Transition resistance: ± (5% reading + 3 words)
Test accuracy	Transition time: ± (0.1% reading + 3 words)
Storage mode	U disk storage, local storage
Ambient temperature	-10 ° C ~ 50 ° C
Ambient humidity	≤85%RH
Working power supply	AC220V±10%
Power frequency	50±1Hz
Size	345 × 295 × 175mm
Weight	5kg

Packing list

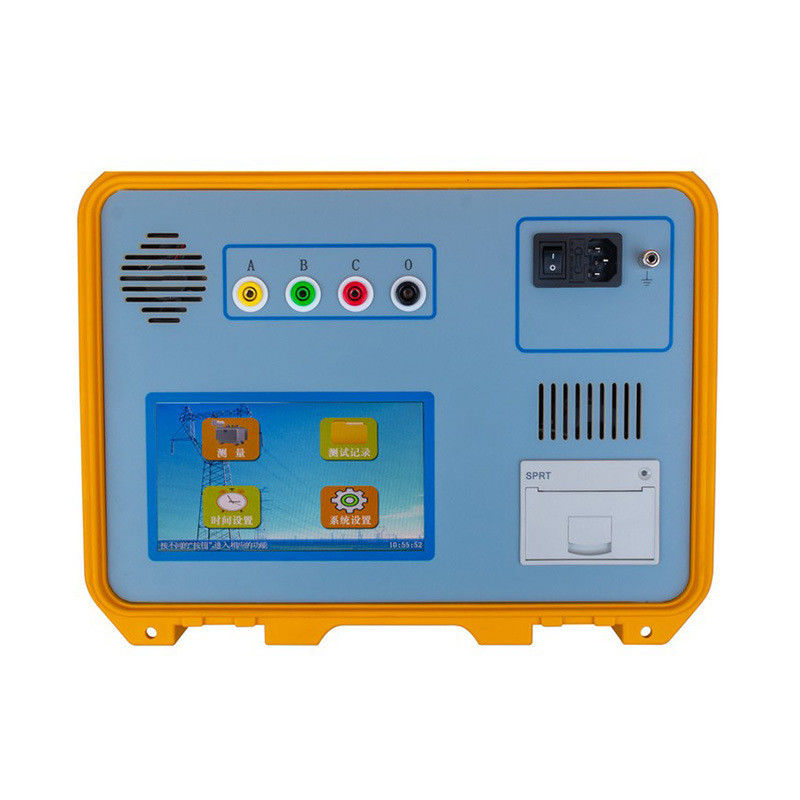

Transformer Testing Large Output Current Tap Changer 0

Product Details

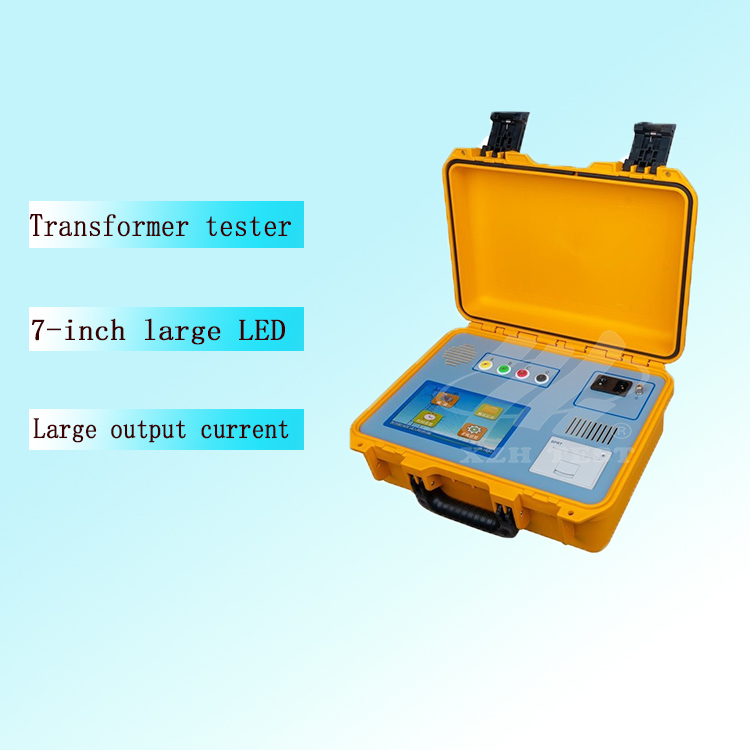

Transformer Testing Large Output Current Tap Changer 1

Transformer Testing Large Output Current Tap Changer 2
