Customization Insulation Oil Dissipation Factor and Resistivity Measuring System

Name: Customization Insulation Oil Dissipation Factor and Resistivity Measuring System
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHYS101
Price: 4,115.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	ISO/CE
Model Number:	XHYS101

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

ISO/CE

Model Number:

XHYS101

Model NO.:

XHYS101

Specification:

350mm*280mm*380mm

Trademark:

XHYS101

HS Code:

8543201000

Supply Ability:

2000pieces/Year

Package Size:

35.00cm * 28.00cm * 38.00cm

Package Gross Weight:

25.000kg

Customization:

Available

After-sales Service:

Technical Support

Warranty:

1 Year

Highlight:

High Light

Highlight:

custom insulation oil tester

dissipation factor measuring system

resistivity transformer tester

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

wooden case

Delivery Time:

5-8 days

Payment Terms:

T/T

Supply Ability:

2000 PCS/Year

Product Description

Customization XHYS101 Insulation Oil Dissipation Factor and Resistivity Measuring System

Basic Info.

Model NO.

XHYS101

Transport Package

Wooden

Trademark

XZH TEST

Origin

China Xi'an

HS Code

854320100

Production Capacity

100 Pieces /Year

Product Description

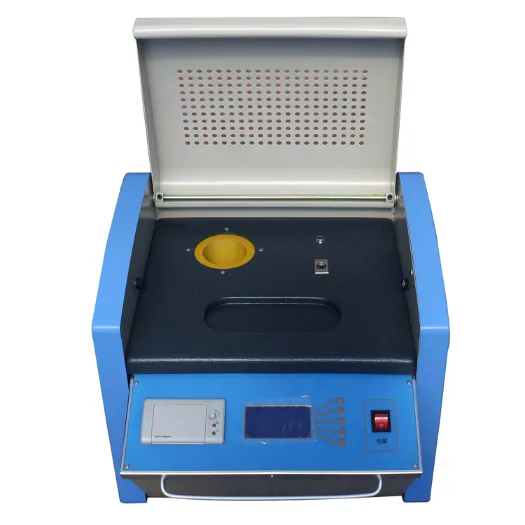

XHYS101 insulating oil dielectric loss tester is mainly used for power equipment insulation in the liquid, dielectric constant and dielectric loss value of volume resistivity measurement. This instrument adopts single-chip computer technology, automatic complete heating, temperature control, data sampling, calculation, display, printing and storage process. Advanced measuring principle and digital technology make your job easy and convenient.

Main feature:

1. Highly automated, heating, dielectric loss measurement, measuring resistivity can be a complete;

2. The Swiss TETTEX advanced technology, ensure the data accurate and reliable.

3. Have open power, high and low voltage circuit, air heater burning etc

4. Temperature control, integration of test structure, rational layout, easy to operate.

5. PID temperature control, intermediate frequency induction heating, each sample temperature should be about 15 minutes.

6. Automatic storage 128 groups of data, bring their own calendar, automatic print measurement results.

Product Name	dielectric dissipation tester
Range	electric capacity: 1pF~200pF Dielectric Loss: 0~100% Resistivity: 10M~10T
Precision:	electric capacity: 0.5% + 1pF Dielectric Loss: 1% + 0.0002 Resistivity: 10% Temperature: ± 1 ºC
Resolution ratio:	electric capacity: 0.01pF Dielectric Loss: 10-5 Resistivity: 0.1M
Output voltage:	dielectric loss: AC 2000V Resistivity: DC 500V
Power:	1000W
Working power supply:	AC220V ± 10% (50±1) Hz
Temperature:	0~40ºC
Humidity:	<80RH

Customization Insulation Oil Dissipation Factor and Resistivity Measuring System 0
