XHGX501C1

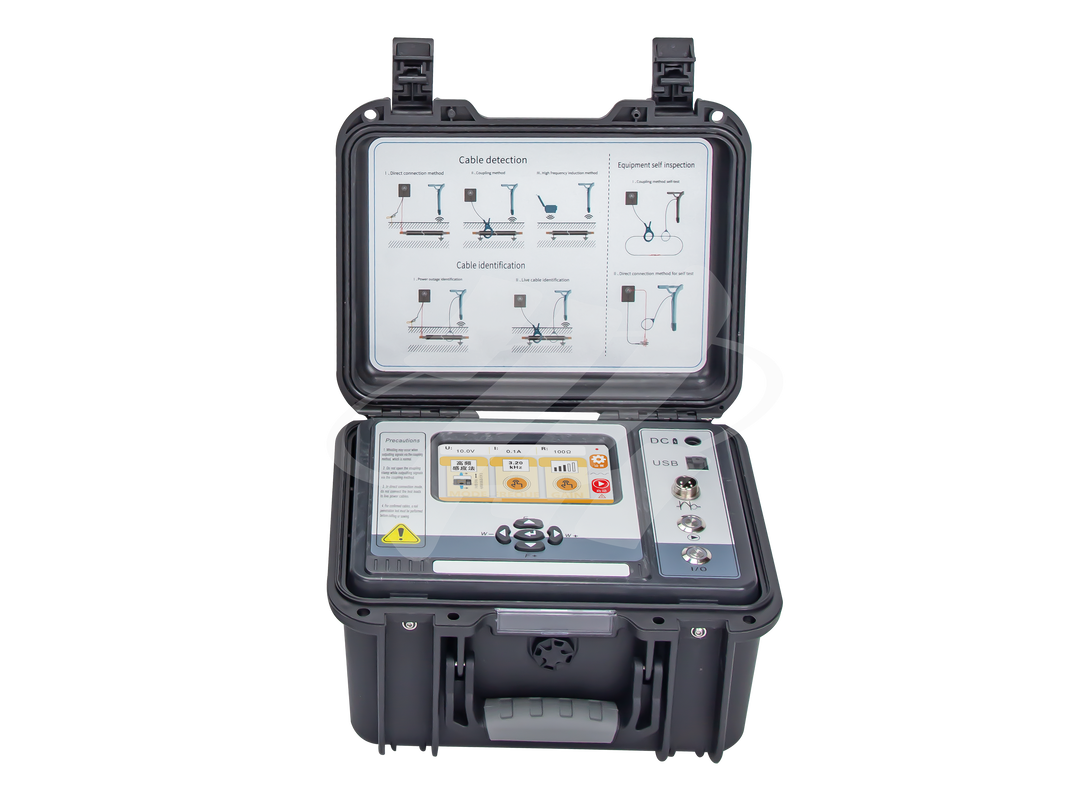

This high-performance integrated pipeline detector realizes pipeline tracing, cable identification and fault location with precise depth measurement. Equipped with a transmitter, receiver, current clamps, test leads and optional A-frame, it adopts multi-filtering anti-interference technology for trenchless detection of underground metal pipes and cables. Ideal for pipeline inspection, maintenance, municipal construction and power engineering, it is indispensable equipment for pipeline maintenance teams.

Product Features

• The device is equipped with multiple active detection frequencies and integrates four types of signal output modes, enabling it to adapt to various on-site inspection scenarios.
• Equipped with multiple visualization modes, it supports dual-method burial depth calculation, offers a maximum detection depth of 20 meters, and effectively distinguishes signal interference from parallel pipelines.
• Equipped with a large-diameter flexible Rogowski coil, it allows for the batch pre-storage of twenty sets of cable calibration parameters and employs a dual-verification method to identify the target cable, thereby mitigating safety risks.
• When paired with the optional A-frame, it utilizes the step-voltage method to accurately pinpoint various types of underground pipeline grounding faults.
• Utilizing a narrowband digital sampling and multi-stage digital filtering architecture, it effectively suppresses power-frequency and harmonic electromagnetic interference, ensuring stable detection performance even in complex environments.
• The unit comes equipped with a complete set of standardized inspection accessories, supports trenchless operations, and covers the full spectrum of pipeline network surveys and maintenance.
• The transmission unit supports a 15W power output with nine adjustable levels and a maximum output of 300V in direct-connection mode, featuring fully automatic impedance matching as well as overload and short-circuit protection.
• Features built-in sweep-frequency interference detection; supports switching between Chinese and English, as well as customizable screen brightness and standby duration; easy to maintain and features a user-friendly interface.

Product Structure

                  1,Transmitter DC charging port          7,Receiver USB and charging port

                                   2,Transmitter USB port                     8,Receiver signal output port

                                   3,Transmitter output port                  9,Receiver LCD display

                                   4,Transmitter test start button          10,Receiver buttons

                                   5,Transmitter power switch               11,Receiver handle

                                   6,Transmitter buttons                       12,Receiver speaker
