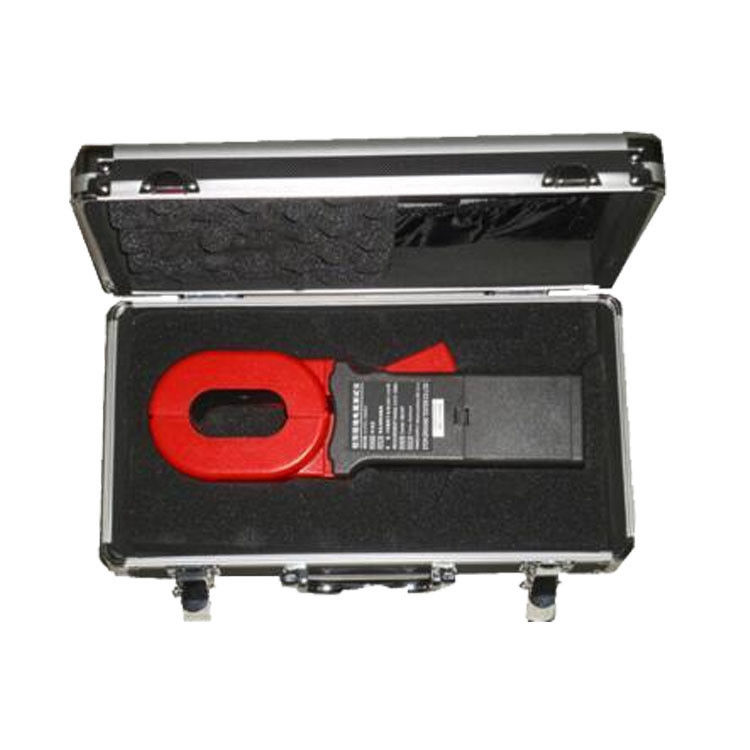

Single Jaw Ground Resistance Tester for Ground Loop Resistance Measurement

Name: Single Jaw Ground Resistance Tester for Ground Loop Resistance Measurement
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDQ703
Price: 440.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an, Shaanxi, China
Brand Name:	XZH TEST
Certification:	ISO,CE
Model Number:	XHDQ703

Detail Information

Place of Origin:

Xi'an, Shaanxi, China

Brand Name:

XZH TEST

Certification:

ISO,CE

Model Number:

XHDQ703

Model NO.:

XHDQ703

Trademark:

XZH TEST

HS Code:

854320100

Supply Ability:

1000 Pieces /Year

Customization:

Available

After-sales Service:

Warranty Certificate

Highlight:

High Light

Highlight:

single jaw ground resistance tester

ground loop resistance measurement tool

ground tester with warranty

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

wooden case

Delivery Time:

5-8 days

Payment Terms:

T/T

Supply Ability:

1000 PCS/Year

Product Description

XHDQ703

Main Feature

Ground resistance tester and loop resistance tester.

More safer and faster when test loop resistance system, No need to disconnect the ground wire and without auxiliary electrode.

Short boot time, Self just 0.5 seconds, boot instantaneously.

Automatically identify Interference signal, automatic transmission.

Sound and light alarms, RS232 interface

Main Specifications

Power Supply: 6VDC, 4 PCS of AA Alkaline batteries

Resistance Range: 0.01-1200Ω

Resistance Resolution: 0.001Ω

Resistance Accuracy: ±1%±0.01Ω

Data memory : 99 Sets

Alarm Threshold Setting Range Resistance: 1-199Ω

Working Temperature and Humidity: -20°C-55°C; 20%RH-90%RH

LCD Screen: 4 Digits LCD display; Screen L×W: 47mm×28.5mm

Clamp Size: 65mm×32mm

Clamp Opening: Extent 32mm

Weight: 1160g (With batteries)

Dimension : 285mm×85mm×56mm

Test Function	Range	Accuracy	Resolution
2,3,4 wire method for measuring ground resistance (Re)	0.00Ω~29.99Ω	±2%rdg±5dgt(remark 1)	0.01Ω
	30.0Ω~299.9Ω	±2%rdg±3dgt	0.1Ω
	300Ω~2999Ω		1Ω
	3.00kΩ~30.00kΩ		10Ω
DC resistance(Re)	0.0Ω~299.9Ω	±2%rdg±3dgt	0.1Ω
	300Ω~2999Ω		1Ω
	3.00kΩ~30.00kΩ		10Ω
Selection method for measuring ground resistance(Re)	0.00Ω~29.99Ω	±2%rdg±5dgt(remark 1)	0.01Ω
	30.0Ω~299.9Ω	±2%rdg±3dgt	0.1Ω
	300Ω~3000Ω	±2%rdg±3dgt	1Ω
Double clamp method for measuring ground resistance (Re)	0.01Ω~0.99Ω	±10%rdg±10dgt	0.01Ω
	1.0Ω~9.9Ω		0.1Ω
	10Ω~100Ω		1Ω
Soil resistivity(ρ)	0.00Ωm~99.99Ωm	ρ=2πaR (2)	0.01Ωm
	100.0Ωm~999.9Ωm		0.1Ωm
	1000Ωm~9999Ωm		1Ωm
	10.00kΩm~99.99kΩm		10Ωm
	100.0kΩm~999.9kΩm		100Ωm
	1000kΩm~9999kΩm		1kΩm
Ground voltage	AC 0.00~100.0V	±2%rdg±3dgt	0.01V
AC current	AC 0.0mA~1000A	±2%rdg±3dgt	0.1mA
