Primary Current Injection Test Set for Large Current Generator in Xzh Test Transformer

XHDL series of Primary current injection test set

Product Introduction

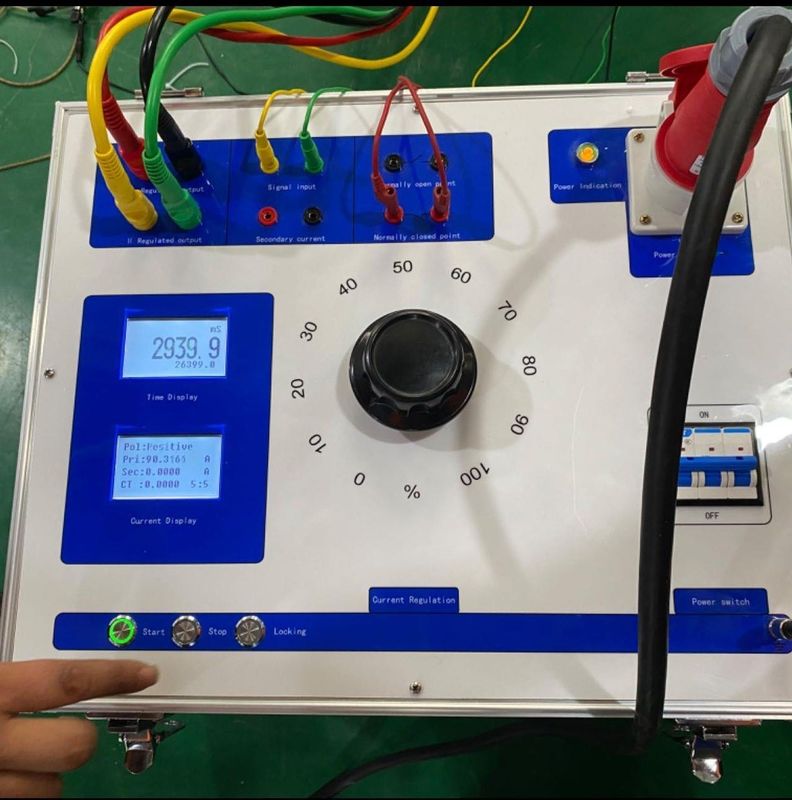

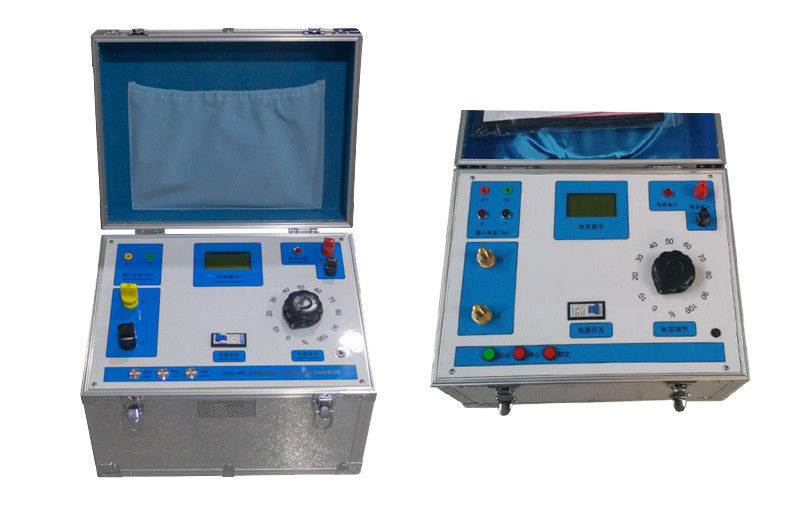

XHDL - 400 high current generator (hereinafter referred to as heat flow device), the test equipment developed by our company, it combines the advantages of similar products at home and abroad in one, USES the numerical control technology, strong anti-jamming capability, compared with the generation of heat flow device with low power consumption, large capacity of the lotus root voltage regulator and high permeability core current transformer, has big output power, small volume, Light weight and other advantages.

Mainly used for primary bus protection and various current transformer ratio test items, is widely used in electric power, railway, petrochemical, metallurgical and mining enterprises scientific research, production and electrical test site.


Performance characteristics

1.Using beautiful and generous PVC panel;
2.Direct display of primary current, secondary current test value, easy to observe and record the test;
3.High accuracy 0.5 level;
4.Large power, small size, strong load capacity;
5.Small size, light weight, volume only 30% ~ 70% of similar products, very convenient to carry;
6.Voltage and current six semi-liquid crystal display, higher display accuracy, more accurate experimental results;
7.128*64 dot matrix LCD display, display data more intuitive, faster reading;
8.Instrument display lock function, especially for transformer changes than the experiment can be more accurate and faster reading;
9.Polarity measurement, automatic polarity measurement of the transformer, without a separate experiment;
10.New self-lock function;
11.Change ratio automatic detection function.

Technical data



Name	XHDL-400 high current generator.
Input voltage	AC220V ±10%
Power rate	5KVA
Output current	AC0 ~ 400A stepless adjustable, panel with digital display ammeter
Output voltage	5V
Output current mode	true RMS continuously adjustable;
Current stability	0.2%
Structural form:	integrated
Wiring mode	according to the requirements
Current stability	0.2%;
Protection Settings	over current and overvoltage;
