35kV Portable DC Hipot Tester for Cable Fault Detection
35kV Portable DC Hipot Tester for Cable Fault Detection
  • 35kV Portable DC Hipot Tester for Cable Fault Detection
  • 35kV Portable DC Hipot Tester for Cable Fault Detection
  • 35kV Portable DC Hipot Tester for Cable Fault Detection

35kV Portable DC Hipot Tester for Cable Fault Detection

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHHV508-5
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHHV508-5
Highlight:

High Light

Highlight:

35kV portable DC hipot tester

,

DC hipot tester for cable fault

,

portable cable fault detection tester

Trading Information
Minimum Order Quantity:
1 unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
1000 units per year
Product Description
High Precision and High Stability AC/DC Hipot Tester
The XHHV508-5 DC high voltage power supply is designed for impulse discharge during cable fault testing at voltage levels up to 35kV, as well as DC withstand voltage testing of various electrical equipment. This innovative solution replaces traditional heavy test transformers and control boxes, offering superior portability and performance.

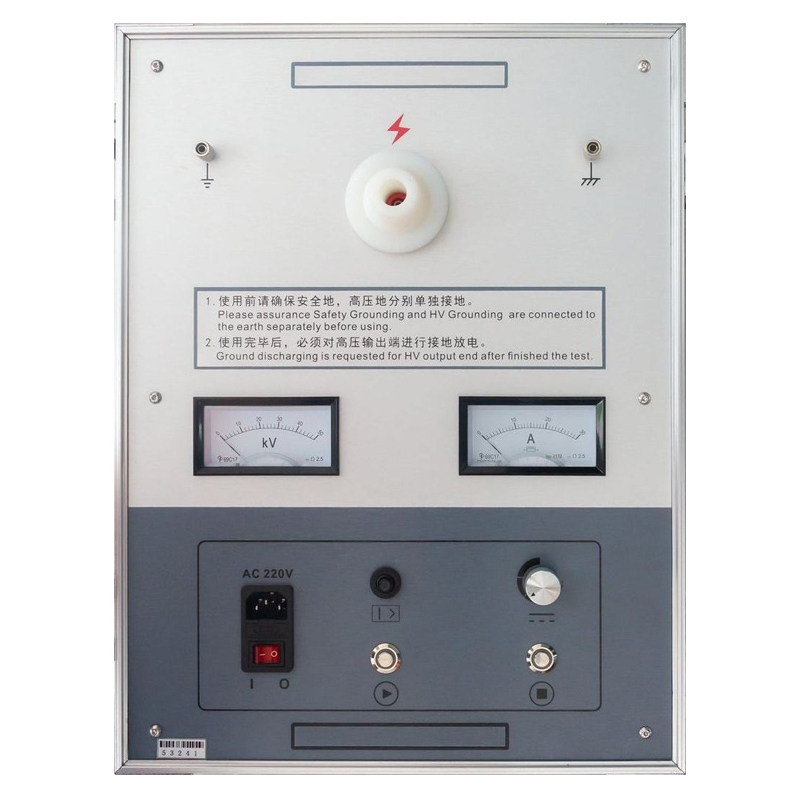

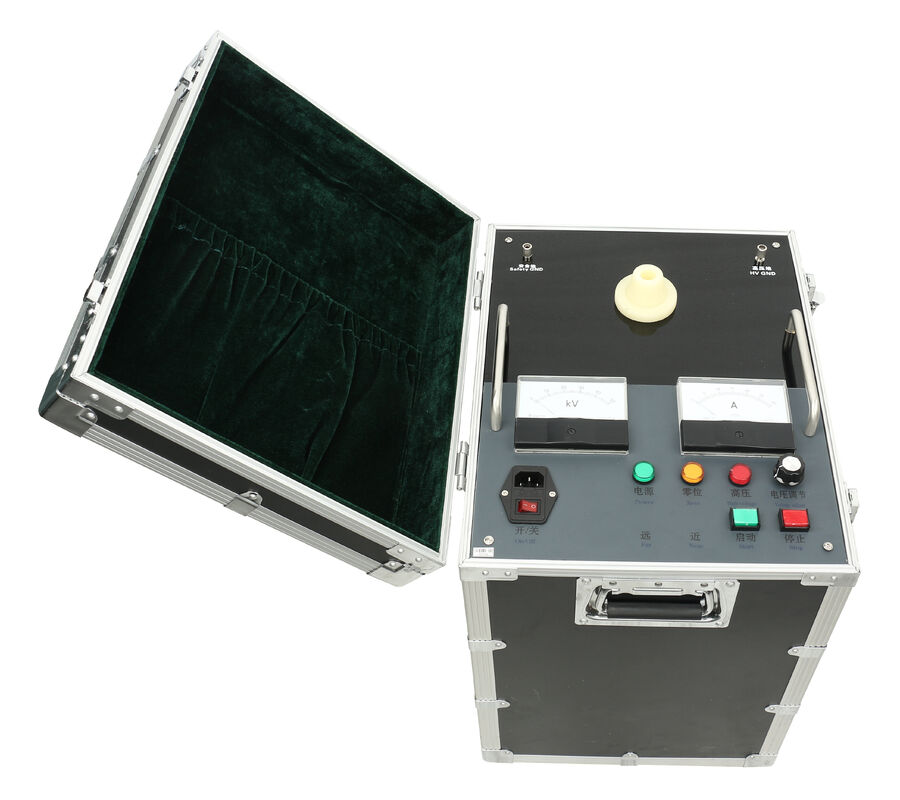

35kV Portable DC Hipot Tester for Cable Fault Detection 0 35kV Portable DC Hipot Tester for Cable Fault Detection 1
Key Features
  • ★ Comprehensive protection with over-current, over-voltage, and over-heating safeguards
  • ★ Uniform impact discharge with controllable discharge speed
  • ★ Advanced short-circuit protection allows direct grounding of high-voltage output
  • ★ Dual 1.5-level pointer meters for clear current and voltage display
  • ★ High-voltage side voltage measurement for real-time accuracy
  • ★ Zero-position start protection for enhanced safety
  • ★ Automatic self-discharge system when high-voltage output is cut
  • ★ Real-time capacitor voltage indication in stopped state
Technical Specifications
Parameter Value
Impact high voltage 0~35kV (optional)
Short circuit current 320mA
High voltage division accuracy 1.5 level
External capacitor 2μF~4μF
Impact time 1~8 seconds
Impact power 500W
Over temperature protection 85ºC
Dimensions 400mm (L) × 310mm (W) × 320mm (H)
Weight 12kg
Power supply AC 220V±10%, 50Hz±2Hz
Operating temperature -20~+50ºC
35kV Portable DC Hipot Tester for Cable Fault Detection 2
This ultra-light portable DC impact high-voltage equipment represents the most advanced solution for power cable fault detection, combining exceptional performance with user-friendly operation and robust safety features.
