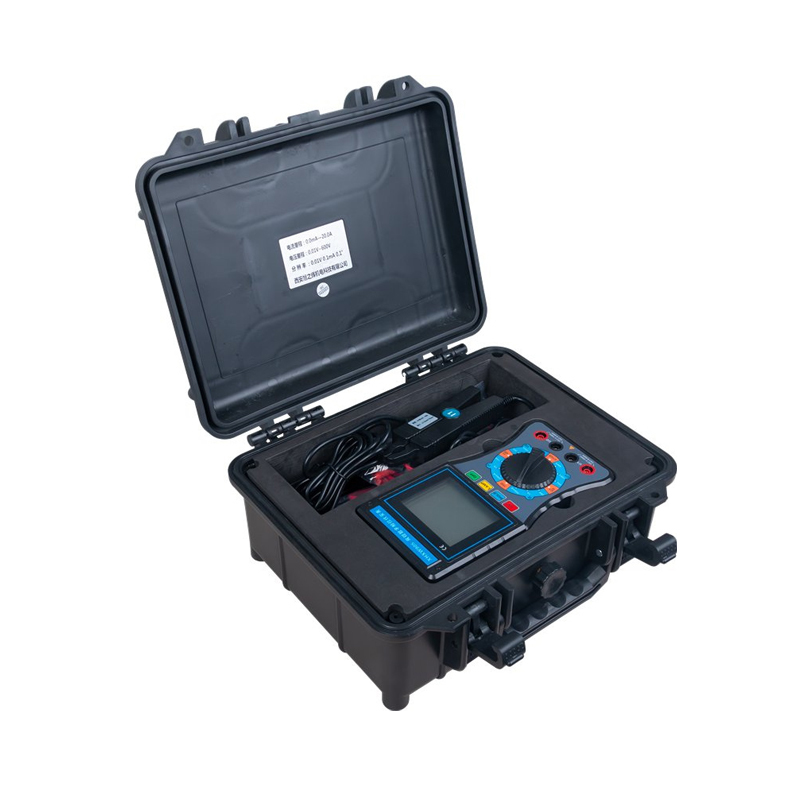

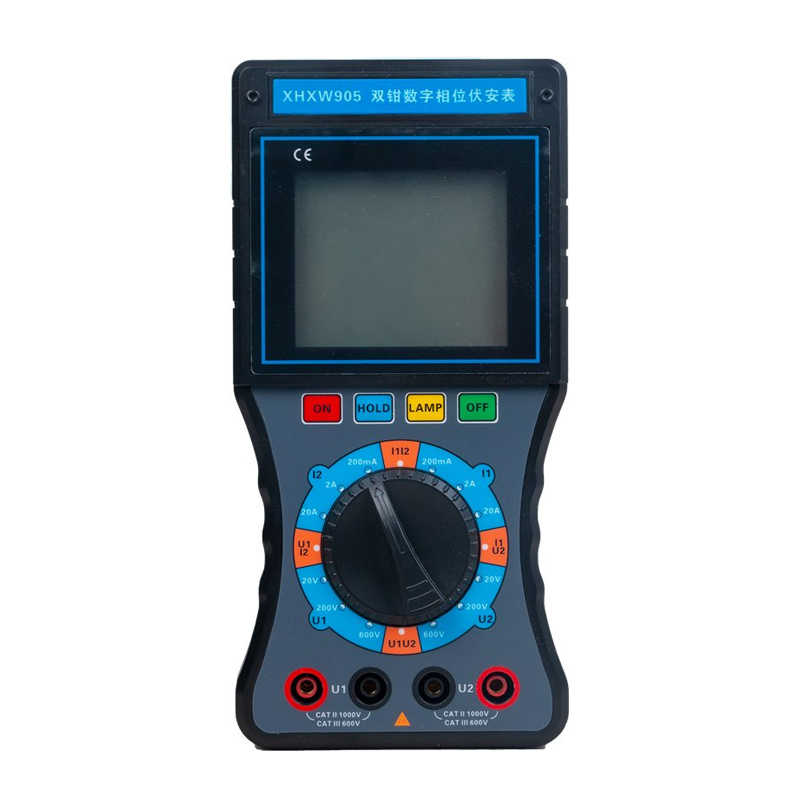

XHXW905 Double-Clamp Phase Voltammeter for Cable Fault Locator
XHXW905 Double-Clamp Phase Voltammeter for Cable Fault Locator
  • XHXW905 Double-Clamp Phase Voltammeter for Cable Fault Locator
  • XHXW905 Double-Clamp Phase Voltammeter for Cable Fault Locator
  • XHXW905 Double-Clamp Phase Voltammeter for Cable Fault Locator
  • XHXW905 Double-Clamp Phase Voltammeter for Cable Fault Locator
  • XHXW905 Double-Clamp Phase Voltammeter for Cable Fault Locator

XHXW905 Double-Clamp Phase Voltammeter for Cable Fault Locator

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHXW905
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHXW905
Highlight:

High Light

Highlight:

double-clamp phase voltammeter

,

cable fault locator voltammeter

,

phase voltammeter with double-clamp

Trading Information
Minimum Order Quantity:
1 Unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
1000 units per year
Product Description
Double-Clamp Phase Voltammeter
Identify Transformer Wiring and Test Protection Systems for Cable Fault Locator
XHXW905 Double-Clamp Phase Voltammeter for Cable Fault Locator 0
The XHXW905 double-clamp phase voltammeter is a fully automatic, multi-functional digital instrument designed for on-site testing. This upgraded model simplifies operation while reducing errors, featuring high precision, stability, low power consumption, and user-friendly operation.
Key Features
  • Simultaneously measures two AC voltages, currents, and phase relationships
  • Measures frequency, phase sequence, and power parameters (active, reactive, apparent)
  • Identifies transformer wiring groups and tests protection systems
  • Verifies watt-hour meter connections and analyzes line equipment
  • 240×160 dot LCD display with all parameters visible at once
  • USB-RS232 interface with 1500 data point storage capacity
  • Two clamp specifications for different wiring environments
  • Anti-vibration, anti-skid design with high-insulation sheath
Technical Specifications
Function Measures AC voltage, current, phase relationships, frequency, power parameters, and analyzes electrical systems
Power Supply DC9V Alkaline dry battery (1.5V AA×6)
Measuring Range Voltage: 0.00V~600V
Current: 0.0mA~20.0A
Phase: 0.0°~360.0°
Frequency: 45.00Hz~65.00Hz
Jaw Size Small-pointed clamp: 7.5mm×13mm
Round clamp: 35mm×40mm
Resolution Voltage: 0.01V
Current: 0.1mA
Phase: 0.1°
Frequency: 0.01Hz
Data Storage 1500 measurement sets
Interface USB-RS232 for data transfer to PC
Power Consumption Backlight on: 70mA (14 hours)
Backlight off: 40mA (20 hours)
Dimensions 196mm × 92mm × 54mm
Measurement Rate Approximately 2 seconds per reading
Safety Standards IEC61010-1 CAT III 600V, IEC61010-031, IEC61326
Additional Features
  • Data hold function with "HD" display indicator
  • Automatic shutdown after 15 minutes of inactivity
  • Backlight for low-light conditions
  • Low battery voltage indicator
  • Double insulation with anti-vibration jacket
  • Test lead length: 1.5m
  • Current clamp wire length: 2m
The XHXW905 provides electrical inspectors with a safe, accurate, and convenient solution for comprehensive power system analysis and maintenance.
